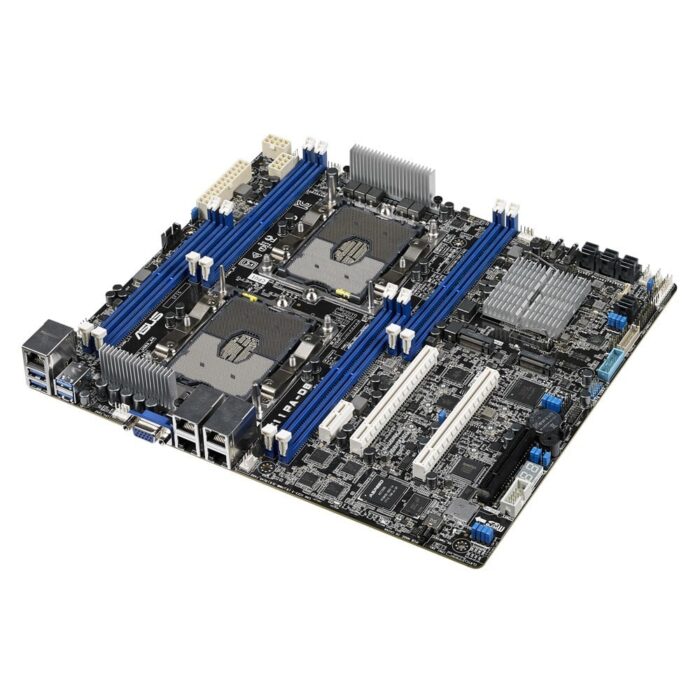

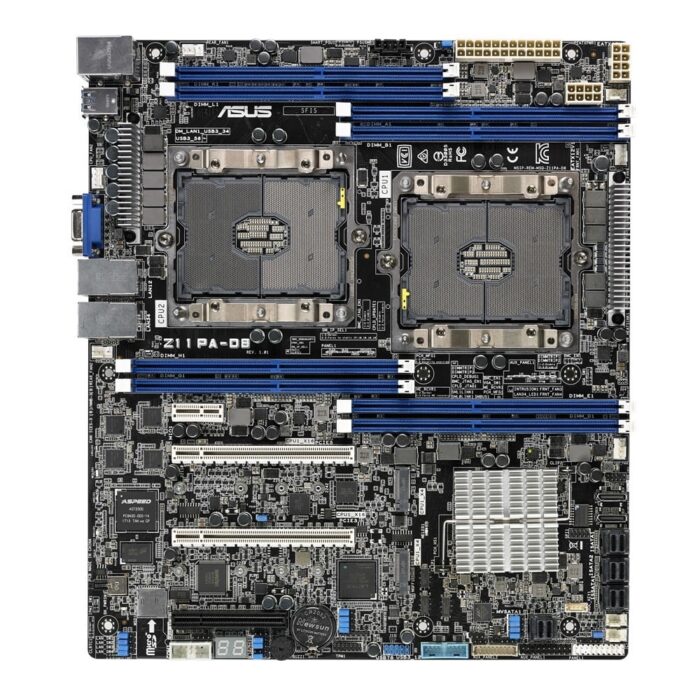

ASUS Z11PA-D8 LGA 3647 Socket P SSI CEB

The ASUS Z11PA-D8 motherboard is equipped with an Intel processor and features an LGA 3647 (Socket P). It supports DDR4-SDRAM memory types and allows for a maximum internal memory capacity of 1.02 TB, operating at a memory voltage of 1.2 V. For storage, it supports SATA III drive interfaces and can be configured with RAID levels 0, 1, 5, and 10. The on-board graphics card model is the Aspeed AST2500, which includes 64 MB of memory. Networking capabilities include a Gigabit Ethernet interface, powered by the Intel® I210-AT LAN controller.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 3647 (Socket P)
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
8
show more


Memory voltage
Memory voltage
1.2 V
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2666 MHz
show more


Maximum internal memory
Maximum internal memory
1.02 TB
show more


Maximum RDIMM memory
256 GB
show more

Storage controllers

Supported storage drive interfaces
SATA III
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Graphics

On-board graphics card memory
64 MB
show more


On-board graphics card model
On-board graphics card model
Aspeed AST2500
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
1
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
16
show more


CPU fan connector
Yes
show more


Chassis intrusion connector
Yes
show more


Serial port headers
1
show more


TPM connector
Yes
show more

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
4
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Intel® I210-AT
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard form factor
Motherboard form factor
SSI CEB
show more

Expansion slots

PCI Express x8 slots
1
show more


PCI Express x16 slots
2
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more


Storage relative humidity (H-H)
20 – 90%
show more

Packaging data

Package weight
Package weight
2.32 kg
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
305 mm
show more


Depth
Depth
267 mm
show more

Other features

Supported LRDIMM module capacity
32GB, 64GB
show more


Maximum LRDIMM memory
512 GB
show more


Supported RDIMM module capacity
4GB, 8GB, 16GB, 32GB
show more


Weight
Weight
1.24 kg
show more


Number of processors supported
Number of processors supported
2
show more


Number of DIMM slots
Number of DIMM slots
8
show more
