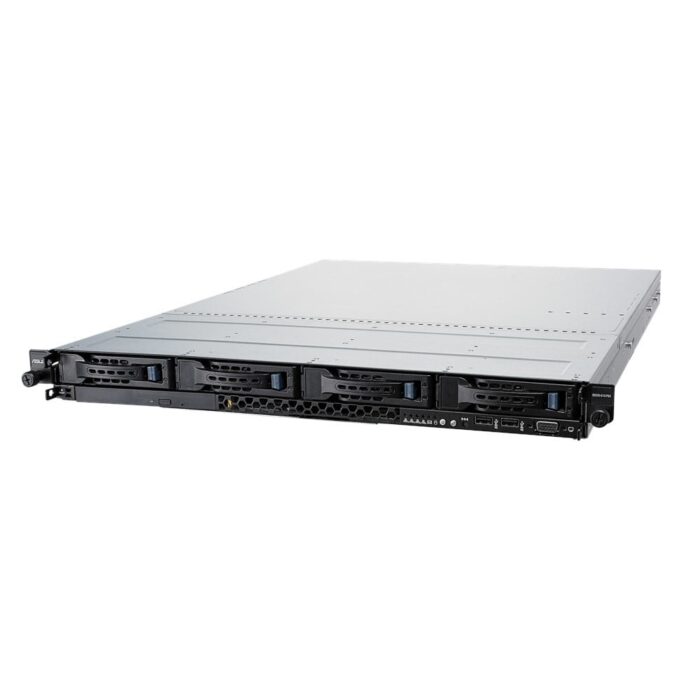

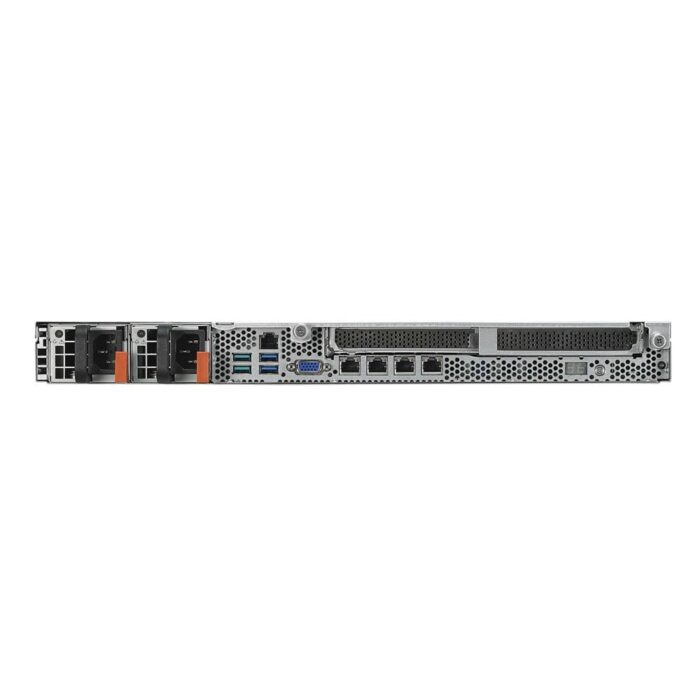

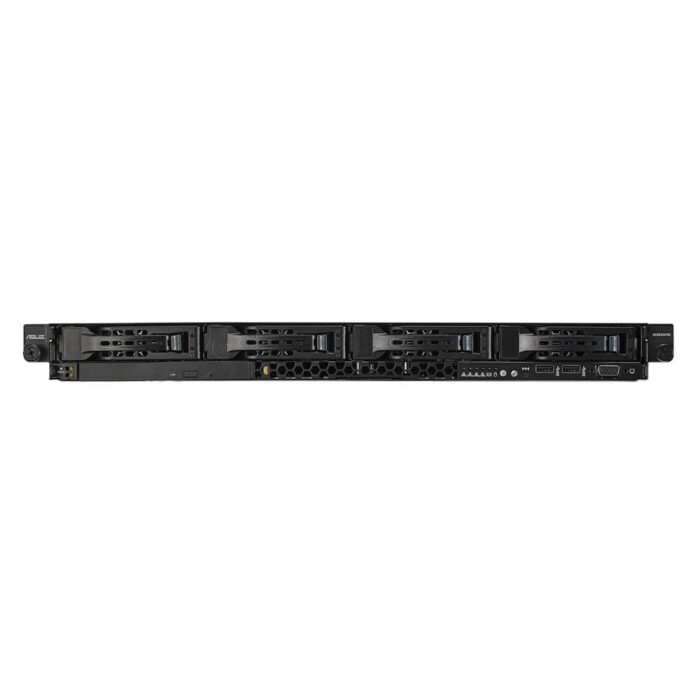

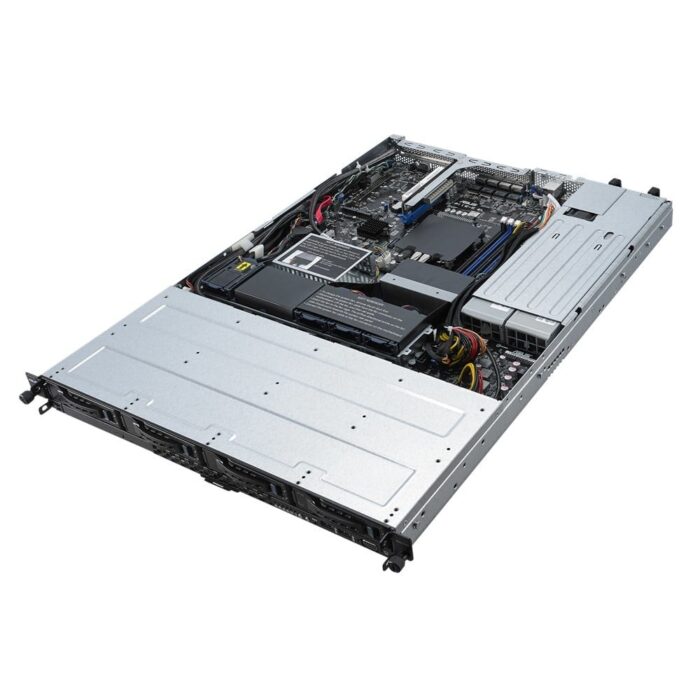

ASUS RS300-E10-RS4 Intel C242 LGA 1151 (Socket H4) Rack 1U Black, Metallic

The ASUS RS300-E10-RS4 is a motherboard featuring the Intel C242 chipset and an LGA 1151 (Socket H4) processor socket. It is compatible with Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, and Intel® Xeon® processor series. This motherboard supports DDR4-SDRAM memory types and DIMM module capacities of 4GB, 8GB, and 16GB, with a maximum internal memory capacity of 64 GB. It accommodates storage drive sizes of 2.5, 3.5, and M.2, supporting storage drive interfaces including M.2 and Serial ATA III, with RAID levels of 0, 1, 5, and 10. The on-board graphics card is the Aspeed AST2500 with 64 MB of memory. It includes a Gigabit Ethernet interface with Ethernet LAN data rates of up to 1000 Mbit/s, powered by an Intel I210 LAN controller.

Processor

Built-in processor
Built-in processor
No
show more


Motherboard chipset
Motherboard chipset
Intel C242
show more


Processor socket
Processor socket
LGA 1151 (Socket H4)
show more


Number of processors supported
Number of processors supported
1
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®
show more

Memory

Number of DIMM slots
Number of DIMM slots
4
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Supported DIMM module capacities
4GB, 8GB, 16GB
show more


Maximum internal memory
Maximum internal memory
64 GB
show more


Maximum UDIMM memory
64 GB
show more


Supported UDIMM clock speeds
2400,2666 MHz
show more


Non-ECC
Yes
show more


ECC
ECC
Yes
show more

Storage

Number of storage drives supported
Number of storage drives supported
4
show more


Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Storage drive sizes supported
Storage drive sizes supported
2.5,3.5,M.2
show more


Supported storage drive interfaces
M.2, Serial ATA III
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2500
show more


On-board graphics card memory
64 MB
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
1000 Mbit/s
show more


LAN controller
Intel I210
show more

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
4
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


COM ports quantity
1
show more


Number of SATA III connectors
Number of SATA III connectors
6
show more

Expansion slots

PCI Express x8 (Gen 3.x) slots
PCI Express x8 (Gen 3.x) slots
1
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
1
show more


Number of M.2 (M) slots
2
show more

Features

Compatible operating systems
Compatible operating systems
Windows Server 2016
RedHat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Vmware
Citrix XenServer
show more

Logistics data

Harmonized System (HS) code
84714100
show more

Design

Chassis type
Chassis type
Rack (1U)
show more


Product colour
Product colour
Black, Metallic
show more


LED indicators
Alarm, HDD, LAN, Power
show more


On/off switch
On/off switch
Yes
show more


Reset button
Yes
show more


Certification
BSMI, CE, C-Tick, FCC(Class A)
show more

Power

Power supply
Power supply
450 W
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


Number of redundant power supplies supported
2
show more


Number of redundant power supplies installed
2
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
47 – 63 Hz
show more


Input current
8 A
show more


80 PLUS certification
80 PLUS Gold
show more

Operational conditions

Storage relative humidity (H-H)
20 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Weight
Weight
12.9 kg
show more


Height
Height
44 mm
show more


Depth
Depth
444 mm
show more


Width
Width
615 mm
show more

Packaging data

Package weight
Package weight
19 kg
