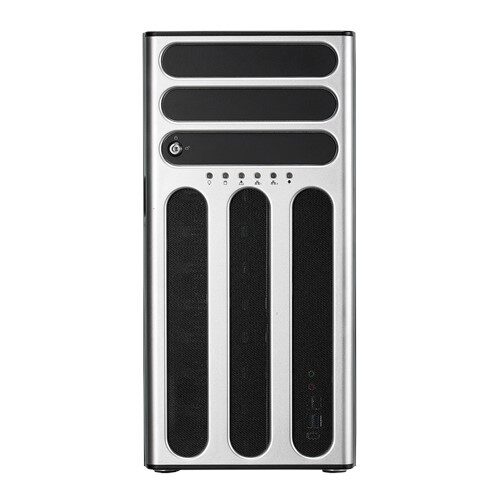

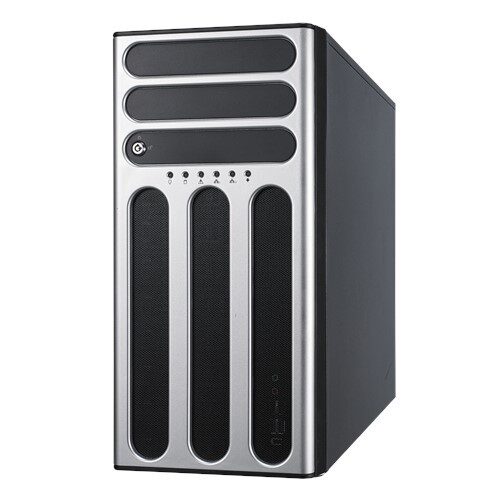

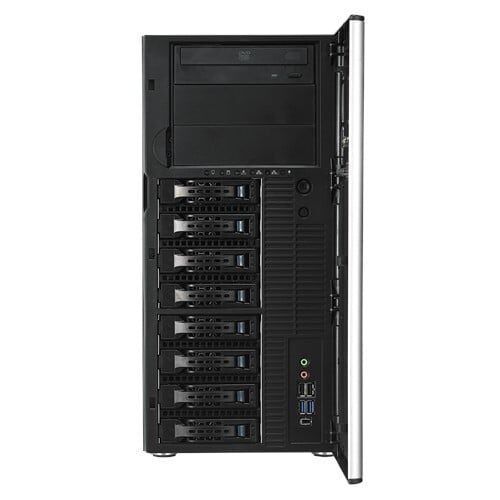

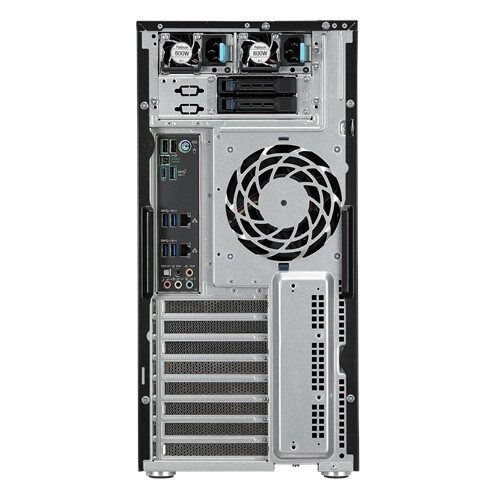

ASUS TS700-E9-RS8 Intel C621 LGA 3647 (Socket P) Tower 5U Black, Grey

The ASUS TS700-E9-RS8 features an Intel C621 motherboard chipset and utilizes the LGA 3647 (Socket P) processor socket. It is designed to accommodate the Intel Xeon Scalable processor family. This system supports DDR4-SDRAM memory types and is compatible with DIMM module capacities of 8GB, 16GB, 32GB, and 64GB, allowing for a maximum internal memory capacity of up to 1.54 TB. For storage, it supports 3.5-inch drive sizes and is compatible with both Serial ATA and Serial Attached SCSI (SAS) storage drive interfaces. The on-board graphics card is the Aspeed AST2500 with 64 MB of memory. Additionally, it includes an Intel I210-AT LAN controller for networking.

Processor

Motherboard chipset
Motherboard chipset
Intel® C621
show more


Processor socket
Processor socket
LGA 3647 (Socket P)
show more


Processor family
Processor family
Intel® Xeon® Scalable
show more


Number of processors supported
Number of processors supported
2
show more


System bus rate
System bus rate
10.4 GT/s
show more

Memory

Number of DIMM slots
Number of DIMM slots
12
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Supported DIMM module capacities
8GB, 16GB, 32GB, 64GB
show more


Maximum internal memory
Maximum internal memory
1.54 TB
show more


Maximum RDIMM memory
768 GB
show more


Supported RDIMM clock speeds
2666,2933 MHz
show more

Storage

Number of storage drives supported
Number of storage drives supported
8
show more


Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Number of 3.5" bays
Number of 3.5
8
show more


Storage drive sizes supported
Storage drive sizes supported
3.5"
show more


Supported storage drive interfaces
Serial ATA, Serial Attached SCSI (SAS)
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2500
show more


On-board graphics card memory
64 MB
show more

Network

LAN controller
Intel® I210-AT
show more

Ports & interfaces

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


S/PDIF out port
S/PDIF out port
Yes
show more

Expansion slots

PCI Express slots version
3.0
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
7
show more

Logistics data

Harmonized System (HS) code
84714100
show more

Design

Chassis type
Chassis type
Tower (5U)
show more


Product colour
Product colour
Black, Grey
show more


LED indicators
Yes
show more


On/off switch
On/off switch
Yes
show more


Certification
BSMI, CE, RCM, FCC(Class A)
show more

Power

Power supply
Power supply
800 W
show more

Operational conditions

Storage relative humidity (H-H)
20 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Weight
Weight
18.3 kg
show more


Height
Height
255 mm
show more


Depth
Depth
545 mm
show more


Width
Width
217.5 mm
show more

Packaging data

Package weight
Package weight
23.1 kg
show more

Other features

Optical drive supported
Yes
show more
