ASUS TS300-E10-PS4 Full-Tower Black, Metallic Intel C246 LGA 1151 (Socket H4)

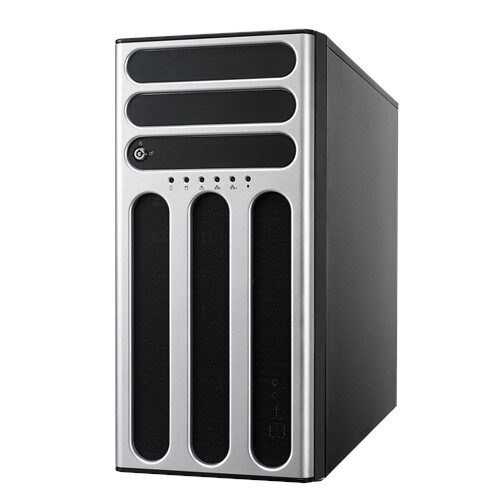

The ASUS TS300-E10-PS4 is a full-tower workstation barebone chassis. It is equipped with an Intel C246 motherboard chipset and features a processor socket LGA 1151 (Socket H4). This model supports up to 128 GB of internal memory across four memory slots. For storage, it accommodates HDD drive types and interfaces through PCI Express, SAS, and Serial ATA, with support for RAID levels 0, 1, 5, and 10. The workstation includes five Ethernet LAN (RJ-45) ports and is powered by a 500 W power supply.

Processor

Built-in processor
Built-in processor
No
show more

Memory

Memory slots type
Memory slots type
DIMM
show more


Number of memory slots
4
show more


Supported memory clock speeds
Supported memory clock speeds
2400,2666 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more

Storage

Supported storage drive types
Supported storage drive types
HDD
show more


Storage drive sizes supported
Storage drive sizes supported
2.5,3.5"
show more


SSD form factor
SSD form factor
M.2
show more


Storage drive interface
Storage drive interface
PCI Express, SAS, Serial ATA
show more


Number of storage drives supported
Number of storage drives supported
4
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Graphics

On-board graphics card
On-board graphics card
Yes
show more


On-board graphics card model
On-board graphics card model
Aspeed AST2500
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Wi-Fi
Wi-Fi
No
show more


LAN controller
Intel® I210-AT
show more

Ports & interfaces

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


Microphone in
Microphone in
Yes
show more


Headphone outputs
Headphone outputs
1
show more


Number of SATA III connectors
Number of SATA III connectors
8
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
5
show more


COM ports quantity
1
show more

Expansion slots

PCI Express slots version
3.0
show more


PCI Express x8 slots
2
show more


PCI Express x16 slots
1
show more


PCI slots
5
show more


Number of M.2 (M) slots
2
show more

Design

Chassis type
Chassis type
Full-Tower
show more


Product colour
Product colour
Black, Metallic
show more


On/off switch
On/off switch
Yes
show more


Product type
Product type
Workstation barebone
show more

Performance

Motherboard chipset
Motherboard chipset
Intel C246
show more


Processor socket
Processor socket
LGA 1151 (Socket H4)
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®
show more

Certificates

Certification
BSMI, CE
show more

Software

Windows operating systems supported
Windows operating systems supported
Yes
show more

Logistics data

Harmonized System (HS) code
84713000
show more

Power

Power supply type
Power supply type
Internal power supply unit
show more


AC adapter output current
7 A
show more


AC input frequency
50 – 60 Hz
show more


Number of power supply units
1
show more


Power supply
Power supply
500 W
show more


AC input voltage
AC input voltage
100 – 240 V
show more

Operational conditions

Operating relative humidity (H-H)
20 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Width
Width
217.5 mm
show more


Depth
Depth
545 mm
show more


Height
Height
445 mm
show more


Weight
Weight
15 kg
show more


Package weight
Package weight
18.9 kg
show more
