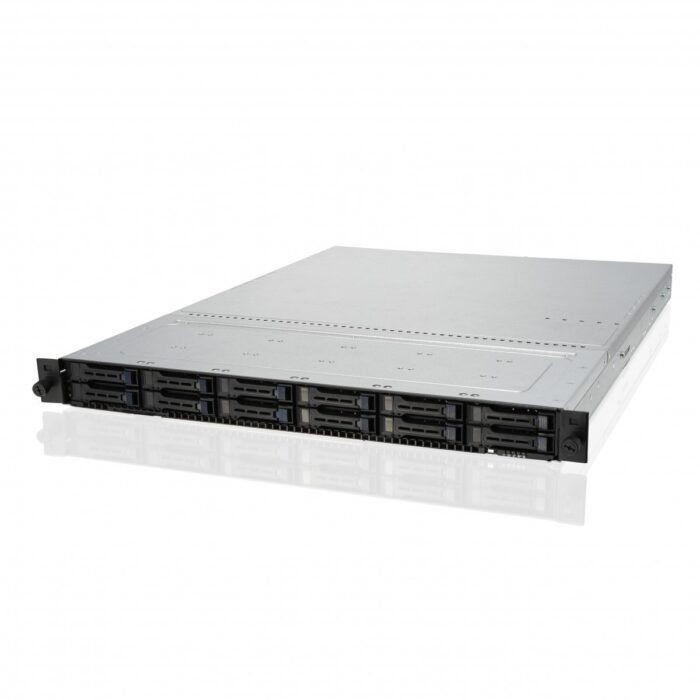

ASUS RS500A-E10-RS12U 6NVME – Barebone (90SF00X1-M00590)

The ASUS RS500A-E10-RS12U is designed with a Socket SP3 processor socket and belongs to the AMD EPYC processor family. It supports DDR4-SDRAM memory types and can accommodate a maximum RDIMM memory of up to 2.05 TB. The supported RDIMM clock speeds include 2666, 2933, and 3200 MHz. For storage, it is compatible with 2.5" drive sizes. The system features an on-board graphics card, the Aspeed AST2500, with 64 MB of memory. In terms of connectivity, it includes a Gigabit Ethernet interface, managed by an Intel® I350-AM2 LAN controller.

Processor

Built-in processor
Built-in processor
No
show more


Processor socket
Processor socket
Socket SP3
show more


Processor family
Processor family
AMD EPYC
show more


Number of processors supported
Number of processors supported
1
show more

Memory

Number of DIMM slots
Number of DIMM slots
16
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Maximum RDIMM memory
2.05 TB
show more


Supported RDIMM clock speeds
2666,2933,3200 MHz
show more


Memory channels
Octa-channel
show more

Storage

Number of storage drives supported
Number of storage drives supported
6
show more


Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Storage drive sizes supported
Storage drive sizes supported
2.5"
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2500
show more


On-board graphics card memory
64 MB
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Intel® I350-AM2
show more

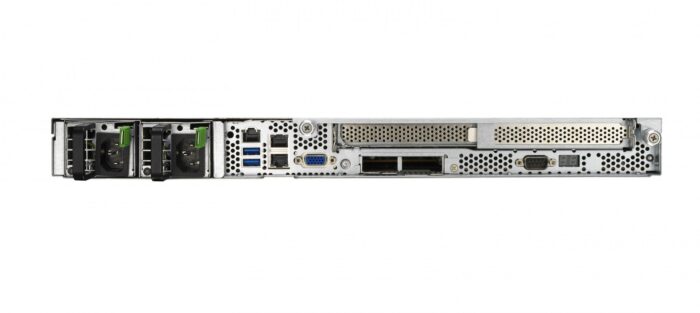

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


COM ports quantity
1
show more

Expansion slots

PCI Express slots version
4.0
show more


PCI Express x8 slots
1
show more


PCI Express x16 slots
1
show more

Design

Chassis type
Chassis type
Rack (1U)
show more


Product colour
Product colour
Black, Grey
show more


Certification
CE, FCC
show more

Power

Power supply
Power supply
650 W
show more


AC input frequency
50 – 60 Hz
show more


Input current
10/5 A
show more


80 PLUS certification
80 PLUS Platinum
show more

Operational conditions

Storage relative humidity (H-H)
20 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Weight
Weight
11 kg
show more


Height
Height
44 mm
show more


Depth
Depth
615 mm
show more


Width
Width
444 mm
show more

Packaging data

Package weight
Package weight
17 kg
show more

Other features

Memory slots
Memory slots
16
show more
