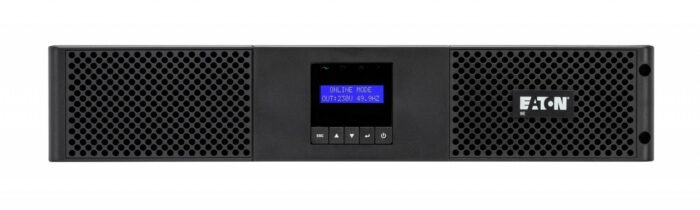

Eaton 9E3000IR Uninterruptible Power Supply (UPS) Double-Conversion (Online) 3 kVA 2700 W 7 AC Outlets

The Eaton 9E3000IR is an uninterruptible power supply (UPS) with a double-conversion (online) topology, offering a robust power solution with an output capacity of 3 kVA and an output power of 2700 W. It features AC outlet types including C13 and C19 couplers, and a power plug C14 coupler with a total of 7 AC outlets. The UPS utilizes lead-acid battery technology, providing a battery capacity of 9 Ah and a battery voltage of 12 V. Designed in a rackmount form factor, the product is black and fits a 2U rack capacity. It complies with CE standards and holds certifications such as IEC/EN 62040-1 and IEC/EN 62040-2.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
3 kVA
show more


Output power
Output power
2700 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
220 V
show more


Input operation voltage (max)
Input operation voltage (max)
240 V
show more


Input frequency
Input frequency
40/70 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
220 V
show more


Output operation voltage (max)
Output operation voltage (max)
240 V
show more


Output voltage regulation
2%
show more


Number of input phases
1
show more


Number of output phases
1
show more


Efficiency
91%
show more


Input power factor
99
show more


Output power factor
0.9
show more


Noise level
Noise level
45 dB
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Auto shut-off
Yes
show more


Power source type
Power source type
AC
show more

Ports & interfaces

AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more


Power plug
Power plug
C14 coupler
show more


AC outlets quantity
AC outlets quantity
7 AC outlet(s)
show more

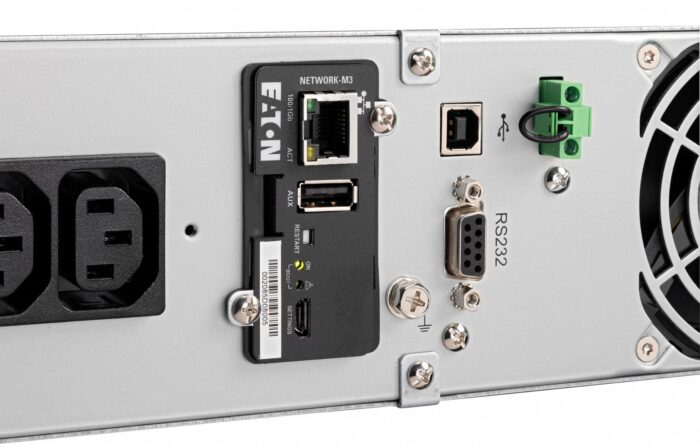

USB port
USB port
Yes
show more


Serial interface
Yes
show more


Serial interface type
RS-232
show more


RS-232 ports
RS-232 ports
1
show more


Serial ports quantity
Serial ports quantity
1
show more

Battery

Battery technology
Battery technology
Lead-Acid
show more


Battery capacity
Battery capacity
9 Ah
show more


Battery voltage
Battery voltage
12 V
show more


Number of batteries supported
Number of batteries supported
6
show more


Hot-swap battery
No
show more


Automatic battery test
Yes
show more

Design

Form factor
Form factor
Rackmount
show more


Rack capacity
Rack capacity
2U
show more


Cable length
Cable length
1.8 m
show more


Product colour
Product colour
Black
show more


Control type
Control type
Buttons
show more


Display type
Display type
LCD
show more


LED indicators
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
0 – 96%
show more


Operating altitude
0 – 3000 m
show more

Sustainability

Sustainability compliance
Yes
show more

Certificates

Compliance certificates
CE
show more


Certification
IEC/EN 62040-1,
IEC/EN 62040-2,
CE
show more

Packaging content

Rack mount kit
Yes
show more


Cables included
Output power cable, USB cable
show more


Quick installation guide
Yes
show more

Weight & dimensions

Width
Width
438 mm
show more


Depth
Depth
608 mm
show more


Height
Height
86.5 mm
show more


Weight
Weight
31.3 kg
show more

Packaging data

Bracket
Yes
show more

Logistics data

Quantity per pack
1 pc(s)
show more

Other features

Nominal output voltage
Nominal output voltage
230 V
show more


Nominal input voltage
Nominal input voltage
230 V
show more


Packaging content
UPS
(2) IEC-IEC output cables
USB cable
Rack-mounting kit (rails and brackets)
Safety instructions
Quickstart guide
show more
