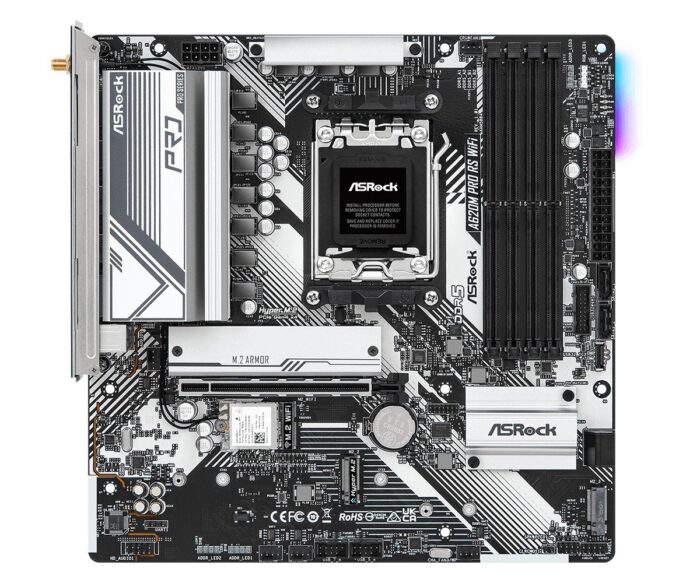

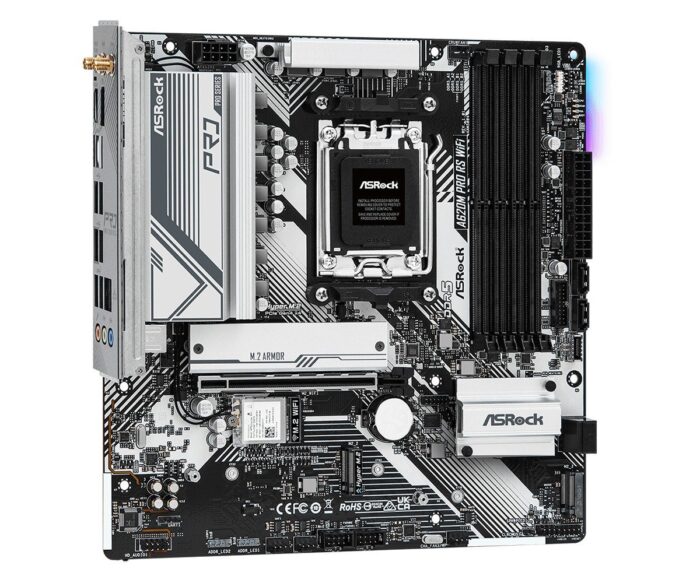

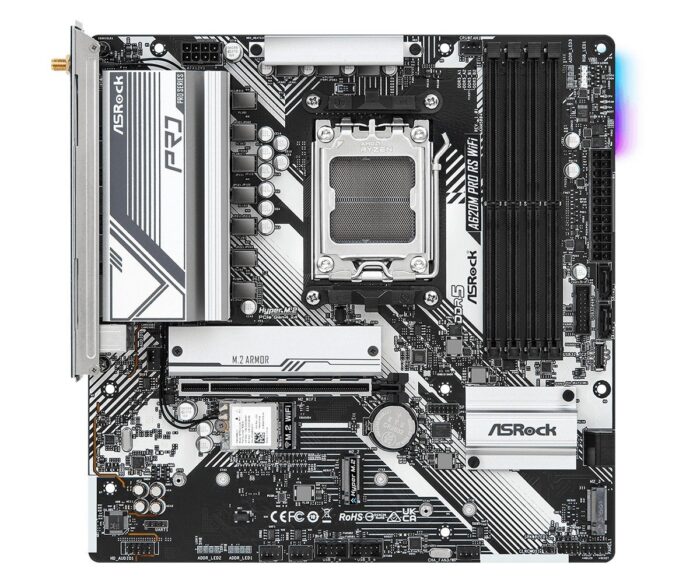

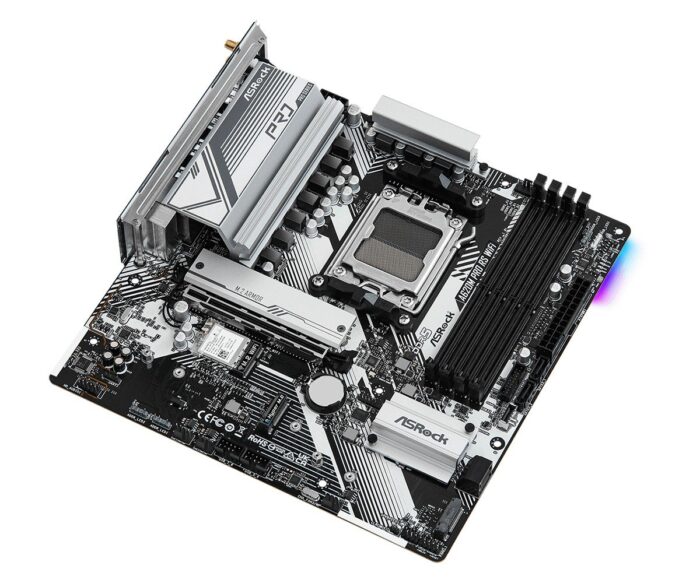

ASRock A620M PRO RS WIFI Motherboard

The Asrock A620M Pro RS WiFi is designed for AMD processors with a Socket AM5, making it compatible with the AMD Ryzen 7000 Series. It supports DDR5-SDRAM memory types, with a maximum internal memory capacity of 192 GB and utilizes DIMM memory slots. Storage drive interfaces include M.2 and SATA, and the motherboard supports both HDD and SSD storage drive types. RAID configurations of 0, 1, and 10 are also supported for enhanced data redundancy and performance. In terms of graphics, it features an AMD RDNA 2 graphics card. Networking capabilities include a Gigabit Ethernet interface, utilizing the Realtek 8111H LAN controller, and it supports the advanced Wi-Fi 6E (802.11ax) standard for wireless connectivity.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM5
show more


Compatible processor series
Compatible processor series
AMD Ryzen 7000 Series
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


Maximum internal memory
Maximum internal memory
192 GB
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 10
show more

Graphics

On-board graphics card
On-board graphics card
Yes
show more


Graphics card family
AMD
show more


Graphics card
AMD RDNA 2
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


TPM connector
Yes
show more


RGB LED pin header
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
4
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


HDMI version
2.1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


DisplayPort version
1.4
show more


Line-in
Yes
show more


Microphone in
Microphone in
Yes
show more


WiFi-AP antenna jack
2
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Realtek 8111H
show more


Wi-Fi
Wi-Fi
Yes
show more


Top Wi-Fi standard
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
show more


Wi-Fi standards
Wi-Fi standards
802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
show more


Bluetooth
Bluetooth
Yes
show more


Bluetooth version
Bluetooth version
5.2
show more

Features

Motherboard chipset
Motherboard chipset
AMD A620
show more


Audio chip
Realtek ALC897
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11 x64
show more


Certification
FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
show more

Expansion slots

PCI Express x16 (Gen 4.x) slots
1
show more


Number of M.2 (M) slots
3
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
256 Mbit
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
244 mm
show more

Packaging content

Bundled software
Bundled software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
– ASRock XFast LAN
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
show more
