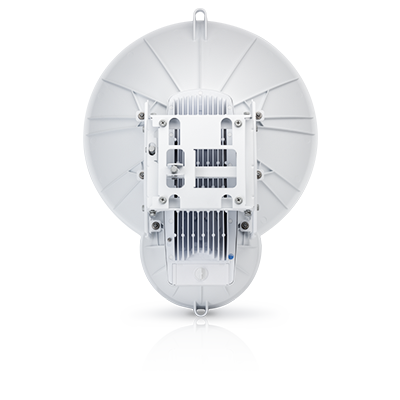

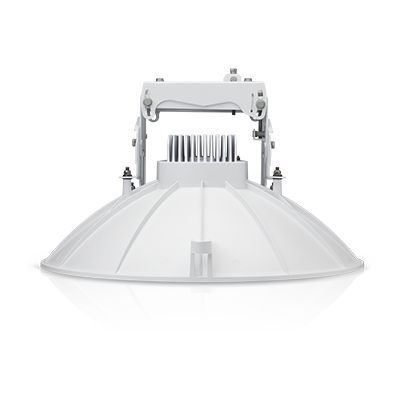

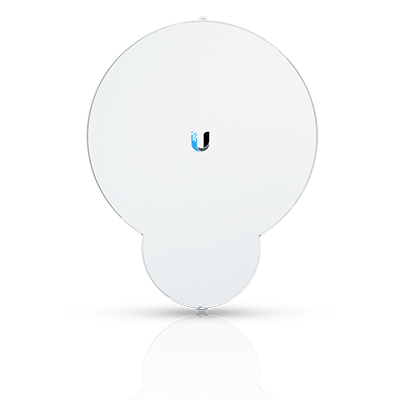

The Ubiquiti airFiber24HD features a maximum antenna gain level of 40 dBi. It operates in the 24 GHz frequency band and supports multiple modulation types, including 16-QAM, 256-QAM, 64-QAM, and QPSK. This product utilizes a sector antenna type and features dual polarization. The Ubiquiti airFiber24HD is available in white. It is compliant with RoHS standards and holds certifications such as CE, FCC, and IC. The dimensions of the product are 593 mm in width, 768 mm in depth, and 370 mm in height. It is packaged as a single unit per pack.
| Mechanical | |
|---|---|
| Dimensions | 593 x 768 x 370 mm (23.4 x 30.2 x 14.6") |
| Weight | 17.3 kg (38.1 lb) |
| Mounting | Pole mount kit (Included) |
| Wind loading | 770 N @ 200 km/h (170 lbf @ 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port (1) 10/100 MbE RJ45 port |
| Auxiliary port | (1) RJ-12, alignment tone port |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 |
| Power supply | 50V, 1.2A gigabit PoE adapter (Included) |
| Supported voltage range | 42–58V DC |
| Max. power consumption | 50W |
| Operating frequency | 24.05 – 24.25 GHz |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| System | |
| Max. throughput | 2 Gbps |
| Ma. range | 20+ km |
| Packets per second | 1+ million |
| Encryption | 128-bit AES |
| Uplink/Downlink ratio | Programmable in Half Duplex mode |
| RF | |
| GPS | GPS clock synchronization |
| EIRP | ~33 dBm (FCC/IC) ~20 dBm (CE) ~40 dBm (Other Regions) |
| Frequency accuracy | ±2.5 ppm without GPS synchronization ±0.2 ppm with GPS synchronization |
| Channel bandwidth | 100 MHz |
| Operating channels | 24.1 GHz, 24.2 GHz |
| Modulation | 256QAM 64QAM 16QAM QPSK MIMO QPSK SISO ¼x QPSK SISO |
| Gain TX RX |
33 dBi 40 dBi |
| Beamwidth | < 3.5° |
| Front-to-back ratio | 70 dB |
| Polarization | Dual-slant |
| Cross-polarity Iiolation | > 28 dB |
| LEDs | |
| System | (8) Status LEDs: Data port speed Data port link/activity Configuration port speed Configuration port link/activity GPS synchronization Modulation mode Master/slave RF status (1) Two-digit LED display calibrated in dBm |
