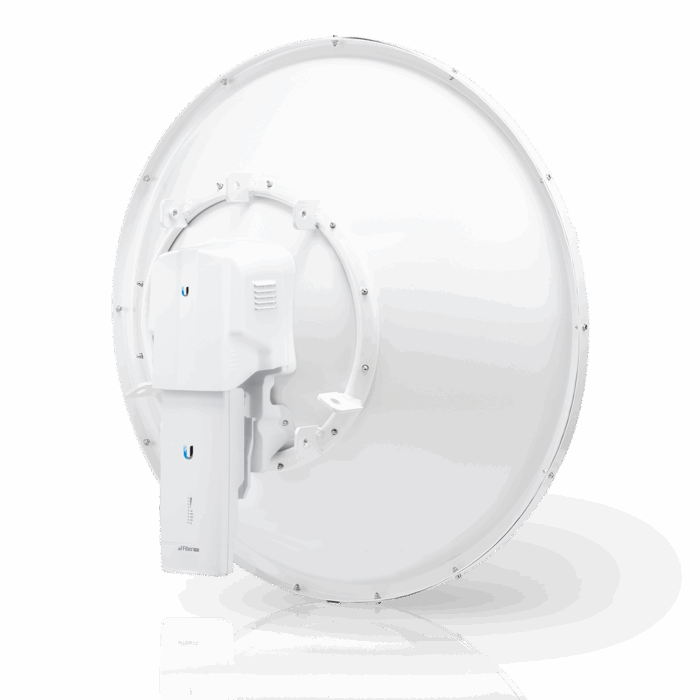

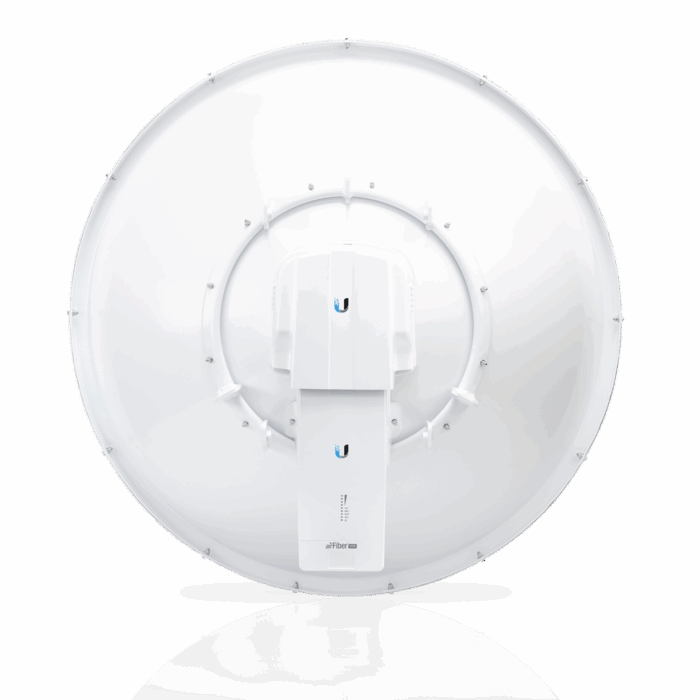

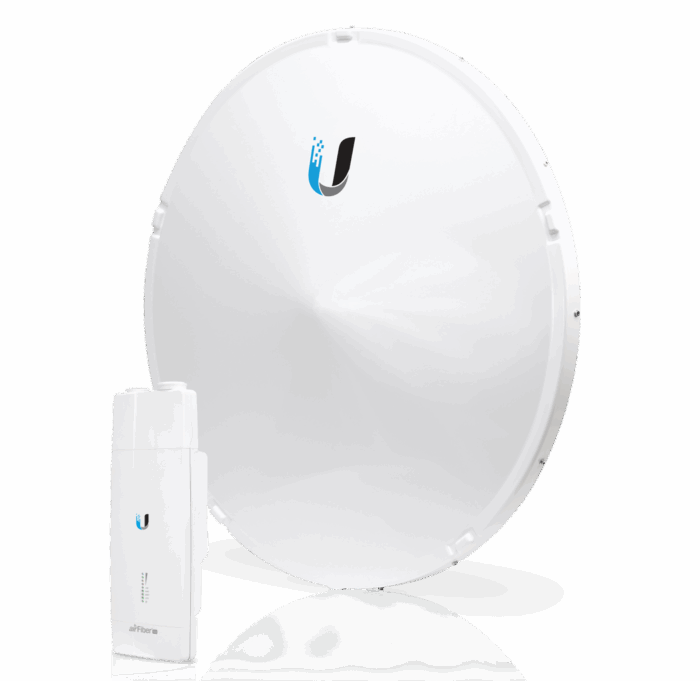

The Ubiquiti AF11-Complete-LB operates on a frequency band of 11 GHz and features 10/100/1000Base-T(X) cabling technology. It offers a gain of 35 dBi. The product utilizes a directional antenna and comes in white. It is designed for easy mounting on a wall or pole. The device can be powered via DC or Power over Ethernet (PoE) and requires an input voltage between 38 and 56 volts. Each pack includes one unit.
| airFiber AF-11 | |
|---|---|
| Dimensions | 327 x 112 x 86 mm (12.9 x 4.4 x 3.4") |
| Weight | 2.3 kg (5 lb) |
| Mounting | AF-11G35 mount compatible |
| Hardware | |
| Networking interface | (1) GbE RJ45 port (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 Terminal block direct-wire |
| Power supply | 50V DC, 1.2A gigabit PoE adapter (Included) |
| Supported voltage range | 38-56V DC |
| Max. power consumption | 36W |
| RF connectors | (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| Software | |
| Modes | SISO/MIMO* * Comes with (1) Low-Band Duplexer pre-installed for SISO mode. For MIMO mode, a second Duplexer is available, model AF-11-DUP-L. |
| System | |
| Max. throughput | 1.2+ Gbps |
| Max. range | 300+ km |
| Encryption | 128-bit AES |
| RF | |
| Operating frequency* | 10.7-11.7 GHz *Depends on regional regulations. |
| Max. conducted TX power* | 30 dBm *Depends on regional regulations. |
| Frequency accuracy | ± 1 ppm |
| Channel bandwidth* | 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectable** Programmable Uplink and Downlink duty cycles * For region-specific details, refer to the Compliance chapter of the airFiber AF-11FX User Guide at ui.com/download/airfiber **Channel widths may vary according to country/region regulations. |

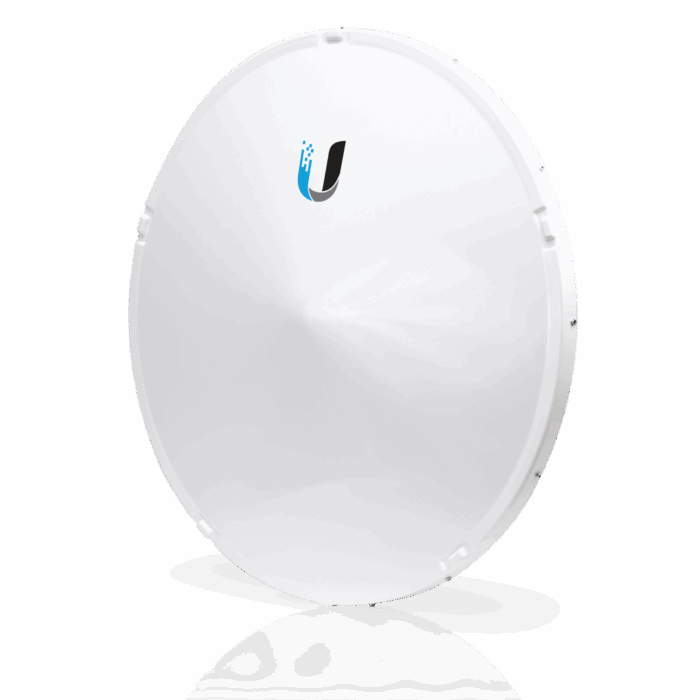

| airFiber AF‑11G35 | |
| Dimensions | 811 x 811 x 460 mm (31.9 x 31.9 x 18.1") |
| Weight | Without mount: 7.14 kg (15.74 lb) With mount: 11.85 kg (26.12 lb) |
| Wind loading | 1538 N @ 200 km/h (346 lbf @ 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Mounting | Pole mount |
| Frequency | 10.3 to 11.7 GHz |
| Gain | 35 dBi |
| HPOL beamwidth | 2.5° |
| VPOL beamwidth | 2.5° |
| Maximum VSWR | 2:1 |
| Polarization | Default: H/V After rotating OMT: ± 45° |
| Cross-pol isolation | 35 dB |
| Pattern regulatory | ETSI 302 217-4-2, Class 3, FCC Cat B |
