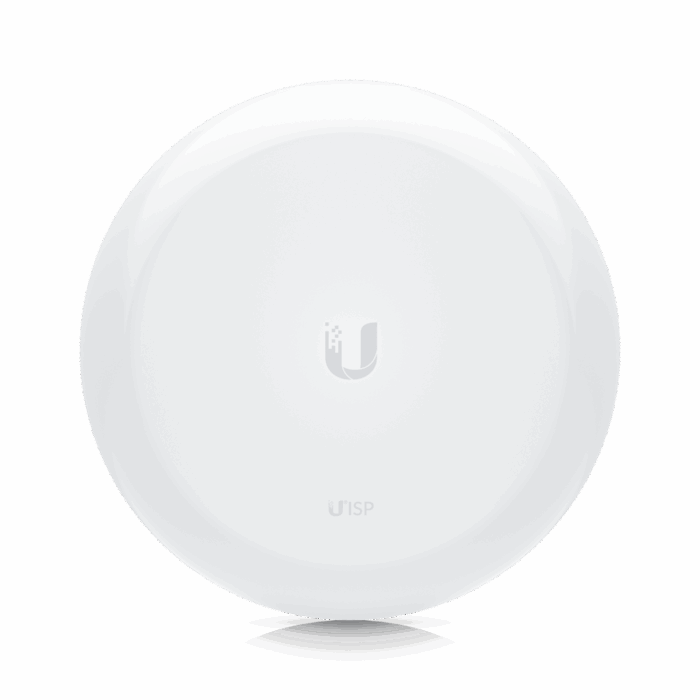

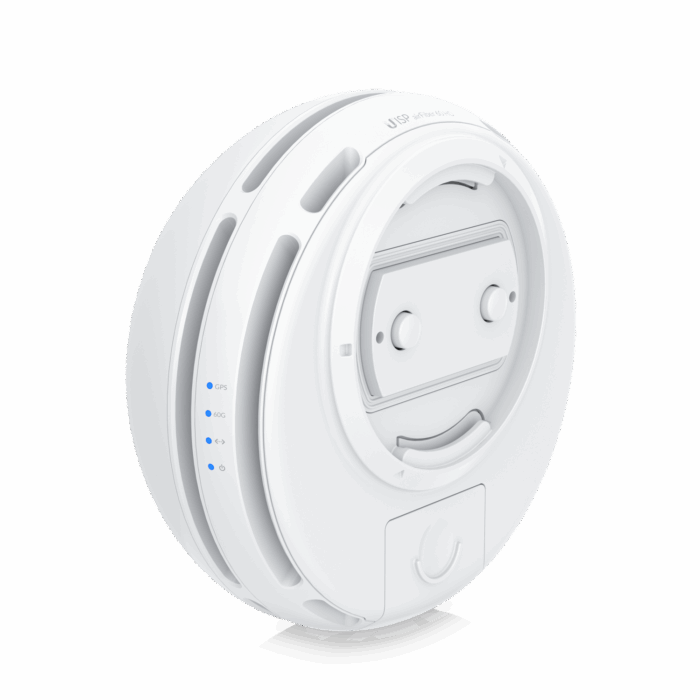

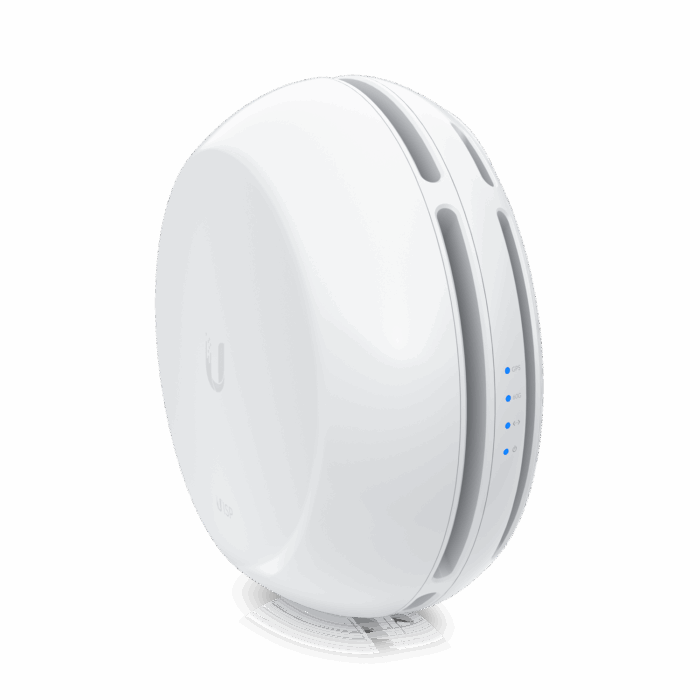

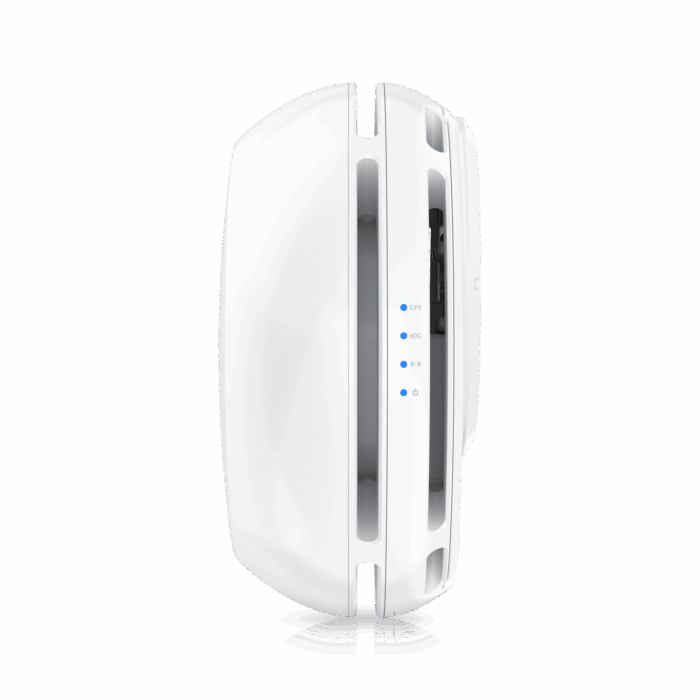

Ubiquiti AF60-HD: Powerful Wireless Connections
The Ubiquiti AF60-HD provides reliable and fast wireless connections, ideal for demanding applications with its advanced system that allows a maximum data rate of 1800 Mbit/s.
Operating on a 60 GHz frequency band, the Ubiquiti AF60-HD ensures stable and efficient connections over distances reaching up to 12,000 meters. Featuring an external antenna design and an antenna gain level of up to 38 dBi, it delivers strong and dependable signals even in challenging environments.
The device includes a Gigabit Ethernet interface for high-speed data transfer over cable, and it supports both wired and wireless technology, offering flexibility in network configuration.
With its superior performance and advanced features, the Ubiquiti AF60-HD is an ideal solution for businesses and institutions requiring reliable wireless connections with high bandwidth and range. Enjoy seamless data transmission and benefit from the capabilities of this state-of-the-art system.
| Mechanical | |
|---|---|
| Dimensions | Ø189 x 89 mm (Ø7.4 x 3.5") |
| Weight | Without mount: 1.8 kg (3.9 lb) With mount: 2.95 kg (6.5 lb) |
| Enclosure material | Aluminum alloy, UV stabilized plastic |
| Mount material | Stainless steel (SUS304) |
| Mount | 60G precision alignment pole mount (included) |
| Wind loading | 64 N at 200 km/h (14.39 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex® A72 at 1.6 GHz |
| Memory | 2 GB DDR4 |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Max. power consumption | 29.31W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (Included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| GPS | Yes |
| RF connections | Internal |
| Button | Factory reset |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| Operating mode | PtP Only |
| Services | UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery |
| Utilities | Beamform info, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Wireless settings | GPS sync |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| System | |
| Max. throughput 60 GHz |
3.8 Gbps/ 6 Gbps (with channel bonding enabled) |
| Max. range | 2 km |
| Encryption | WPA2-PSK (AES) |
| Uplink/Downlink ratio | 50/50 |
| RF | |
| Operating frequency* | 57–66 GHz * Depends on regulatory region. |
| Channel bandwidth | 2160 MHz/4320 MHz (with channel bonding enabled) |
| Operating channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz* *Depends on the channel bandwidth. |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 3° Elevation: 3 dB 3° |
| Electrical downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP™ console Blue: connected to UISP console |
| Ethernet | Flashing blue: ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| 60G | Blue: active connection |
"`
