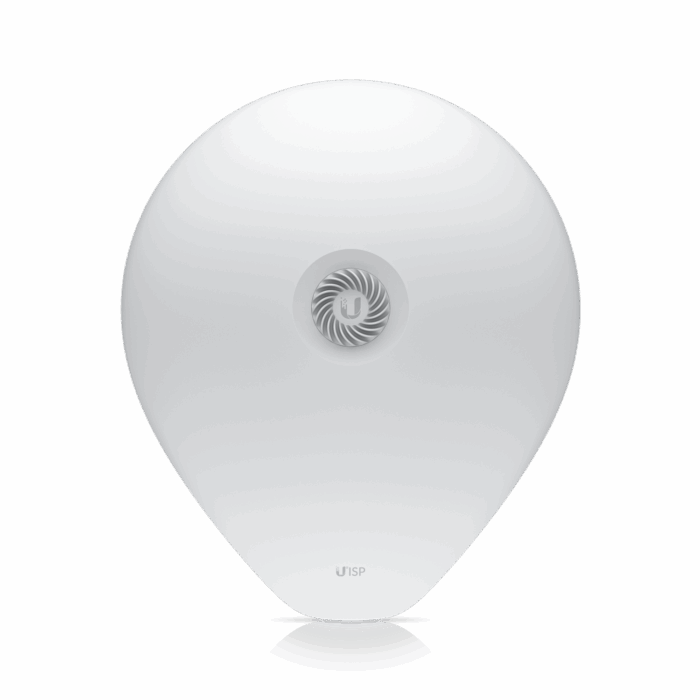

Explore the Ubiquiti UISP airFiber 60 XR, an outdoor antenna designed to deliver reliable connectivity over long distances. With a maximum transfer range of 4000 meters and an antenna gain level of 26 dBi, this product stands out as a leader in its class.
Featuring modulations such as 16-QAM, BPSK, and QPSK, the Ubiquiti UISP airFiber 60 XR ensures a stable and fast connection, even in harsh weather conditions. It is the perfect solution for circumstances where dependable connectivity in open environments is required.
The device includes a Gigabit Ethernet interface and offers Ethernet LAN data transfer speeds of up to 1000 Mbit/s, ensuring fast network access. While the Ubiquiti UISP airFiber 60 XR primarily utilizes wired communication technology, its versatility allows it to be used in various scenarios.
For those requiring reliable long-distance connectivity, the Ubiquiti UISP airFiber 60 XR is an ideal choice. With its high-quality construction and advanced features, this product offers a stable and fast connection on which you can always depend.
| Mechanical | |
|---|---|
| Dimensions | 779 x 664 x 383 mm (30.7 x 26.1 x 15.1") |
| Weight | Without mount: 8.6 kg (19 lb) With mount: 13 kg (28.7 lb) |
| Enclosure material | UV stabilized polycarbonate, steel |
| Mount material | Galvanized steel |

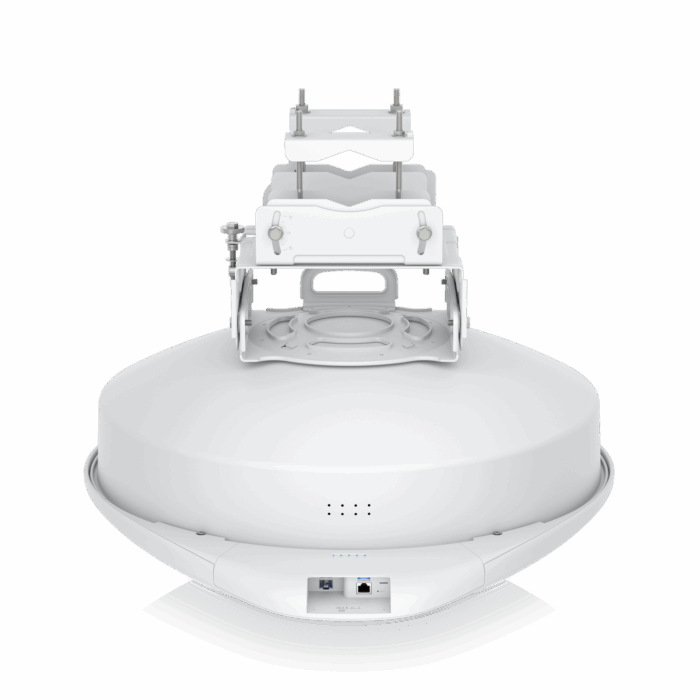

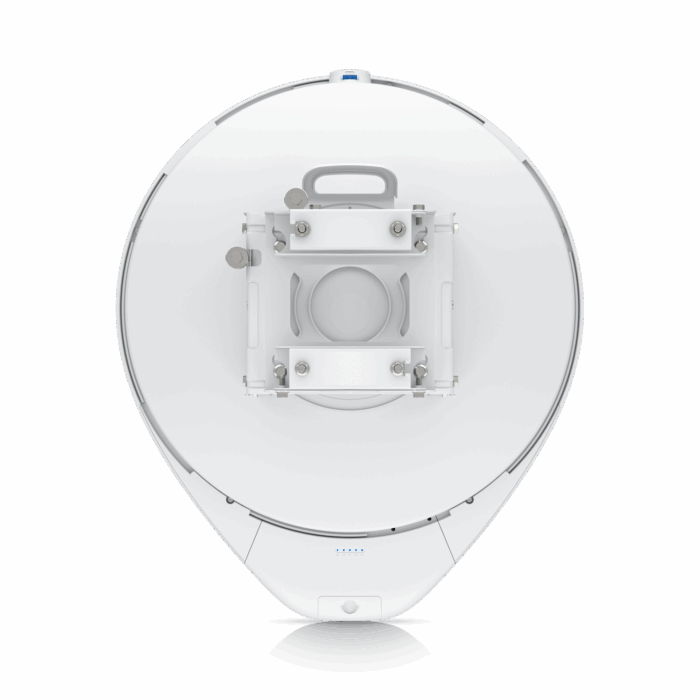

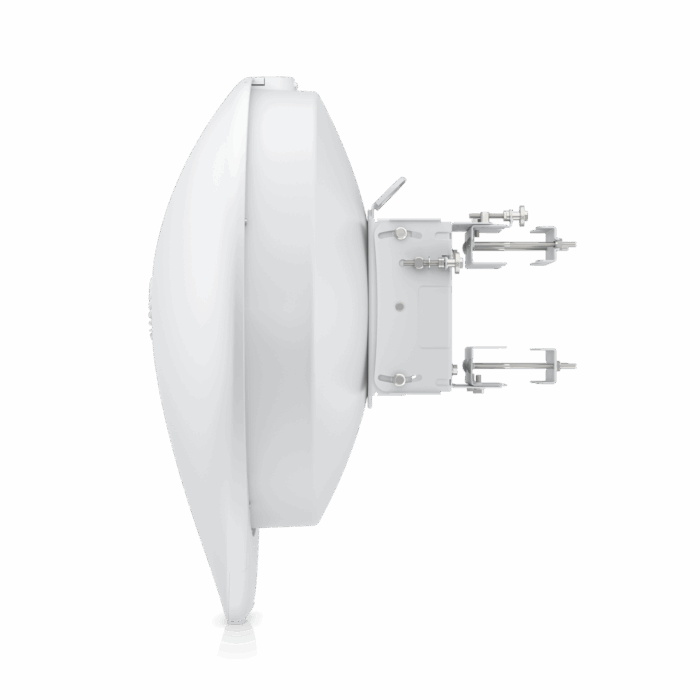

| Mounting | Precision alignment kit (included) Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") on pipe outer diameter |
| Wind loading | 422 N at 200 km/h (94.86 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L1 GB |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+port |
| Max. power consumption | 24W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (Included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| GPS | Yes |
| RF connections | Internal |
| Button | Factory reset |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode | PtP only |
| Ubiquiti specific features | Integrated 60 GHz radio, discovery protocol, Wave technology |
| Services | UISP, ping watchdog, NTP client, device discovery |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Management application | UISP web: Version 1.4.3 and later UISP iOS™: Version 2.20 and later UISP Android™: Version 2.21.5 and later |
| System | |
| Max. throughput | 2.7 Gbps |
| Max. range | 15+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57–71 Ghz * Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz * Depends on regulatory region. |
| Management radio | 2400–2483.5 MHz |
| Modulation | 16QAM, BPSK, QPSK |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4° |
| Electrical downtilt | 0° |
| Back-Up RF | |
| Operating frequency* US/CA Worldwide |
U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz 5150 – 5875 MHz |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6) |
| Antenna gain | 26 dBi |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 3 dB 5° Elevation: 3 dB 5° |
| Cross-pol isolation | 14 dB |
| Electrical downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application |
| Ethernet | Flashing blue: Ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| Link | Blue: 5GHz link Blue: 60GHz link |
