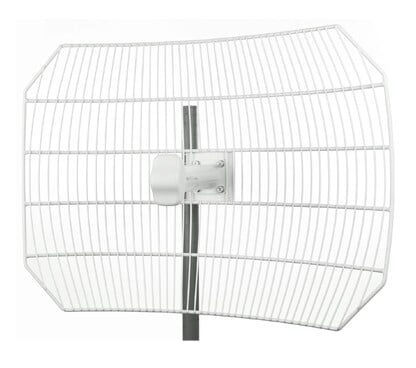

Ubiquiti Networks AG-HP-5G23 Network Antenna 23 dBi

Ubiquiti AG-HP-5G23 – AirGrid Series Solution

The Ubiquiti AG-HP-5G23 radio system operates on the 5 GHz band, providing a bandwidth of 100 Mbps. It is notable for its extensive range of over 25 kilometers.

The system is designed to function within the 5 GHz band, utilizing the 802.11n MIMO 1×1 standard to achieve real TCP/IP bandwidth capable of reaching up to 100 Mbps.

**Technical Parameters**
This product is powered by a 400 MHz Atheros MIPS 24KC processor. It is equipped with 32 MB of internal memory and an 8 MB flash drive memory. The antenna offers a maximum gain of 23 dBi.

**Installation**
No specialized tools are needed to install devices from the AirGrid M series.

**Durable Construction**
The Ubiquiti AG-HP-5G23 is built from high-quality components, ensuring smooth and noiseless operation even under adverse weather conditions. It is designed to withstand temperatures from -30 to 75 degrees Celsius.

**Usage**
The AG-HP-5G23 is suitable for establishing Point-to-Point and Point-to-Multipoint links.

**Key Features**
– Operates in the 5 GHz band
– Supports over 100 Mbps bandwidth
– Provides a range exceeding 25 kilometers
– Dimensions: 370 x 270 mm
– Features a 23 dBi antenna

**Comparative Information**

| Model | Frequency | Throughput | Range |
|————-|———–|————–|———–|
| AG-HP-2G16 | 2.4 GHz | 100+ Mbps | 10+ km |
| AG-HP-2G20 | 2.4 GHz | 100+ Mbps | 20+ km |
| AG-HP-5G23 | 5 GHz | 100+ Mbps | 25+ km |
| AG-HP-5G27 | 5 GHz | 100+ Mbps | 30+ km |

For further information, please refer to the manufacturer's documentation and manual.
