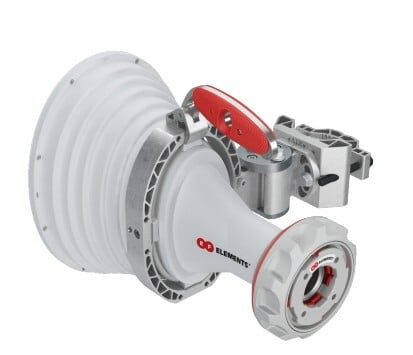

RF Elements AH2030-TP-Asymmetrical Horn TwistPort 20-30 Degree Network Antenna Horn Antenna

The RF Elements AH2030-TP-Asymmetrical Horn TwistPort is a high-performance antenna with a beam width ranging from 20 to 30 degrees. It offers a gain of 20.5, 22, and 23 dBi. At 2.4 GHz, the antenna features a horizontal beam width of 20 degrees and a vertical beam width of 20 degrees. This horn antenna is designed with an international protection rating of IP55, ensuring durability against harsh weather conditions. It can withstand wind speeds of up to 160 km/h. The antenna weighs 4.2 kg, while the package weight is 6.3 kg. Each pack contains one antenna unit.

Performance

Gain
20.5 / 22 / 23 dBi
show more


Vertical beam width (2.4 GHz)
20°
show more


Horizontal beam width (2.4 GHz)
20°
show more

Features

Antenna type
Antenna type
Horn antenna
show more


International Protection (IP) code
International Protection (IP) code
IP55
show more


Survival wind speed
160 km/h
show more


Mounting pipe
40 – 80 mm
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-35 – 60 °C
show more

Weight & dimensions

Weight
Weight
4.2 kg
show more

Packaging data

Package weight
Package weight
6.3 kg
show more

Packaging content

Quantity per pack
1 pc(s)
show more


Manual
Yes
show more
