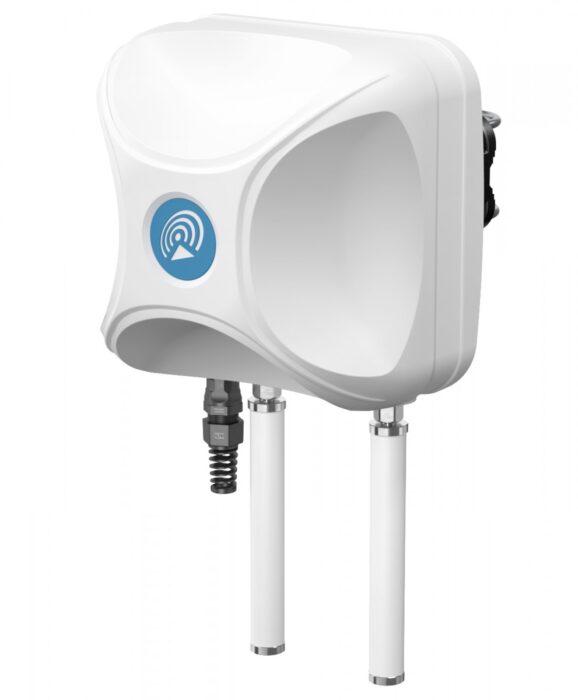

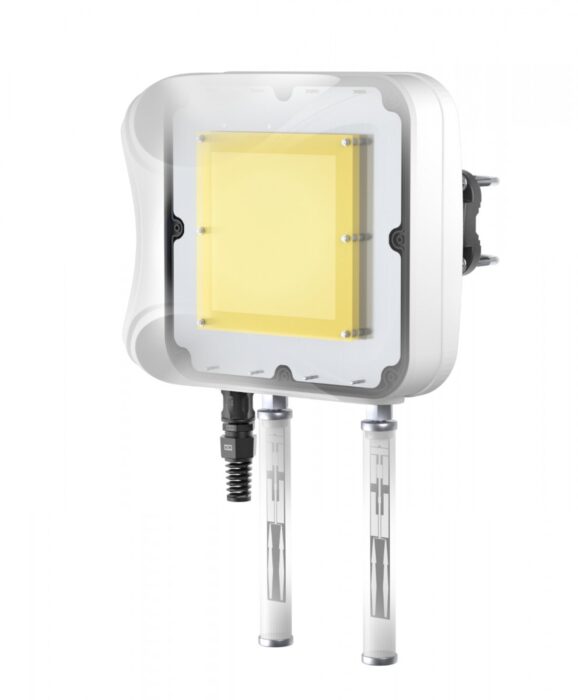

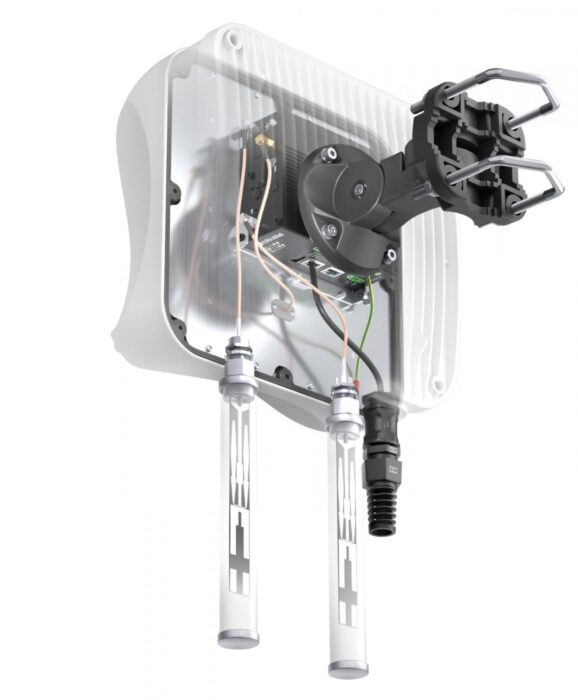

QuMax for Robustel LG5100 LoRa, 2x Antenna LTE + 1x LoRa

The QuWireless Antenna QuMax is designed for use with the Robustel LG5100 LoRa. It features a maximum antenna gain level of 3 dBi and operates within a frequency band of 0.694 to 2.7 GHz. The antenna has an impedance of 50 ohms and is classified as an omni-directional antenna. It has a Voltage Standing Wave Ratio (VSWR) ranging from 1.5 to 2.5. The product is available in white and has dimensions of 160 mm in width, 160 mm in depth, and 240 mm in height. It is sold in a pack containing one piece.

Performance

Frequency band
Frequency band
0.694 – 2.7 GHz
show more


Impedance
Impedance
50 Ω
show more


Vertical beam width
25°
show more


Horizontal beam width
360°
show more


Antenna gain level (max)
Antenna gain level (max)
3 dBi
show more

Features

Antenna type
Antenna type
Omni-directional antenna
show more


Voltage Standing Wave Ratio (VSWR)
1.5 – 2.5
show more


Product colour
Product colour
White
show more


Housing material
Housing material
Acrylonitrile butadiene styrene (ABS), Aluminium, Polytetrafluoroethylene (PTFE)
show more


International Protection (IP) code
International Protection (IP) code
IP67
show more

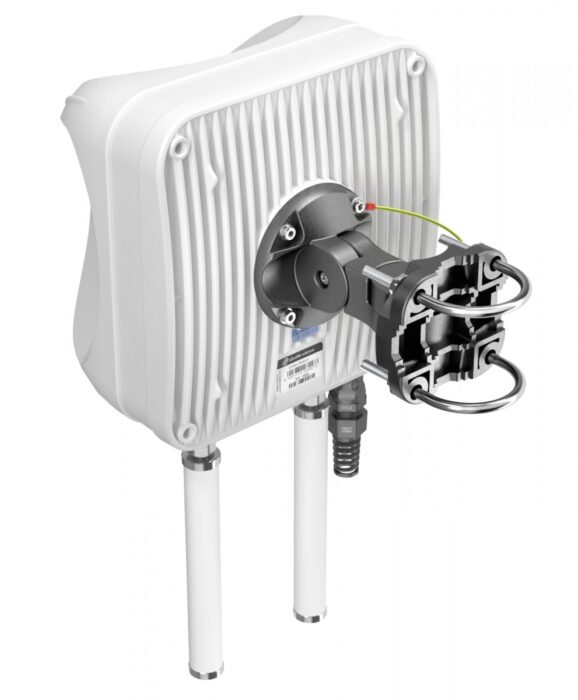

Mounting
Mounting
Ceiling/wall
show more


Compatible products
Compatible products
LG5100
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 80 °C
show more

Weight & dimensions

Width
Width
160 mm
show more


Depth
Depth
160 mm
show more


Height
Height
240 mm
show more


Weight
Weight
1.5 kg
show more

Packaging content

Quantity per pack
1 pc(s)
show more
