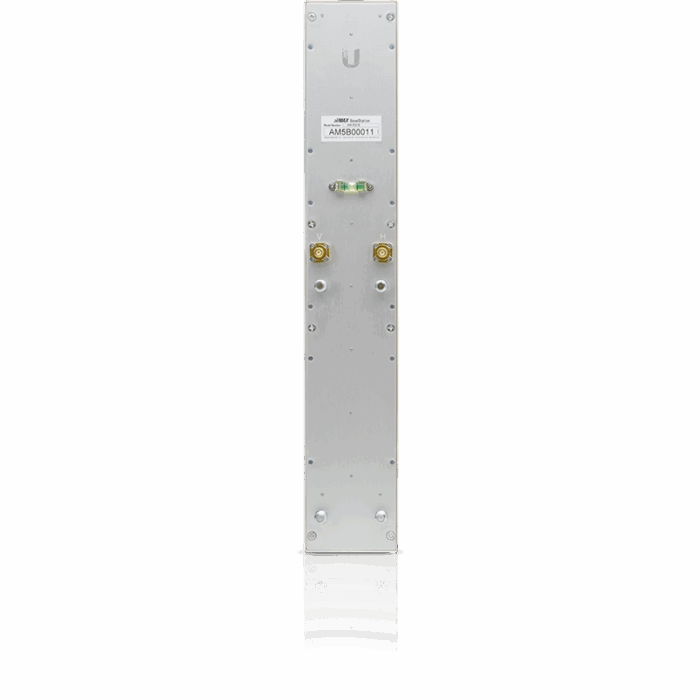

Ubiquiti Networks AM-5G16-120 Network Antenna Sector Antenna 16 dBi

The Ubiquiti AM-5G16-120 sector antenna is known for its 5 GHz gain. This model is remarkably reliable due to its innovative solutions and high-quality components. As a dual polarization sector antenna from the AirMAX Sector series, it exhibits increased reliability and operates in the 5 GHz band.

Innovation is a key feature, with the latest technologies providing increased resistance to interference. It is EN 302 326 DN2 certified and is part of the AirMax series, which includes sector antennas designed for use with 802.11n standard products.

The antenna has a maximum gain of 16 dBi, and its standing wave ratio is 1.5:1.

In terms of use, when paired with the Rocket M series products (sold separately), it forms a 2×2 MIMO Point-to-MultiPoint base station. Its functionality and durable components ensure the highest possible quality.

Installation of Ubiquiti AirMax devices is straightforward and does not require specialized tools, making the process quick and easy.

RocketM is sold separately.

Key Features:
– 5 GHz band
– 16 dBi gain
– Size: 367 x 63 x 41 mm
– Sector antenna
– 2×2 MIMO

Comparisons:

AM-5G16-120:
– Frequency: 5 GHz
– Gain: 16 dBi
– Dimensions: 367 x 63 x 41 mm
– Polarization: Dual-Linear

AM-5G17-90:
– Frequency: 5 GHz
– Gain: 17 dBi
– Dimensions: 367 x 63 x 41 mm
– Polarization: Dual-Linear

AM-5G19-120:
– Frequency: 5 GHz
– Gain: 19 dBi
– Dimensions: 700 x 135 x 73 mm
– Polarization: Dual-Linear

AM-5G20-90:
– Frequency: 5 GHz
– Gain: 20 dBi
– Dimensions: 700 x 135 x 70 mm
– Polarization: Dual-Linear

AM-9M13-120:
– Frequency: 900 MHz
– Gain: 13 dBi
– Dimensions: 1290 x 290 x 134 mm
– Polarization: Dual-Linear

AM-2G16-90:
– Frequency: 2.4 GHz
– Gain: 16 dBi
– Dimensions: 700 x 145 x 79 mm
– Polarization: Dual-Linear

AM-2G15-120:
– Frequency: 2.4 GHz
– Gain: 15 dBi
– Dimensions: 700 x 145 x 93 mm
– Polarization: Dual-Linear

AM-3G18-120:
– Frequency: 3 GHz
– Gain: 18 dBi
– Dimensions: 735 x 144 x 78 mm
– Polarization: Dual-Linear

Note: Dimensions exclude the pole mount and RocketM, which is sold separately.

For more information, refer to the manufacturer's documentation and manual.
