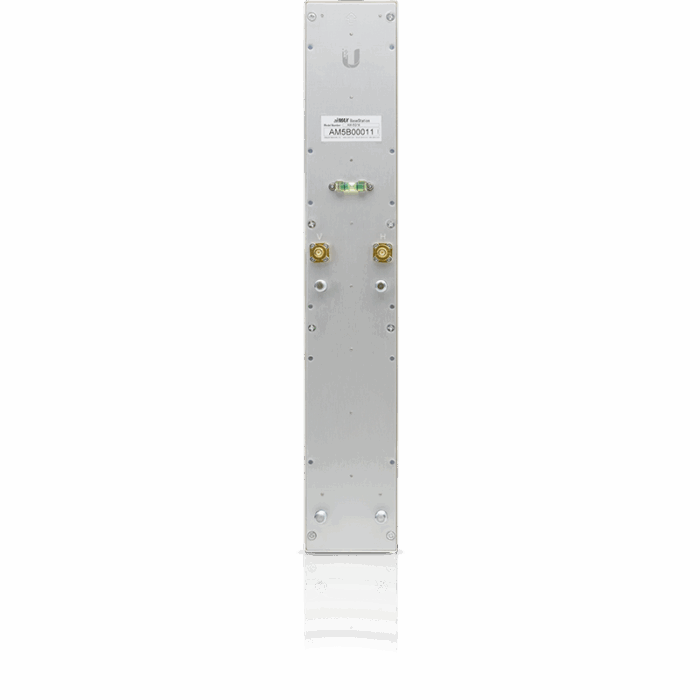

UbiQuiti AirMax Sector 5G-90-17 AM-5G17-90

The AM-5G17-90 AirMax sector antenna is designed to offer quality and reliability, operating within the 5 GHz band. It features a maximum gain of 17.1 dBi and a standing wave ratio of 1.5:1.

This modern solution utilizes innovative technology to achieve excellent parameters, such as high gain and an optimal beam size. Installation is straightforward and intuitive, requiring no additional components or specialized tools.

The AM-5G17-90 boasts a durable construction, made from robust components, ensuring resistance to adverse weather conditions.

Key features include:

– 5 GHz band operation
– 17 dBi gain
– Compact size of 367 x 63 x 41 mm
– Sector antenna design
– 2×2 MIMO technology
– Dual linear polarization
– High durability

Comparison with other models:

Frequency: All models listed (AM-5G16-120, AM-5G17-90, AM-5G19-120, AM-5G20-90) operate in the 5 GHz range.

Gain: Ranges from 16 dBi for the AM-5G16-120 to 20 dBi for the AM-5G20-90.

Dimensions: The AM-5G17-90 has dimensions of 367 x 63 x 41 mm, similar to some models, and is smaller compared to others like the AM-5G19-120 and AM-5G20-90, which measure 700 x 135 x 73 mm and 700 x 135 x 70 mm, respectively.

Polarization: All models feature dual-linear polarization.

Note: Dimensions exclude the pole mount and RocketM, which are sold separately.

The manufacturer's content, including further documentation and the manual, is available for additional details.
