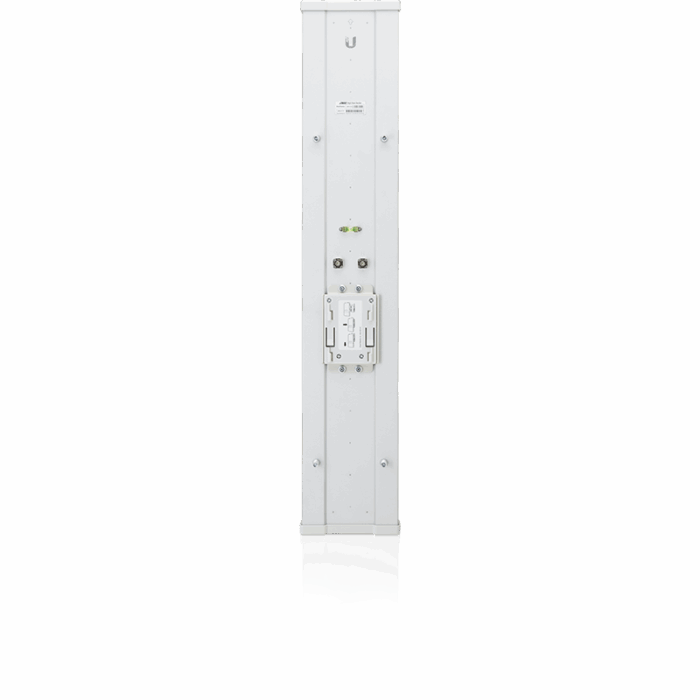

Ubiquiti Networks AM-5G20-90 Network Antenna Sector Antenna 20.3 dBi

The Ubiquiti AM-5G20-90 sector antenna operates in the 5.15-5.85 GHz frequency band. This antenna offers a maximum gain of 20.3 dBi and is designed for outdoor use.

Innovation
Thanks to its innovative design, the antenna provides high performance with optimal beam shape and excellent separation.

Construction
The antenna's solid and durable construction ensures dependable operation regardless of adverse weather conditions.

Use
This sector antenna from Ubiquiti is used to establish Point-to-Point and Point-to-MultiPoint connections.

airMax
The device is compatible with the airMax protocol, which enhances its capacity.

Key Features
– Operates in the 5 GHz band
– Maximum antenna gain of 20 dBi
– Dual-Linear polarization
– Equipped with airMax technology
– Features a robust construction

Comparison

AM-5G16-120
– Frequency: 5 GHz
– Gain: 16 dBi
– Dimensions: 367 x 63 x 41 mm
– Polarization: Dual-Linear

AM-5G17-90
– Frequency: 5 GHz
– Gain: 17 dBi
– Dimensions: 367 x 63 x 41 mm
– Polarization: Dual-Linear

AM-5G19-120
– Frequency: 5 GHz
– Gain: 19 dBi
– Dimensions: 700 x 135 x 73 mm
– Polarization: Dual-Linear

AM-5G20-90
– Frequency: 5 GHz
– Gain: 20 dBi
– Dimensions: 700 x 135 x 70 mm
– Polarization: Dual-Linear

AM-9M13-120
– Frequency: 900 MHz
– Gain: 13 dBi
– Dimensions: 1290 x 290 x 134 mm
– Polarization: Dual-Linear

AM-2G16-90
– Frequency: 2.4 GHz
– Gain: 16 dBi
– Dimensions: 700 x 145 x 79 mm
– Polarization: Dual-Linear

AM-2G15-120
– Frequency: 2.4 GHz
– Gain: 15 dBi
– Dimensions: 700 x 145 x 93 mm
– Polarization: Dual-Linear

AM-3G18-120
– Frequency: 3 GHz
– Gain: 18 dBi
– Dimensions: 735 x 144 x 78 mm
– Polarization: Dual-Linear

Note: Dimensions exclude pole mount and RocketM (RocketM sold separately). Further details can be found in the manufacturer's documentation and manual.
