Ubiquiti Networks AMO-2G13 Network Antenna Sector Antenna 13 dBi

Ubiquiti AMO-2G13 – High Capacity and Innovation

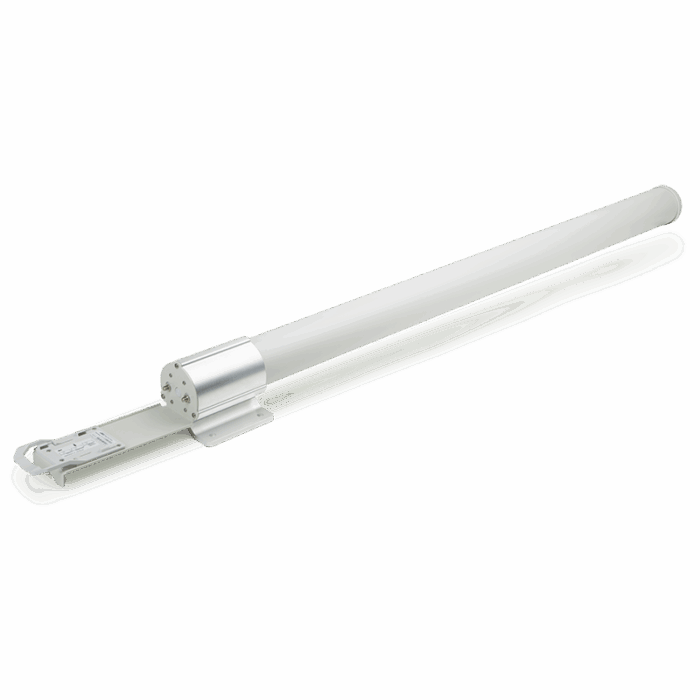

The Ubiquiti AMO-2G13 is an omnidirectional antenna designed specifically for airMax 802.11n standard devices. This antenna enhances the range and data transfer speed of access points and can be easily mounted with Rocket M devices.

Parameters

This antenna stands out for its 13 dBi gain, featuring both vertical and horizontal polarization, and has a standing wave ratio of 1.7:1. It operates in the 2.4 GHz band.

Use

When paired with Rocket M series products (which are sold separately), the device can establish a 2×2 MIMO Point-to-Multipoint base station.

High Quality

The AMO-2G13 is built with durable components, enabling it to perform efficiently even under adverse weather conditions. Incorporating the latest technologies ensures optimal performance and the highest quality.

Key Features

– Operates in the 2.4 GHz band
– 13 dBi gain
– Dual-Linear polarization
– 2×2 MIMO
– Measures 1390 x 122 x 105 mm

Comparison

Frequency
– AMO-2G10: 2.4 GHz
– AMO-2G13: 2.4 GHz
– AMO-3G12: 3 GHz
– AMO-5G10: 5 GHz
– AMO-5G13: 5 GHz

Gain
– AMO-2G10: 10 dBi
– AMO-2G13: 13 dBi
– AMO-3G12: 12 dBi
– AMO-5G10: 10 dBi
– AMO-5G13: 13 dBi

Dimensions*
– AMO-2G10: 1030 x 122 x 84 mm
– AMO-2G13: 1390 x 122 x 105 mm
– AMO-3G12: 1012 x 122 x 105 mm
– AMO-5G10: 582 x 90 x 65 mm
– AMO-5G13: 799 x 90 x 65 mm

Polarization
– AMO-2G10: Dual-Linear
– AMO-2G13: Dual-Linear
– AMO-3G12: Dual-Linear
– AMO-5G10: Dual-Linear
– AMO-5G13: Dual-Linear

For further details and instructions, refer to the manufacturer's documentation and manual.
