Ubiquiti Networks AMO-5G10 Network Antenna Sector Antenna 10 dBi

AMO-5G10 – Modern Ubiquiti Solution

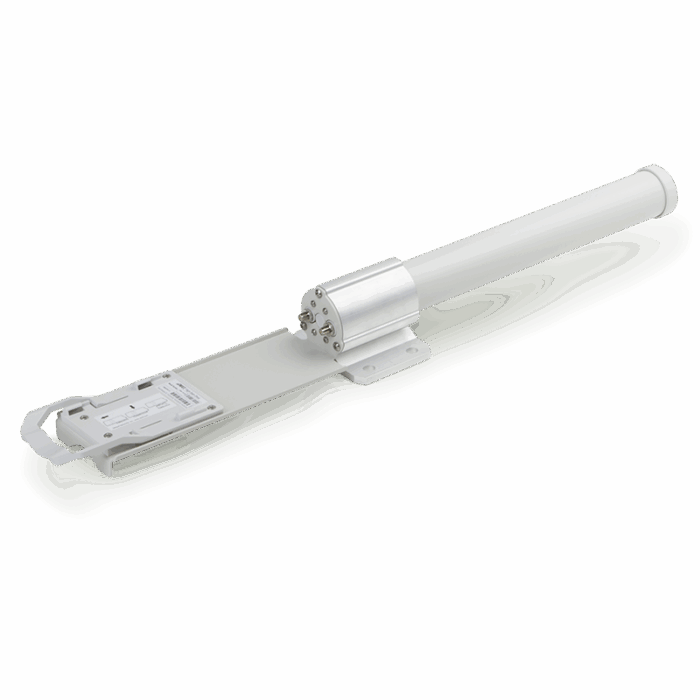

The Ubiquiti AMO-5G10 antenna is designed to enhance both the range and data transmission speed of your access point. As part of the airMax series, this antenna features high capacity and easy installation, making it an excellent choice even in unfavorable weather conditions due to its robust construction.

The Ubiquiti AMO-5G10 omnidirectional antenna operates in the 5 GHz band, offering a maximum gain of 10 dBi and a standing wave ratio of 1.6:1.

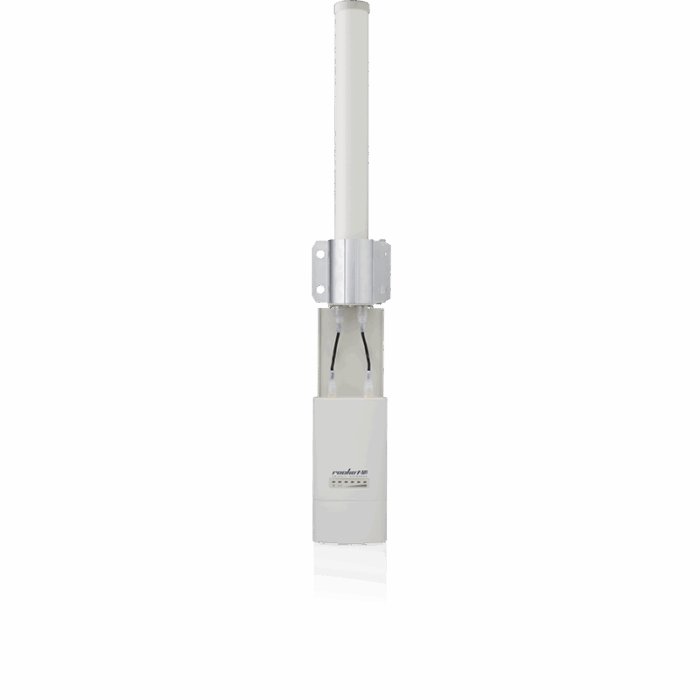

The AMO-5G10 antenna is compatible with AirMax 802.11n devices. When used in conjunction with Rocket M series products (which are sold separately), it can create a 2×2 MIMO Point-to-MultiPoint base station.

In terms of innovation, the device incorporates the latest technologies to achieve optimal performance, meeting the needs of even the most demanding users. It holds an EN 302 326 DN2 certification.

Key Features:
– Operates in the 5 GHz band
– Maximum antenna gain of 10 dBi
– Dual-Linear polarization
– Supports 2×2 MIMO
– Durable construction

Comparison:

AMO-2G10 | AMO-2G13 | AMO-3G12 | AMO-5G10 | AMO-5G13

Frequency:
– 2.4 GHz | 2.4 GHz | 3 GHz | 5 GHz | 5 GHz

Gain:
– 10 dBi | 13 dBi | 12 dBi | 10 dBi | 13 dBi

Dimensions:
– 1030 x 122 x 84 mm | 1390 x 122 x 105 mm | 1012 x 122 x 105 mm | 582 x 90 x 65 mm | 799 x 90 x 65 mm

Polarization:
– Dual-Linear | Dual-Linear | Dual-Linear | Dual-Linear | Dual-Linear

For further details, please refer to the manufacturer's documentation or user manual.
