PLANET ANT-FP14AD Network Antenna Directional Antenna N-Type 14 dBi

The PLANET ANT-FP14AD is a directional antenna with a maximum gain level of 14 dBi. It operates within the frequency band of 5.15 to 5.85 GHz and supports networking standards IEEE 802.11a and IEEE 802.11n. The antenna features an N-type connector with a female gender. The dimensions are 228 mm in width, 15 mm in depth, and 228 mm in height. Each pack contains one piece.

Performance

Frequency band
Frequency band
5.15 ~ 5.85 GHz
show more


Networking standards
Networking standards
IEEE 802.11a, IEEE 802.11n
show more


Impedance
Impedance
50 Ω
show more


Horizontal beam width
30°
show more


Vertical beam width
30°
show more


Antenna gain level (max)
Antenna gain level (max)
14 dBi
show more

Features

Antenna type
Antenna type
Directional antenna
show more


Connector gender
Connector gender
Female
show more


Antenna connector type
Antenna connector type
N-type
show more


Polarization
Dual polarization
show more


Voltage Standing Wave Ratio (VSWR)
1.5
show more


Product colour
Product colour
White
show more


Housing material
Housing material
Acrylonitrile butadiene styrene (ABS)
show more


Ultraviolet (UV) resistant
Yes
show more


Waterproof
Waterproof
Yes
show more


Survival wind speed
241.4 km/h
show more

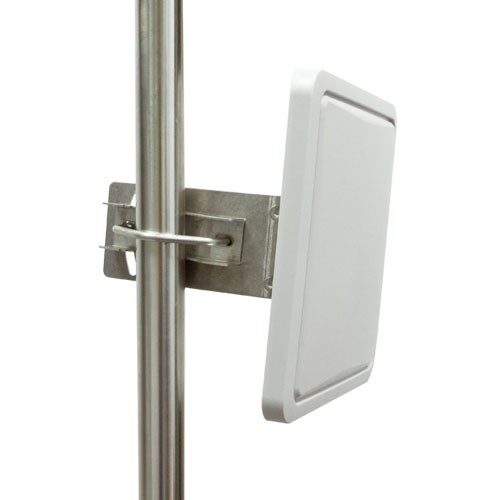

Mounting
Mounting
Pole
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more

Weight & dimensions

Width
Width
228 mm
show more


Depth
Depth
15 mm
show more


Height
Height
228 mm
show more


Weight
Weight
550 g
show more

Packaging content

Quantity per pack
1 pc(s)
show more


Mounting kit
Yes
show more
