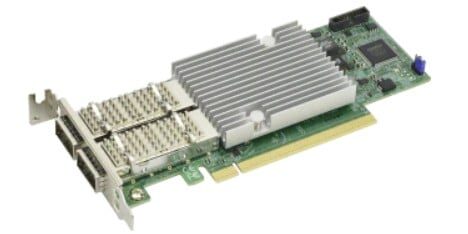

Supermicro OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCIe 4.0 x16, Based on Broadcom BCM57508

The Supermicro AOC-S100G-b2C is a high-performance expansion card designed to enhance connectivity capabilities. It features a host interface of PCIe and an output interface of QSFP28. The card is built in a low-profile form factor, making it suitable for various system configurations. It offers an impressive bandwidth capacity of 100 gigabits per second, ensuring fast and efficient data transfer. The typical power consumption of the expansion card is 19.51 watts. In terms of dimensions, the card has a width of 167.7 millimeters and a depth of 68.9 millimeters.

Ports & interfaces

Host interface
Host interface
PCIe
show more


Output interface
Output interface
QSFP28
show more


Expansion card form factor
Low-profile
show more


Expansion card standard
PCIe 4.0
show more

Design

Internal
Internal
Yes
show more

Features

Bandwidth
100 Gbit/s
show more

Power

Power consumption (typical)
Power consumption (typical)
19.51 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 55 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Storage relative humidity (H-H)
10 – 90%
show more

Technical details

Compliance certificates
RoHS
show more


Sustainability compliance
Yes
show more

Weight & dimensions

Width
Width
167.7 mm
show more


Depth
Depth
68.9 mm
show more
