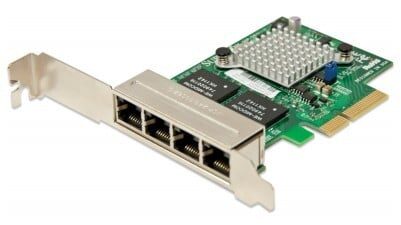

Supermicro AOC-SGP-I4 Network Card Internal Ethernet 1000 Mbit/s

The Supermicro AOC-SGP-I4 is an internal component designed for high-performance networking. Featuring wired connectivity technology, it utilizes a PCI Express host interface to connect to your system. The component offers an Ethernet interface, ensuring reliable network connections. With a maximum data transfer rate of 1000 Mbit/s, it provides fast and efficient data transmission. The product is finished in a sleek silver color, adding a modern touch to your hardware setup.

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Host interface
Host interface
PCI Express
show more


Interface
Interface
Ethernet
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


PCI Card form factor
PCI Card form factor
Full-height (low-profile)
show more

Network

Maximum data transfer rate
Maximum data transfer rate
1000 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Cabling technology
Cabling technology
10/100/1000BaseT(X)
show more


Auto MDIX IEEE
Yes
show more


Jumbo frames support
Yes
show more


Supported network protocols
Supported network protocols
TCP/UDP, IPv4, IPv6
show more

Design

Component for
Component for
PC
show more


Product colour
Product colour
Silver
show more


Internal
Internal
Yes
show more


LED indicators
LAN
show more

Power

Power consumption (typical)
Power consumption (typical)
5 W
show more

System requirements

Internet connection required
Yes
show more


Windows operating systems supported
Windows operating systems supported
Windows 7 Home Premium, Windows 8, Windows Vista Home Premium, Windows XP Home
show more


Mac operating systems supported
Mac operating systems supported
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 55 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more

Weight & dimensions

Depth
Depth
99.1 mm
show more


Height
Height
63.5 mm
show more

Technical details

Compliance certificates
RoHS
show more

Other features

Connection to PC
Connection to PC
Yes
show more


Flow control support
Yes
show more


On-chip QoS and Traffic Management
Yes
show more


Receive Side Scaling (RSS)
Yes
show more


Intel Virtual Machine Device Queues (VMDq)
Yes
show more


Wireless connection
Wireless connection
No
show more


Bundled software
Bundled software
– RedHat EL 5.5, 6.0; SuSe SLES 10 SP3, 11 SP1
– FreeBSD 8.0
– VMware ESX 4.0, 4.1, 5.0
– Xen
show more
