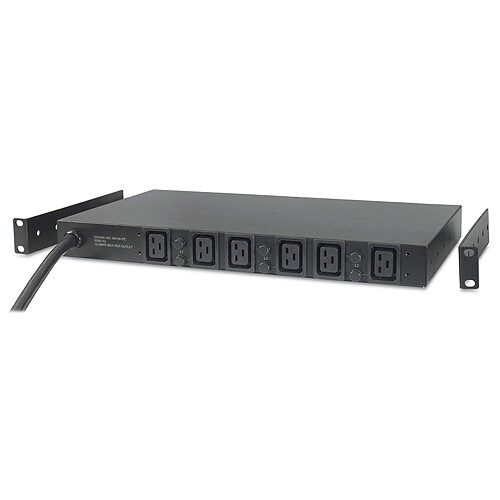

APC Basic Rack 14.4kW Power Distribution Unit (PDU) Black

APC Basic Rack with a power capacity of 14.4kW is available in black. It features an input connection type of Hubbell CS8365C and has six IEC 320 C19 output connections. The cable length is 2.44 meters. This unit operates at a nominal input voltage of 208 V and supports an AC input frequency between 50 to 60 Hz. The maximum input current per phase is 50 A. The dimensions of the unit are 437 mm in width, 254 mm in depth, and 44 mm in height.

Design

Product colour
Product colour
Black
show more

Ports & interfaces

Input connection type
Input connection type
Hubbell CS8365C
show more


Output connections
(6) IEC 320 C19
show more

Features

Cable length
Cable length
2.44 m
show more

Power

Nominal input voltage
Nominal input voltage
208 V
show more


AC input frequency
50 – 60 Hz
show more


Maximum input current per phase
50 A
show more


Maximum total current draw per phase
40 A
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-25 – 65 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
437 mm
show more


Depth
Depth
254 mm
show more


Height
Height
44 mm
show more


Weight
Weight
7.98 kg
show more
