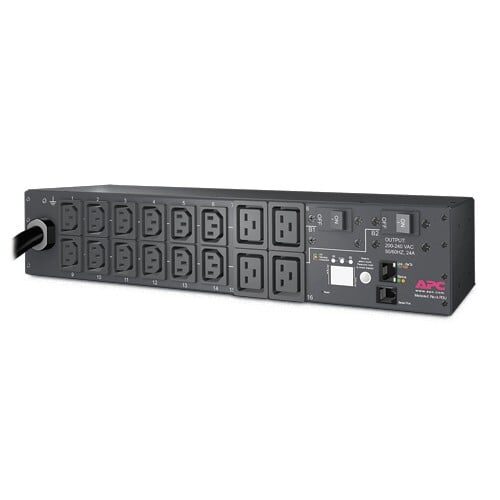

APC AP7811B Power Distribution Unit (PDU) with 16 AC Outlets, 2U, Black

The APC AP7811B is a metered power distribution unit (PDU) designed to fit into a 2U rack capacity. It features a sleek black design. This PDU is equipped with 16 AC outlets, which include C13 and C19 coupler types. The unit has an input connection type of NEMA L6-30P and comes with a cable measuring 3.66 meters in length. It is capable of monitoring current and can handle a maximum current of 30 amps. The nominal output voltage is 208 volts, with a maximum total current draw per phase of 24 amps.

Design

PDU types
PDU types
Metered
show more


Rack capacity
Rack capacity
2U
show more


Product colour
Product colour
Black
show more


On/off switch
On/off switch
Yes
show more

Ports & interfaces

AC outlets quantity
AC outlets quantity
16 AC outlet(s)
show more


AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more


Input connection type
Input connection type
NEMA L6-30P
show more

Features

LED indicators
Yes
show more


Cable length
Cable length
3.66 m
show more

Management features

Monitoring
Current
show more

Power

Maximum current
Maximum current
30 A
show more


Nominal output voltage
Nominal output voltage
208 V
show more


Maximum total current draw per phase
24 A
show more


Power protection features
Power protection features
Overload
show more

Certificates

Compliance certificates
RoHS
show more


Certification
cUL, CSA, FCC 15 A, ICES-003, PSE, UL 60950, UL, REACH
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
5 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-25 – 65 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
5 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 15000 m
show more

Weight & dimensions

Width
Width
444 mm
show more


Depth
Depth
112 mm
show more


Height
Height
88 mm
show more


Weight
Weight
3.36 kg
show more

Packaging content

Packaging content
Cord Retention Bracket(s), Installation Guide, Rack Mounting Brackets, User Manual
show more

Packaging data

Package weight
Package weight
5.42 kg
show more


Package width
Package width
508 mm
show more


Package depth
Package depth
368 mm
show more


Package height
Package height
140 mm
show more

Logistics data

Total carbon footprint (kg of CO2e)
Total carbon footprint (kg of CO2e)
7045.77
show more
