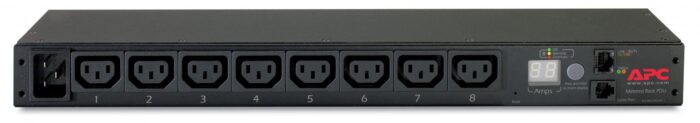

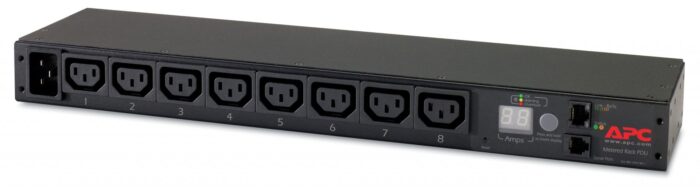

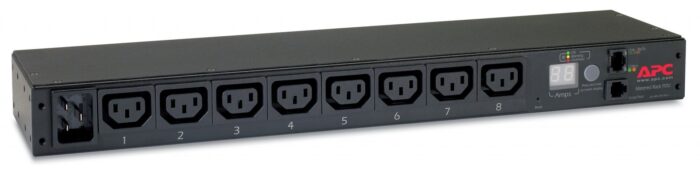

APC AP7821B Power Distribution Unit (PDU) with 8 AC Outlets, 0U/1U, Black

The APC AP7821B is a metered Power Distribution Unit (PDU) designed for versatile rack integration with the option for either horizontal or vertical mounting, fitting both 0U and 1U rack spaces. It is equipped with 8 AC outlets, specifically C13 couplers, and connects via a C20 power plug. The PDU provides comprehensive monitoring capabilities, including current, power, and voltage measurements. It operates with a nominal input voltage range of 200 to 230 volts, a maximum current of 20 amperes, and supports an AC input frequency between 50 and 60 Hz. Additionally, the product complies with various international safety and performance standards, holding certifications such as RoHS, cUL, C-tick, CE, CSA, FCC 15 A, GOST, ICES-003, UL 60950, UL Listed, VCCI, and VDE.

Design

PDU types
PDU types
Metered
show more


Rack capacity
Rack capacity
0U/1U
show more


Mounting
Mounting
Horizontal/Vertical
show more


Product colour
Product colour
Black
show more

Ports & interfaces

AC outlets quantity
AC outlets quantity
8 AC outlet(s)
show more


Power plug
Power plug
C20 coupler
show more


AC outlet types
AC outlet types
C13 coupler
show more


Input connection type
Input connection type
IEC-320 C20
show more

Features

LED indicators
Yes
show more

Management features

Monitoring
Current, Power, Voltage
show more

Power

Nominal input voltage
Nominal input voltage
200-230 V
show more


AC input frequency
50 – 60 Hz
show more


Maximum current
Maximum current
20 A
show more


Output voltage
230 V
show more


Load capacity
3680 VA
show more


Maximum input current per phase
16 A
show more


Maximum total current draw per phase
16 A
show more


Maximum power
Maximum power
3680 W
show more

Certificates

Compliance certificates
RoHS
show more


Certification
cUL, C-tick, CE, CSA, FCC 15 A, GOST, ICES-003, UL 60950, UL Listed, VCCI, VDE
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-25 – 65 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
5 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 15000 m
show more

Weight & dimensions

Width
Width
444 mm
show more


Depth
Depth
102 mm
show more


Height
Height
44 mm
show more


Weight
Weight
1.74 kg
show more

Packaging content

Packaging content
Cord Retention Bracket(s), Installation Guide, Rack Mounting Brackets, User Manual
show more

Packaging data

Package weight
Package weight
2.92 kg
show more


Package width
Package width
470 mm
show more


Package depth
Package depth
337 mm
show more


Package height
Package height
64 mm
show more
