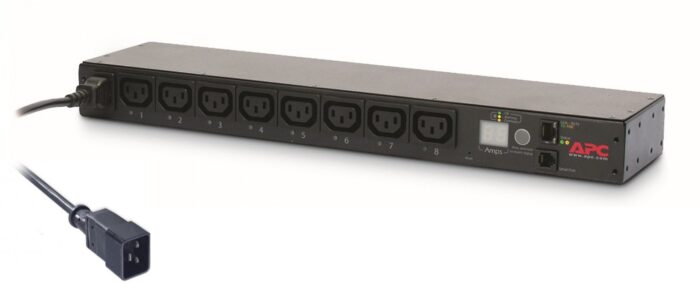

APC AP7921B Power Distribution Unit PDU 8 AC Outlets 0U/1U Black AP7921B

The APC AP7921B Power Distribution Unit (PDU) offers a versatile and efficient power management solution for your network setups. Featuring eight AC outlets, this 0U/1U black rack PDU can be mounted easily in both switched and standard configurations. It is designed with a variety of standardized features to enhance network efficiency, manageability, and functionality. The unit supports input and output connections of (8) C13 couplers, making it ideal for a range of power distribution needs, particularly in high-density environments.

Key features include the ability to remotely manage the rack PDUs, a local current monitoring display that provides warnings in case of overload, and individual remote outlet control for real-time load monitoring. The PDU also allows multi-tier user access for added security, with up to four access levels including Administrator and Read-Only User modes.

The unit supports flash-upgradeable firmware for easy network updates, eliminating the need to replace installed units when new features are introduced. It is rack-mountable, and power supply to the connected equipment can be managed via a single input source. A wide range of input and output connections makes it adaptable for different voltage requirements, with units capable of using up to 17.3kW from a single branch whip.

Enhanced cybersecurity features include secured interfaces with a modified password policy, ensuring peace of mind. The PDU also offers Gigabit Ethernet connectivity for standardized network management and outlet level grouping for flexible power sequencing. Network port sharing functionality is available for managing multiple PDUs from one IP address.

With additional features like alarm thresholds, EcoStruxure IT readiness, high retention outlets, and hydraulic magnetic circuit breakers, this PDU ensures a reliable power distribution solution. It delivers up to 1% metering accuracy, aligned with utility metering standards, and operates efficiently up to 60°C in high-density environments.

The unit is configured with an IEC 60320 C20 input connection, a cord length of 2.5 meters, and is capable of handling a nominal output voltage of 208V to 230V and input voltage range of 200V to 230V at 50-60 Hz frequency, supporting a maximum current of 16A and a load capacity of 3680 VA. Sustainability features are assured with RoHS compliance, making it an environmentally responsible choice for your power distribution needs.
