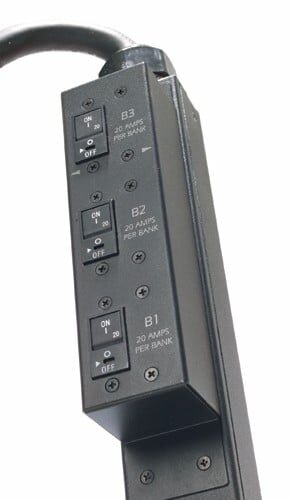

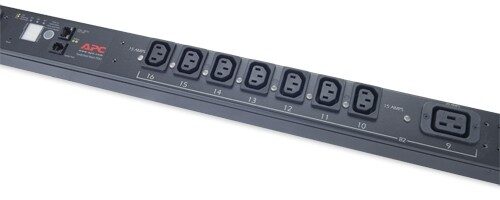

APC AP7968B Power Distribution Unit (PDU) with 24 AC Outlets, 0U, Black

The APC AP7968B is a monitored and switched Power Distribution Unit (PDU) designed for efficient power management in racks. It has a rack capacity of 0U and can be mounted vertically, making it easy to integrate into your existing setup. The PDU is equipped with 24 AC outlets, including C13 and C19 coupler types, and features a CS8365 input connection for seamless integration with your power system.

The unit includes a 0.91-meter cable for flexible installation. It offers current monitoring capabilities and provides outlet control options such as recycle and turn off for better management of your devices. The APC AP7968B is also firmware upgradeable via a network, ensuring you can keep the unit updated with the latest features and improvements.

With a nominal input voltage of 208 V, a maximum current of 35 A, and an AC input frequency range of 50 to 60 Hz, this PDU is suitable for various applications that require reliable and manageable power distribution.

Design

PDU types
PDU types
Monitored, Switched
show more


Rack capacity
Rack capacity
0U
show more


Mounting
Mounting
Vertical
show more


Product colour
Product colour
Black
show more

Ports & interfaces

AC outlets quantity
AC outlets quantity
24 AC outlet(s)
show more


AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more


Input connection type
Input connection type
CS8365
show more

Features

Cable length
Cable length
0.91 m
show more

Management features

Monitoring
Current
show more


Outlet control
Recycle, Turn off
show more


Firmware upgradeable via
Network
show more


Firmware upgradeable
Yes
show more

Power

Nominal input voltage
Nominal input voltage
208 V
show more


AC input frequency
50 – 60 Hz
show more


Maximum current
Maximum current
35 A
show more


Nominal output voltage
Nominal output voltage
208 V
show more


Load capacity
12500 VA
show more


Maximum total current draw per phase
35 A
show more


Power protection features
Power protection features
Overload
show more

Certificates

Compliance certificates
RoHS
show more


Certification
cUL, CSA, FCC Part 15 Class A, ICES-003, UL 60950, UL, REACH
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-25 – 65 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
5 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 15000 m
show more

Weight & dimensions

Width
Width
56 mm
show more


Depth
Depth
89 mm
show more


Height
Height
1778 mm
show more


Weight
Weight
8.08 kg
show more

Packaging content

Packaging content
Cord Retention Bracket(s), Documentation CD, Installation Guide, Rack Mounting Brackets, RS-232 configuration cable, Toolless Mounting Kit
show more

Packaging data

Package weight
Package weight
11 kg
show more


Package width
Package width
152 mm
show more


Package depth
Package depth
127 mm
show more


Package height
Package height
2108 mm
show more
