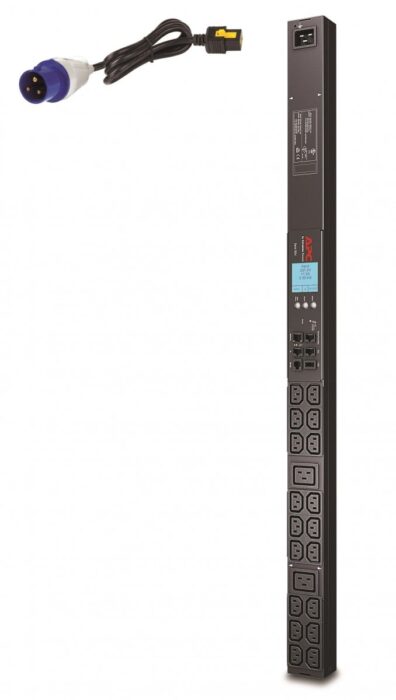

APC AP8858EU3 Power Distribution Unit (PDU) with 20 AC Outlets, 0U

The APC AP8858EU3 is a metered power distribution unit (PDU) designed for efficient energy management in a vertical mounting configuration with no extra rack space (0U). It features a total of 20 AC outlets, including C13 and C19 coupler types. The unit is equipped with an IEC309 power plug and comes with a cable length of 3 meters. It offers comprehensive monitoring capabilities, including current, power, and voltage measurements. The AC input frequency ranges from 50 to 60 Hz, and it delivers a nominal output voltage of 230 V. The PDU has a load capacity of 3680 VA, making it suitable for managing high-density power requirements.

Design

PDU types
PDU types
Metered
show more


Rack capacity
Rack capacity
0U
show more


Mounting
Mounting
Vertical
show more

Ports & interfaces

AC outlets quantity
AC outlets quantity
20 AC outlet(s)
show more

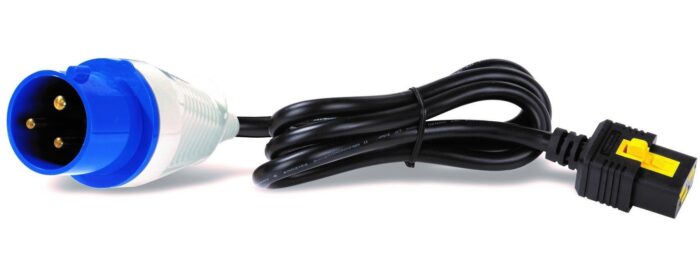

Power plug
Power plug
IEC309
show more


AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more


Input connection type
Input connection type
IEC 309 16A 2P+E
show more


Output connections
18x IEC 320 C13
2x IEC 320 C19
show more

Features

Cable length
Cable length
3 m
show more

Management features

Monitoring
Current, Power, Voltage
show more

Power

AC input frequency
50 – 60 Hz
show more


Nominal output voltage
Nominal output voltage
230 V
show more


Load capacity
3680 VA
show more


Maximum input current per phase
16 A
show more


Maximum total current draw per phase
16 A
show more


Maximum power
Maximum power
3680 W
show more

Certificates

Certification
CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE
RoHS, REACH
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
5 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-25 – 65 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
56 mm
show more


Depth
Depth
44 mm
show more


Height
Height
902 mm
show more


Weight
Weight
2.93 kg
show more

Packaging data

Package weight
Package weight
4.92 kg
show more


Package width
Package width
162 mm
show more


Package depth
Package depth
107 mm
show more


Package height
Package height
1124 mm
show more

Logistics data

Total carbon footprint (kg of CO2e)
Total carbon footprint (kg of CO2e)
13349.44
