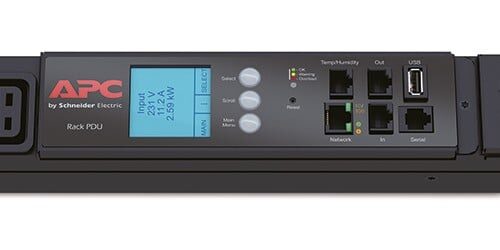

APC AP8868 Power Distribution Unit (PDU) with 42 AC Outlets, 0U, Black

The APC AP8868 is a metered Power Distribution Unit (PDU) designed for efficient power management in data centers. It offers a rack capacity of 0U and is suitable for vertical mounting. The unit features a total of 42 AC outlets, with 36 IEC 320 C13 and 6 IEC 320 C19 connections. It is equipped with a CS8365 input connection type and has a cable length of 1.83 meters. The PDU operates at a nominal input voltage of 208 V and supports an AC input frequency range of 50 to 60 Hz. It provides a nominal output voltage of 208 V as well. The APC AP8868 complies with various industry standards and certifications, including RoHS, cUL, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC, ICES-003, UL, and VCCI.

Design

PDU types
PDU types
Metered
show more


Rack capacity
Rack capacity
0U
show more


Mounting
Mounting
Vertical
show more


Product colour
Product colour
Black
show more

Ports & interfaces

AC outlets quantity
AC outlets quantity
42 AC outlet(s)
show more


Input connection type
Input connection type
CS8365
show more


Output connections
36 x IEC 320 C13
6 x IEC 320 C19
show more

Features

Cable length
Cable length
1.83 m
show more

Power

Nominal input voltage
Nominal input voltage
208 V
show more


AC input frequency
50 – 60 Hz
show more


Nominal output voltage
Nominal output voltage
208 V
show more


Load capacity
10000 VA
show more


Maximum input current per phase
35 A
show more


Maximum total current draw per phase
35 A
show more


Power protection features
Power protection features
Overload
show more

Certificates

Compliance certificates
RoHS
show more


Certification
cUL, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC, ICES-003, UL, VCCI
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 55 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-25 – 65 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
5 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 15000 m
show more

Weight & dimensions

Width
Width
56 mm
show more


Depth
Depth
51 mm
show more


Height
Height
1829 mm
show more


Weight
Weight
8.52 kg
show more

Packaging data

Package weight
Package weight
11.4 kg
show more


Package width
Package width
170 mm
show more


Package depth
Package depth
112 mm
show more


Package height
Package height
2050 mm
show more

Logistics data

Total carbon footprint (kg of CO2e)
Total carbon footprint (kg of CO2e)
51678.25
show more
