QuMax Omni with PoE Splitter for Robustel R3000 LoRa, 2x LTE Antennas + 1x LoRa + GPS + PoE Splitter

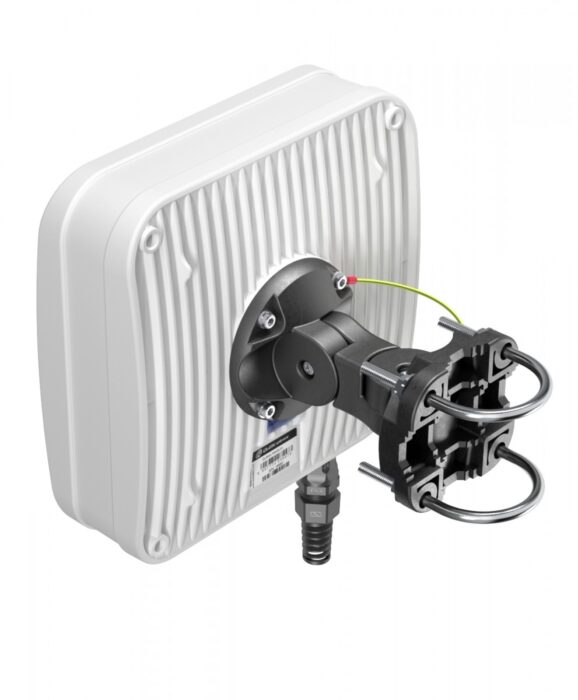

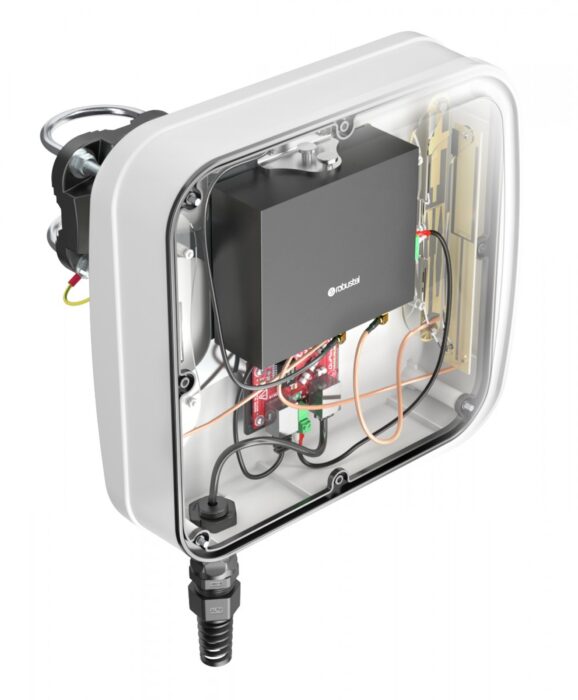

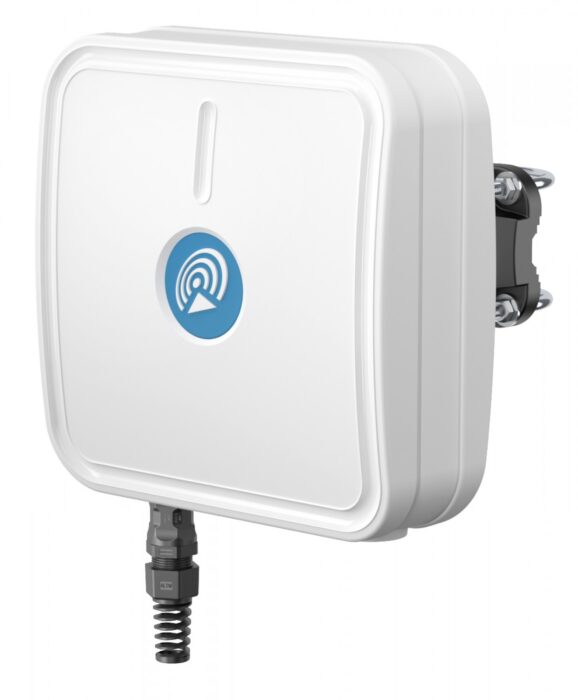

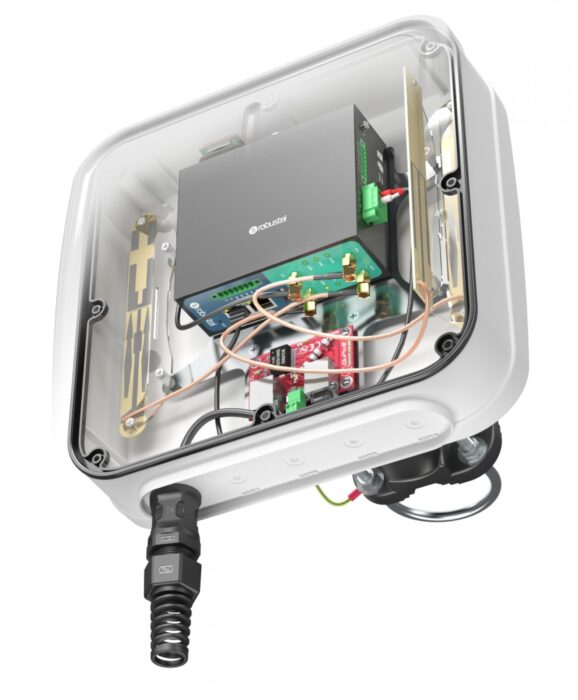

The QuWireless Antenna QuMax Omni is designed for use with the Robustel R3000 LoRa device. This omni-directional antenna offers a maximum gain level of 3 dBi and operates within a frequency band of 1.7 to 2.7 GHz. It features an impedance of 50 ohms and a PoE/LAN type antenna connector. The antenna is vertically polarized and measures 160 mm in width, 160 mm in depth, and 240 mm in height. The product is sold as a single unit per pack.

Performance

Frequency band
Frequency band
1.7 – 2.7 GHz
show more


Impedance
Impedance
50 Ω
show more


Vertical beam width
25°
show more


Horizontal beam width
360°
show more


Antenna gain level (max)
Antenna gain level (max)
3 dBi
show more

Features

Antenna type
Antenna type
Omni-directional antenna
show more


Antenna connector type
Antenna connector type
PoE/LAN
show more


Polarization
Vertical polarization
show more


Voltage Standing Wave Ratio (VSWR)
1.5 – 2.5
show more


Product colour
Product colour
White
show more


Housing material
Housing material
Acrylonitrile butadiene styrene (ABS), Aluminium, Polytetrafluoroethylene (PTFE)
show more


International Protection (IP) code
International Protection (IP) code
IP67
show more


Mounting
Mounting
Ceiling/wall
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 80 °C
show more

Weight & dimensions

Width
Width
160 mm
show more


Depth
Depth
160 mm
show more


Height
Height
240 mm
show more


Weight
Weight
1.5 kg
show more

Packaging content

Quantity per pack
1 pc(s)
