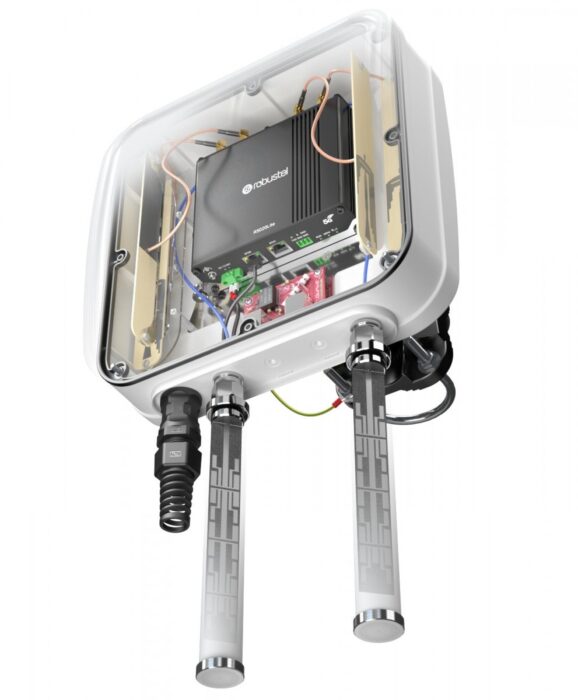

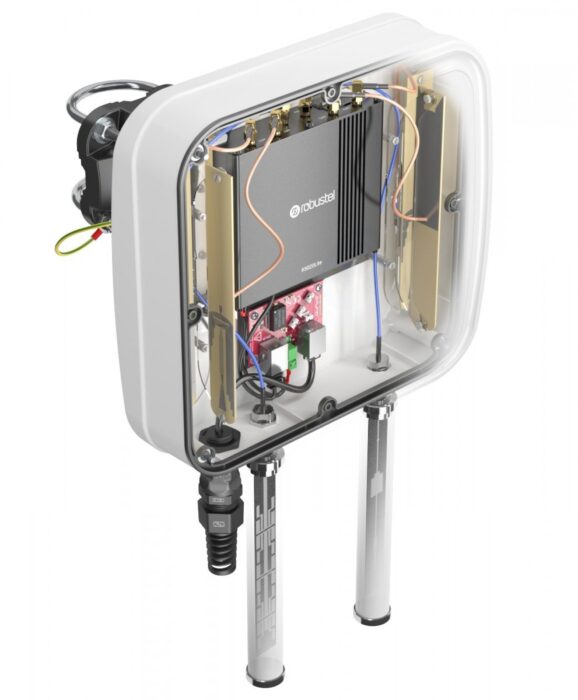

QuMax Omni with PoE Splitter for Robustel R5020 Lite, 4 Antenna 5G + 2 Wi-Fi Dual Band + PoE Splitter

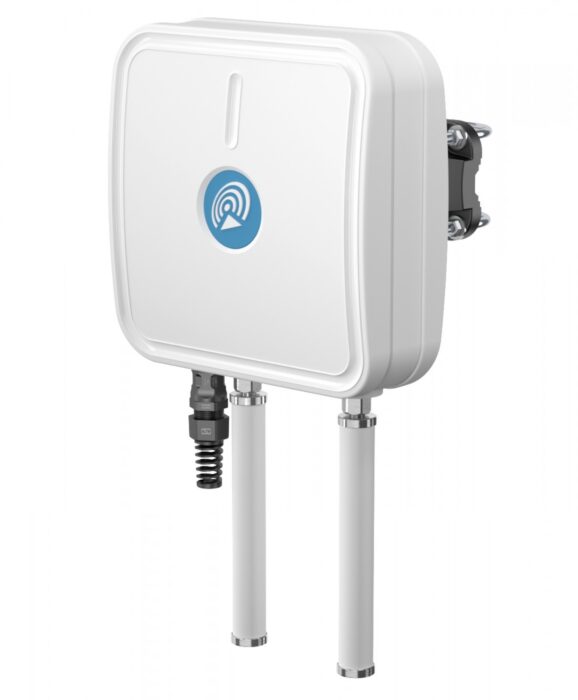

The QuWireless AR5020LMO is an omni-directional antenna with a maximum gain level of 7.5 dBi. It operates across the frequency bands of 2.4 GHz, 5 GHz, and 7 GHz, featuring an impedance of 50 ohms. The antenna is designed with vertical polarization and uses a PoE/LAN type connector. Its dimensions are 272 mm in width, 276 mm in depth, and 96 mm in height.

Performance

Frequency band
Frequency band
2.4/5/7 GHz
show more


Impedance
Impedance
50 Ω
show more


Antenna gain level (max)
Antenna gain level (max)
7.5 dBi
show more

Features

Antenna type
Antenna type
Omni-directional antenna
show more


Antenna connector type
Antenna connector type
PoE/LAN
show more


Polarization
Vertical polarization
show more


Product colour
Product colour
White
show more


Housing material
Housing material
Aluminium, Polytetrafluoroethylene (PTFE)
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more

Weight & dimensions

Width
Width
272 mm
show more


Depth
Depth
276 mm
show more


Height
Height
96 mm
show more
