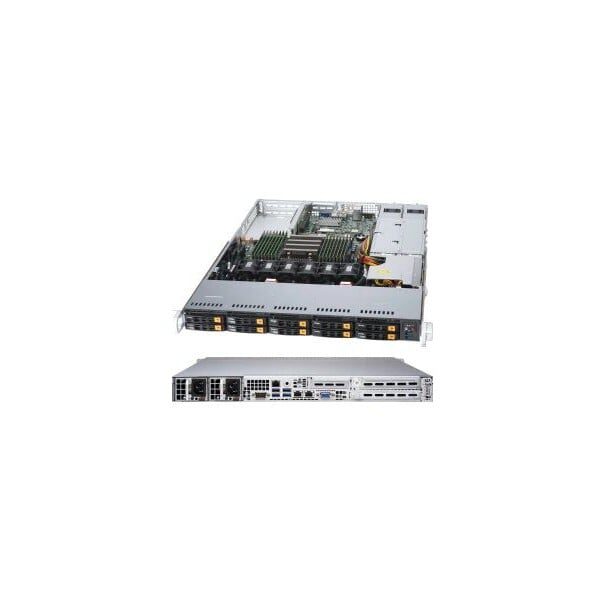

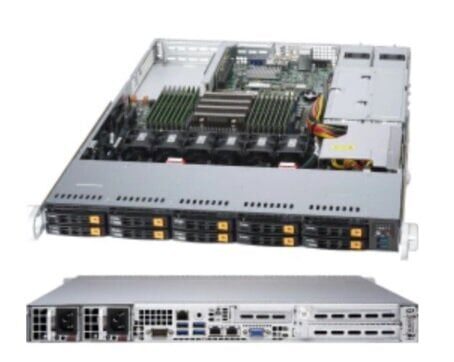

Supermicro AS-1114S-WN10RT H12SSW-NTR, CSE-116TS-R706WBP5-N10, RoHS

The Supermicro AS-1114S-WN10RT features a Socket SP3 for AMD processors and is compatible with the AMD EPYC series. It supports DDR4-SDRAM memory, with RDIMM clock speeds of up to 3200 MHz and a memory form factor of 288-pin DIMM. For storage, it accommodates sizes of 3.5 and M.2, supporting both HDD and SSD types with interfaces such as PCI Express and Serial ATA III. The model includes an Aspeed AST2500 on-board graphics card. Additionally, it offers PC health monitoring for CPU, fan, and temperature.

Processor

Built-in processor
Built-in processor
No
show more


Processor socket
Processor socket
Socket SP3
show more


Processor family
Processor family
AMD
show more


Number of processors supported
Number of processors supported
1
show more


Compatible processor series
Compatible processor series
AMD EPYC
show more

Memory

Number of DIMM slots
Number of DIMM slots
16
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Supported RDIMM clock speeds
3200 MHz
show more


Memory form factor
Memory form factor
288-pin DIMM
show more


ECC
ECC
Yes
show more

Storage

Number of storage drives supported
Number of storage drives supported
10
show more


Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Storage drive sizes supported
Storage drive sizes supported
3.5,M.2
show more


Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
PCI Express, Serial ATA III
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2500
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
3
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more

Expansion slots

PCI Express slots version
4.0
show more


PCI Express x16 slots
3
show more


Number of M.2 (M) slots
2
show more

Features

PC health monitoring
CPU, Fan, Temperature
show more


Integrated BMC with IPMI
Yes
show more


Backplanes support
Yes
show more

Technical details

Compliance certificates
RoHS
show more

BIOS

BIOS type
BIOS type
AMI
show more


BIOS memory size
256 Mbit
show more

Design

Chassis type
Chassis type
Rack (1U)
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


On/off switch
On/off switch
Yes
show more


Cooling type
Cooling type
Active
show more


Number of fans
Number of fans
6 fan(s)
show more

Power

Power supply
Power supply
750 W
show more


Number of main power supplies
Number of main power supplies
1
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


Number of redundant power supplies supported
1
show more


Number of redundant power supplies installed
1
show more


AC input voltage
AC input voltage
100 – 240 V
show more


DC output current (+12 V)
62 A
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Weight
Weight
11.3 kg
show more


Width
Width
437 mm
show more


Height
Height
43 mm
show more


Depth
Depth
597 mm
show more


Power supply dimensions (WxDxH)
54.5 x 320 x 40.25 mm
show more

Packaging data

Package weight
Package weight
17.7 kg
show more
