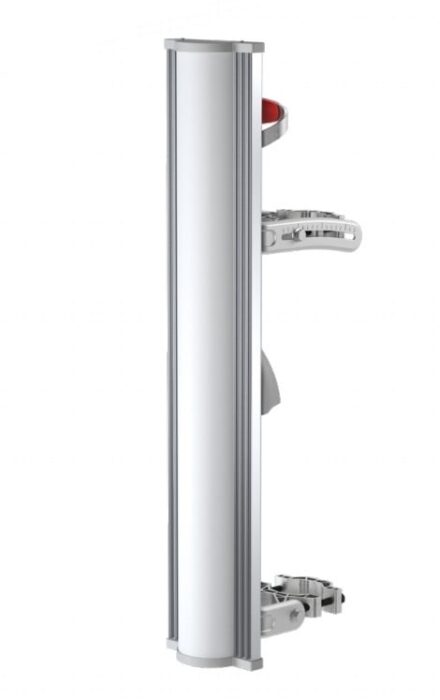

RF Elements AS-2-14 Network Antenna Panel Antenna RP-SMA 14 dBi

The RF Elements AS-2-14 is a panel antenna with a maximum antenna gain level of 14 dBi. It operates within a frequency band of 2.4 GHz and has an impedance of 50 ohms. The antenna features dual polarization and connects via an RP-SMA connector. Its dimensions are 160 mm in width, 63 mm in depth, and 804 mm in height. The package dimensions are 167 mm in width, 130 mm in depth, and 834 mm in height. Each package contains one unit.

Performance

Frequency band
Frequency band
2.4 GHz
show more


Impedance
Impedance
50 Ω
show more


Vertical beam width
112°
show more


Horizontal beam width
112°
show more


Vertical beam width (2.4 GHz)
15°
show more


Horizontal beam width (2.4 GHz)
15°
show more


Horizontal beam width (5 GHz)
21°
show more


Vertical beam width (5 GHz)
21°
show more


Antenna gain level (max)
Antenna gain level (max)
14 dBi
show more

Features

Antenna type
Antenna type
Panel antenna
show more


Antenna connector type
Antenna connector type
RP-SMA
show more


Polarization
Dual polarization
show more


Voltage Standing Wave Ratio (VSWR)
1.6
show more


Housing material
Housing material
Acrylonitrile butadiene styrene (ABS), Aluminium, Stainless steel
show more


International Protection (IP) code
International Protection (IP) code
IP55
show more


Ultraviolet (UV) resistant
Yes
show more


Wind load
160
show more


Survival wind speed
160 km/h
show more


Isolation
30 dB
show more


Mounting pipe
40 – 80 mm
show more


Downtilt
12°
show more


Front to back ratio
21 dB
show more


Purpose
Purpose
Outdoor
show more


Mounting
Mounting
Pole
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-35 – 60 °C
show more

Weight & dimensions

Width
Width
160 mm
show more


Depth
Depth
63 mm
show more


Height
Height
804 mm
show more


Weight
Weight
3.7 kg
show more

Packaging data

Package width
Package width
167 mm
show more


Package depth
Package depth
130 mm
show more


Package height
Package height
834 mm
show more


Package weight
Package weight
4 kg
show more

Packaging content

Quantity per pack
1 pc(s)
show more
