Supermicro AS-2014CS-TR H12SSW-AN6, CSE-LA26AC12-R920AW

The Supermicro AS-2014CS-TR is a high-performance server designed for demanding computing needs. It is equipped with an AMD EPYC processor from the 7000 series, ensuring powerful processing capabilities. The server supports DDR4-SDRAM for its internal memory, providing efficient and reliable performance. For storage, the server accommodates 3.5" hard drives and supports both SATA III and Serial Attached SCSI (SAS) interfaces, offering versatile options for data storage.

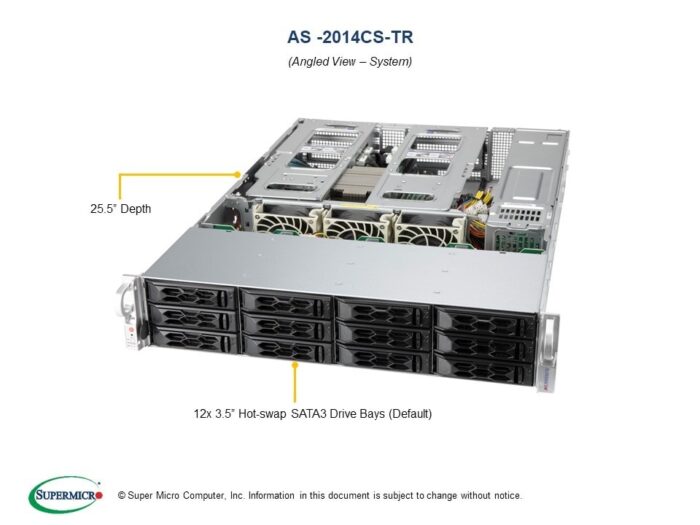

In terms of connectivity, the server includes Ethernet LAN capabilities, enabling robust network communication. The server's power supply is rated at 920 W and includes support for a redundant power supply (RPS), enhancing its reliability and uptime. The Supermicro AS-2014CS-TR is housed in a 2U rack-mountable chassis, making it suitable for data centers and enterprise environments where space efficiency and scalability are important.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor family
Processor family
AMD EPYC
show more


Processor model
Processor model
7000
show more


Intelligent Platform Management Interface (IPMI) support
Yes
show more

Memory

Internal memory type
Internal memory type
DDR4-SDRAM
show more


Memory clock speed
Memory clock speed
3200 MHz
show more


ECC
ECC
Yes
show more


Memory slots
Memory slots
16
show more


Maximum internal memory
Maximum internal memory
4 TB
show more

Storage

HDD interface
HDD interface
SATA III, Serial Attached SCSI (SAS)
show more


HDD size
HDD size
3.5"
show more


Number of HDDs supported
Number of HDDs supported
12
show more


Supported HDD sizes
Supported HDD sizes
3.5"
show more


RAID support
RAID support
No
show more


Hot-swap
Yes
show more


Optical drive type
Optical drive type
No
show more

Graphics

On-board graphics card
On-board graphics card
Yes
show more


On-board graphics card model
On-board graphics card model
Aspeed AST2600
show more

Network

Wi-Fi
Wi-Fi
No
show more


Ethernet LAN
Ethernet LAN
Yes
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Expansion slots

PCI Express x16 slots
6
show more

Design

Chassis type
Chassis type
Rack (2U)
show more


Product colour
Product colour
Black
show more


Rack mounting
Rack mounting
Yes
show more

Performance

Trusted Platform Module (TPM)
No
show more


BIOS type
BIOS type
EEPROM
show more

Software

Operating system installed
Operating system installed
No
show more

Power

Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


Power supply
Power supply
920 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Certificates

Certification
80 PLUS Platinum
show more

Weight & dimensions

Width
Width
437 mm
show more


Height
Height
89 mm
show more


Depth
Depth
648 mm
show more


Weight
Weight
26.8 kg
show more


Package width
Package width
670.6 mm
show more


Package depth
Package depth
871.2 mm
show more


Package height
Package height
289.6 mm
show more
