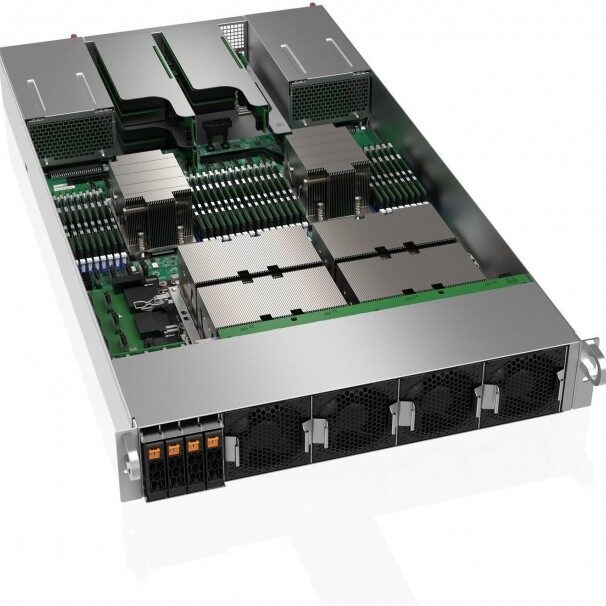

Supermicro AS-2124GQ-NART 2U 4-GPU H12 SXM4 GPU System, MBD-H12DSG-Q-CPU6, RoHS

The Supermicro AS-2124GQ-NART features a Socket SP3 processor socket. It supports DDR4-SDRAM memory types with RDIMM clock speeds of up to 3200 MHz. This product supports storage drive sizes of 2.5 inches and is compatible with Serial ATA and Serial Attached SCSI (SAS) storage drive interfaces. It comes equipped with a 10 Gigabit Ethernet interface type. Additionally, it offers PC health monitoring features for the CPU, fan, and temperature.

Processor

Built-in processor
Built-in processor
No
show more


Processor socket
Processor socket
Socket SP3
show more


Number of processors supported
Number of processors supported
2
show more

Memory

Number of DIMM slots
Number of DIMM slots
32
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Supported RDIMM clock speeds
3200 MHz
show more


ECC
ECC
Yes
show more

Storage

Number of storage drives supported
Number of storage drives supported
4
show more


Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Storage drive sizes supported
Storage drive sizes supported
2.5"
show more


Supported storage drive interfaces
Serial ATA, Serial Attached SCSI (SAS)
show more

Network

Ethernet interface type
10 Gigabit Ethernet
show more


Ethernet LAN
Ethernet LAN
Yes
show more

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


COM ports quantity
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more

Expansion slots

PCI Express x16 (Gen 4.x) slots
4
show more


PCI Express x8 (Gen 4.x) slots
1
show more

Features

PC health monitoring
CPU, Fan, Temperature
show more

BIOS

BIOS type
BIOS type
AMI
show more


BIOS memory size
256 Mbit
show more

Design

Chassis type
Chassis type
Rack (2U)
show more


Cooling type
Cooling type
Active
show more


Hot-swap fan module
Yes
show more

Power

Power supply
Power supply
2200 W
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more


80 PLUS certification
80 PLUS Platinum
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Weight
Weight
35.6 kg
show more


Height
Height
89 mm
show more


Depth
Depth
830.3 mm
show more


Width
Width
437 mm
show more
