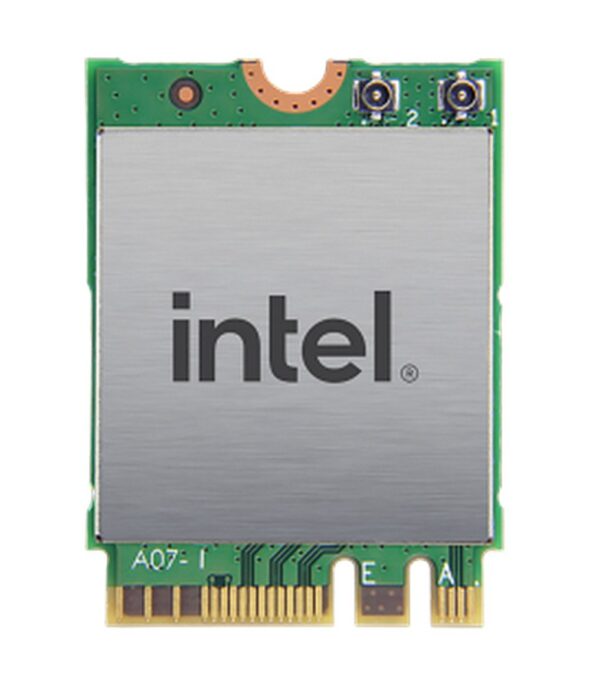

Intel Wi-Fi 6 AX200 Network Card M.2 2230 / M.2 1216 – Bluetooth 5.0, 802.11ax

The Intel Wi-Fi 6 AX200 (Gig+) is an internal wireless connectivity solution designed for enhanced performance. It connects via PCI Express and operates as a WLAN interface. Boasting a maximum data transfer rate of 2400 Mbit/s, this product supports the advanced Wi-Fi 6 (802.11ax) standard. It features dual-band capabilities, functioning on both 2.4 GHz and 5 GHz frequencies, and utilizes a 2×2 antenna configuration to ensure robust and reliable connections.

Ports & interfaces

Connectivity technology
Connectivity technology
Wireless
show more


Host interface
Host interface
PCI Express
show more


Interface
Interface
WLAN
show more

Network

Maximum data transfer rate
Maximum data transfer rate
2400 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w
show more


Wi-Fi
Wi-Fi
Yes
show more


Wi-Fi band
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
show more


Top Wi-Fi standard
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
show more


Wi-Fi standards
Wi-Fi standards
Wi-Fi 6 (802.11ax)
show more


Security algorithms
Security algorithms
64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
show more


MU-MIMO
Yes
show more


Bluetooth
Bluetooth
Yes
show more


Bluetooth version
Bluetooth version
5
show more

Design

Component for
Component for
PC/Laptop
show more


Internal
Internal
Yes
show more


Antenna type
Antenna type
2×2
show more


Package size
22 x 30 x 2.4 mm
show more

System requirements

Compatible operating systems
Compatible operating systems
Windows 10, 64-bit*|Linux*
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64
show more


Linux operating systems supported
Linux operating systems supported
Yes
show more


Other operating systems supported
ChromeOS
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 80 °C
show more

Weight & dimensions

Width
Width
22 mm
show more


Depth
Depth
30 mm
show more


Height
Height
2.4 mm
show more


Weight
Weight
2.83 g
show more

Logistics data

Harmonized System (HS) code
85176990
show more

Other features

Minimum operating temperature
0 °C
show more


Maximum operating temperature
80 °C
show more


Processor family
Processor family
Intel Wi-Fi 6 Products
show more


Export Control Classification Number (ECCN)
5A992CN3
show more


Commodity Classification Automated Tracking System (CCATS)
G165483
show more


Compliance
FIPS, FISMA
show more


Status
Launched
show more


Product type
Product type
Wireless
show more


Supported Under vPro
Yes
show more


Product brief URL
https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf
show more


Interface type
Wi-Fi(PCIe), BT(USB)
show more


Launch date
Q2'19
show more


Product series
Intel® Wireless Products
show more


Product codename
Cyclone Peak
