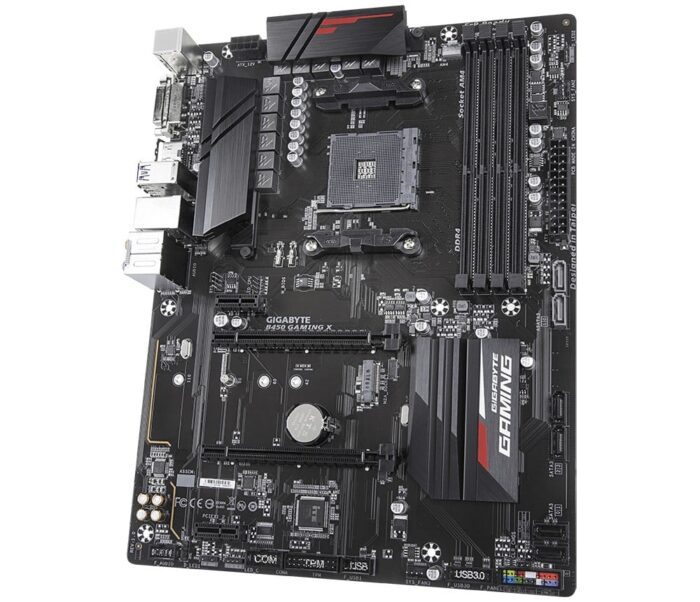

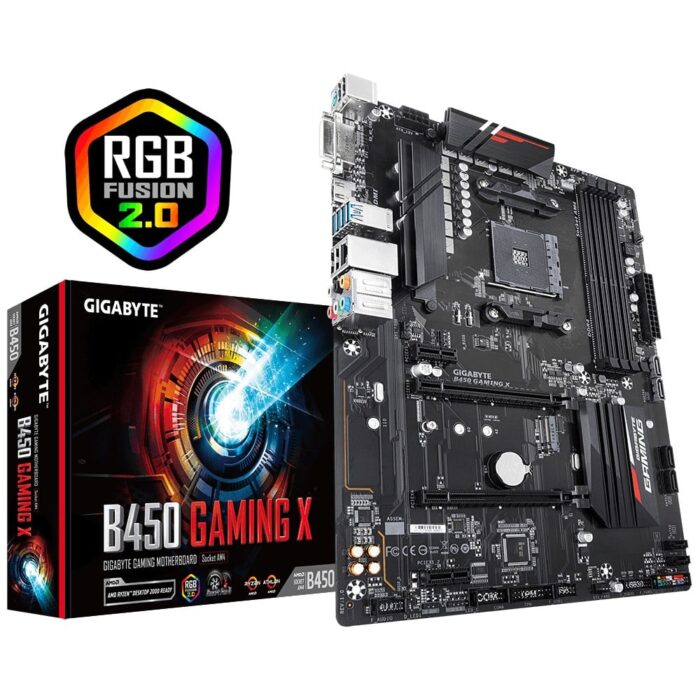

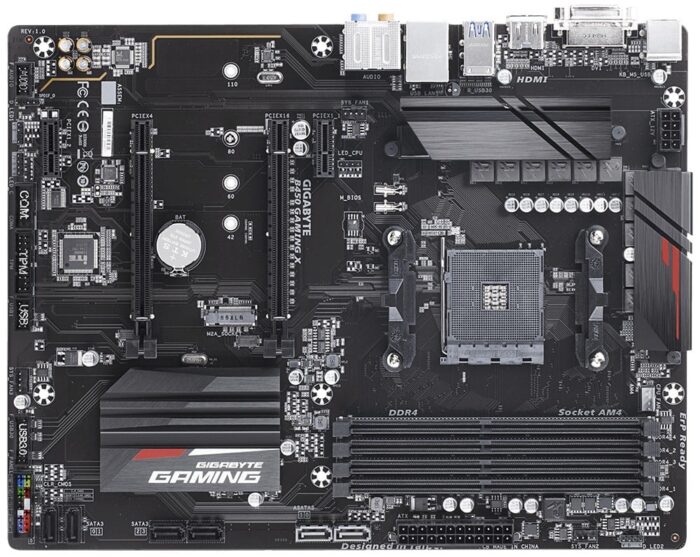

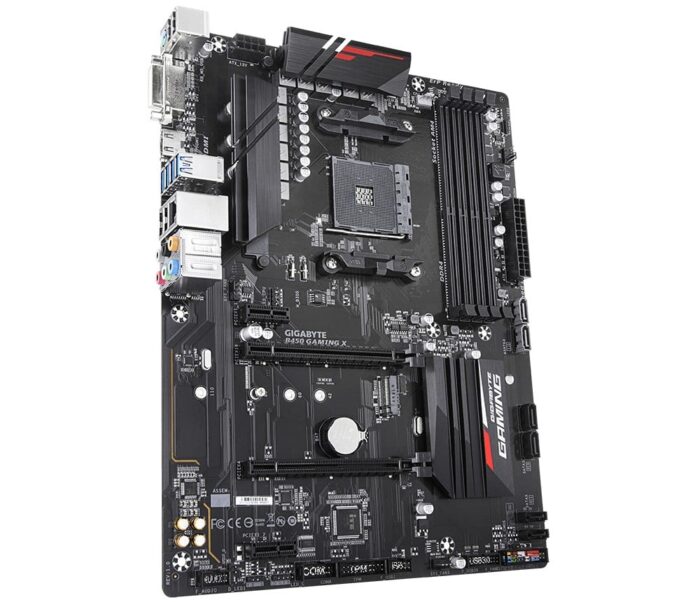

Gigabyte B450 Gaming X AMD B450 Socket AM4 ATX

The GIGABYTE B450 Gaming X is designed for AMD processors, featuring a Socket AM4 for compatibility with AMD Athlon, AMD Ryzen 2000 Series, and AMD Ryzen 3000 Series. It supports DDR4-SDRAM memory types with a maximum internal memory capacity of 64 GB, utilizing DIMM memory slots. For storage, the motherboard offers support for SATA III drive interfaces and RAID levels 0, 1, and 10. It also supports Quad-GPU CrossFireX parallel processing technology, allowing for high-performance graphics processing. The maximum resolution supported is 4096 x 2160 pixels. Additionally, it includes a Gigabit Ethernet interface for high-speed network connectivity.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM4
show more


Compatible processor series
Compatible processor series
AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2667,2933 MHz
show more


Maximum internal memory
Maximum internal memory
64 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive interfaces
SATA III
show more


RAID levels
RAID levels
0, 1, 10
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Quad-GPU CrossFireX
show more


Maximum resolution
Maximum resolution
4096 x 2160 pixels
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
1
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
6
show more


S/PDIF out connector
Yes
show more


Front panel audio connector
Yes
show more


Front panel connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
3
show more


12V power connector
Yes
show more


Serial port headers
1
show more


TPM connector
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
4
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


HDMI version
2.0
show more


DVI-D ports quantity
DVI-D ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
AMD B450
show more


Audio chip
Realtek ALC892
show more


Audio output channels
Audio output channels
7.1 channels
show more


PC health monitoring
Fan, Temperature, Voltage
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
show more

Expansion slots

PCI Express x1 (Gen 2.x) slots
2
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
2
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
128 Mbit
show more


ACPI version
5.0
show more


Clear CMOS jumper
Yes
show more


System Management BIOS (SMBIOS) version
2.7
show more


Desktop Management Interface (DMI) version
2.7
show more

Processor special features

Intel Extreme Memory Profile (XMP)
Yes
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
305 mm
show more


Depth
Depth
235 mm
show more

Packaging content

Cables included
SATA
show more


Drivers included
Yes
show more


Bundled software
Bundled software
Norton Internet Security (OEM)
Realtek 8118 Gaming LAN Bandwidth Control Utility
show more

Other features

Quick installation guide
Yes
show more
