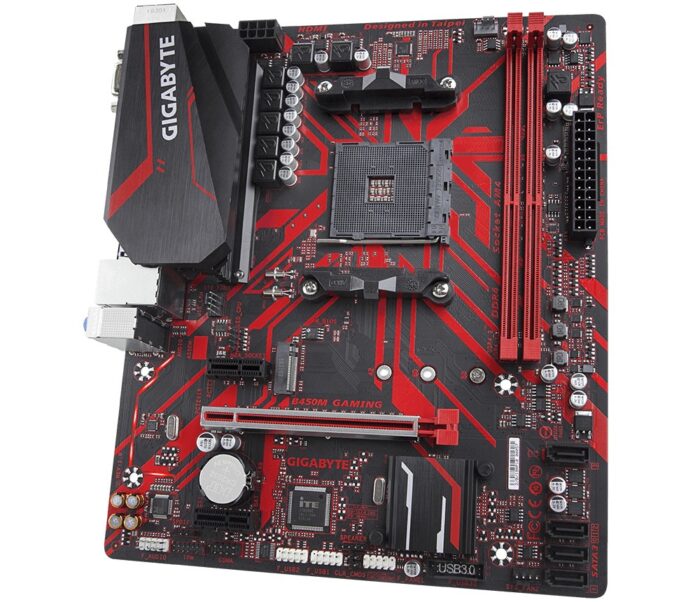

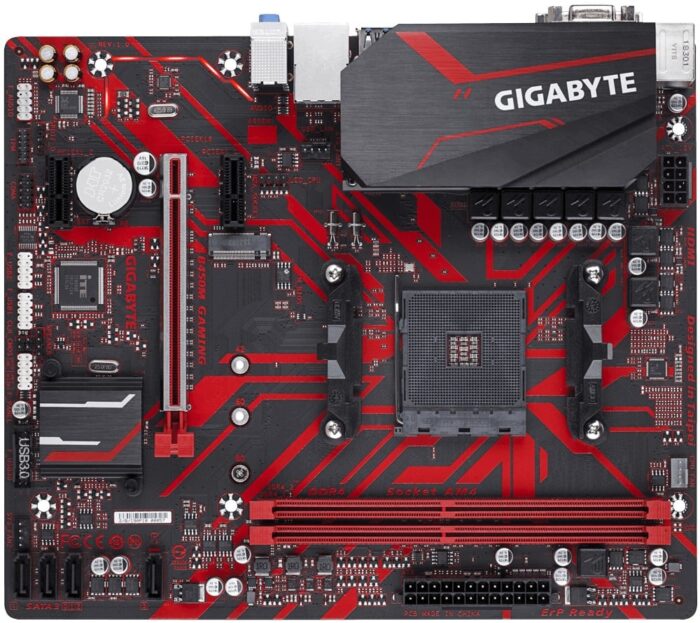

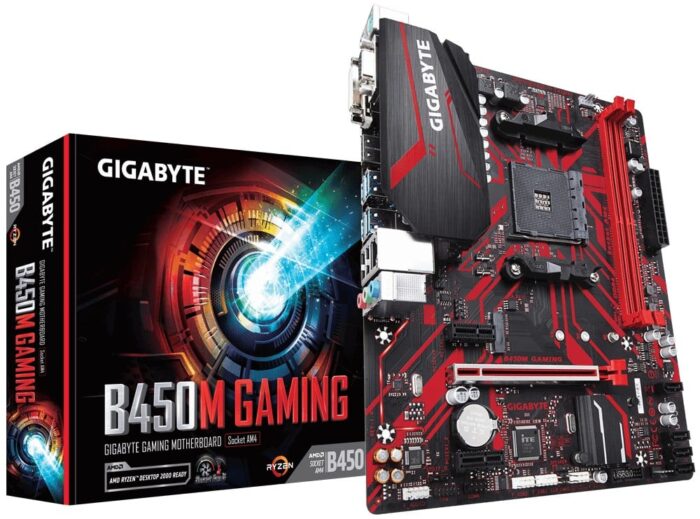

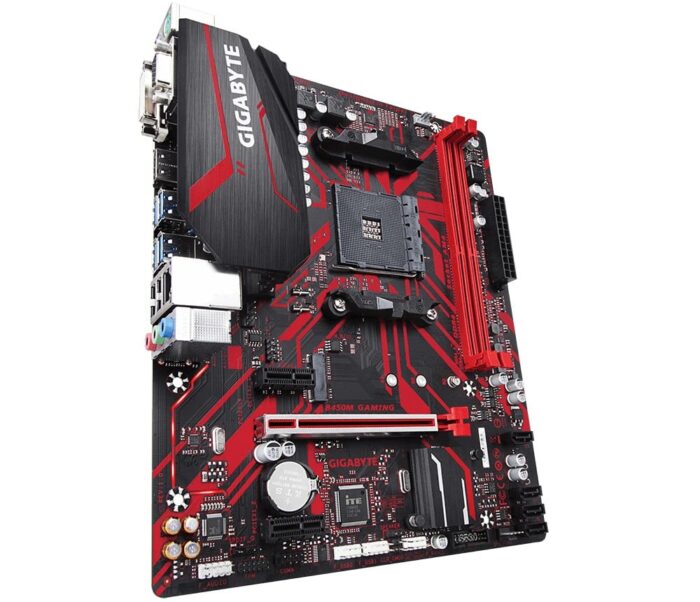

Gigabyte B450M GAMING Motherboard AMD B450 Socket AM4 Micro ATX

GIGABYTE B450M GAMING is designed for use with AMD processors and supports AMD Athlon, AMD Ryzen 2000 Series, and AMD Ryzen 3000 Series with its Socket AM4. It is compatible with DDR4-SDRAM memory types and can accommodate a maximum internal memory of 32 GB through its DIMM memory slots. The motherboard offers RAID support for levels 0, 1, and 10, providing versatile data protection and performance options. It supports a maximum resolution of 4096 x 2160 pixels for high-quality display output. Additionally, it includes a Gigabit Ethernet interface for reliable and fast internet connectivity.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM4
show more


Compatible processor series
Compatible processor series
AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2667,2933 MHz
show more


Maximum internal memory
Maximum internal memory
32 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

RAID levels
RAID levels
0, 1, 10
show more

Graphics

On-board graphics card
On-board graphics card
Yes
show more


Maximum resolution
Maximum resolution
4096 x 2160 pixels
show more


Discrete graphics support
Yes
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


S/PDIF out connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
2
show more


Chassis intrusion connector
Yes
show more


EPS power connector (8-pin)
Yes
show more


TPM connector
Yes
show more


Serial port headers
1
show more


RGB LED pin header
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DVI-D ports quantity
DVI-D ports quantity
1
show more


Headphone outputs
Headphone outputs
3
show more


S/PDIF out port
S/PDIF out port
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more

Features

Motherboard chipset
Motherboard chipset
AMD B450
show more


Audio chip
Realtek ALC887
show more


Audio output channels
Audio output channels
7.1 channels
show more


PC health monitoring
Fan, Temperature, Voltage
show more


Component for
Component for
Mini PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
show more

Expansion slots

PCI Express x1 (Gen 2.x) slots
2
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
1
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
128 Mbit
show more


ACPI version
5.0
show more


Clear CMOS jumper
Yes
show more


System Management BIOS (SMBIOS) version
2.7
show more


Desktop Management Interface (DMI) version
2.7
show more


Plug and Play
Plug and Play
Yes
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
205 mm
show more
