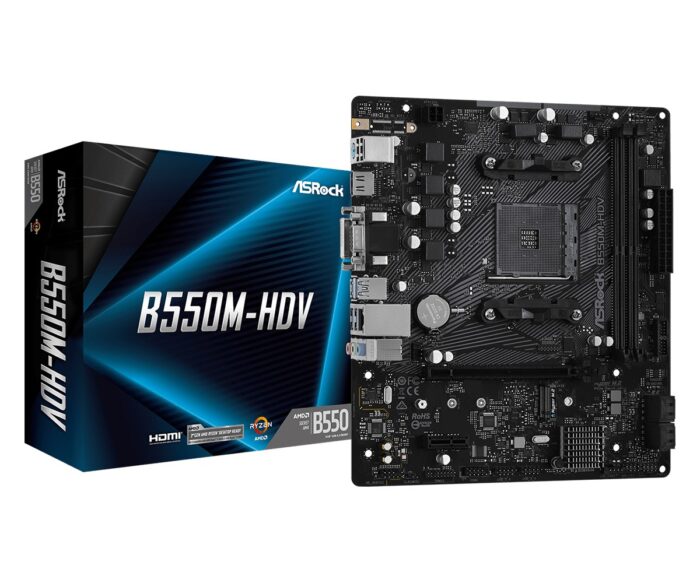

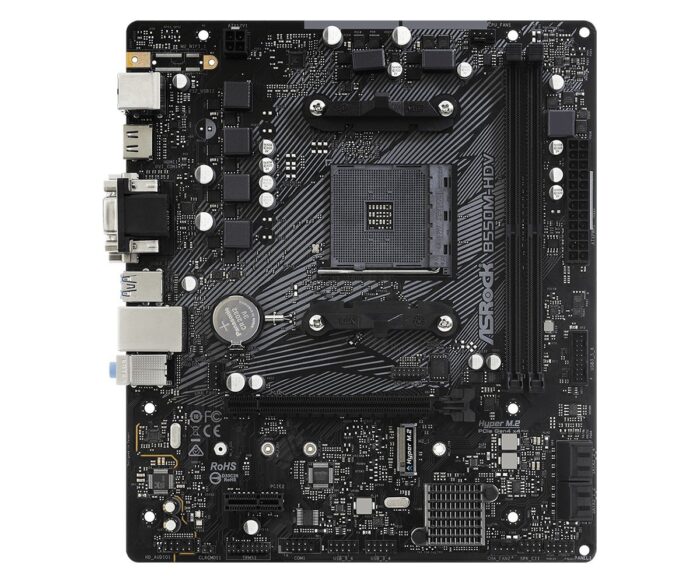

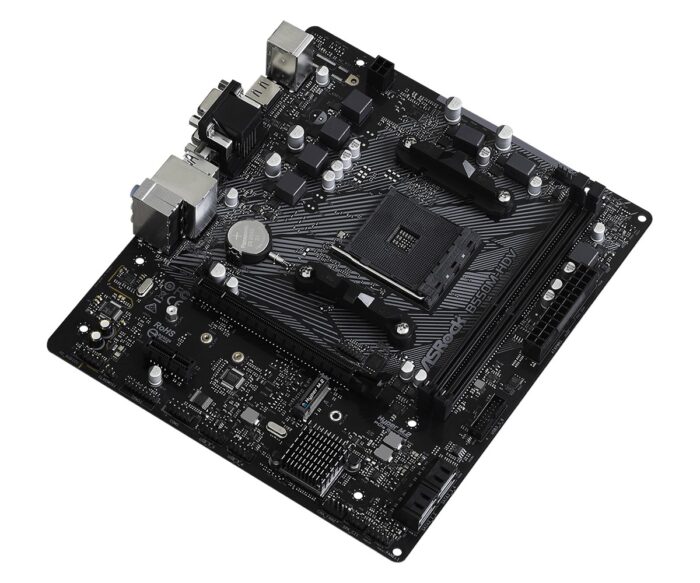

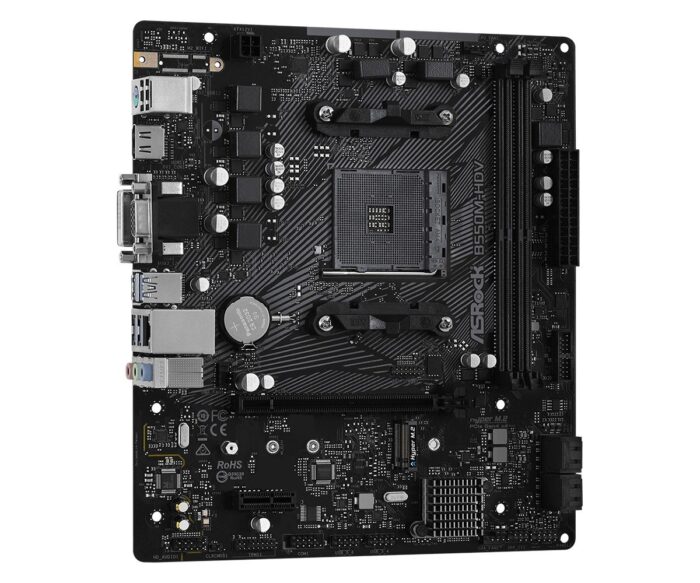

ASRock B550M-HDV Motherboard

The Asrock B550M-HDV motherboard is designed for use with AMD processors. It features a Socket AM4 and is compatible with the AMD Ryzen 3000 Series of processors. The motherboard supports DDR4-SDRAM memory, allowing for a maximum internal memory capacity of up to 64 GB through its DIMM memory slots. For storage, it supports both M.2 and SATA III drive interfaces. Integrated graphics are handled by the AMD Radeon Vega graphics card family. For networking, the motherboard includes a Gigabit Ethernet interface, powered by the Realtek RTL8111H LAN controller.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM4
show more


Compatible processor series
Compatible processor series
AMD Ryzen 3000 Series
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666 MHz
show more


Maximum internal memory
Maximum internal memory
64 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive interfaces
M.2, SATA III
show more

Graphics

On-board graphics card
On-board graphics card
Yes
show more


Graphics card family
AMD
show more


Graphics card
Radeon Vega
show more


HDCP
HDCP
Yes
show more


DirectX version
DirectX version
12.0
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
4
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
2
show more


Peripheral (Molex) power connectors (4-pin)
Peripheral (Molex) power connectors (4-pin)
1
show more


TPM connector
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DVI-D ports quantity
DVI-D ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Realtek RTL8111H
show more


Wake-on-LAN ready
Yes
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
AMD B550
show more


Audio chip
Realtek ALC887
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
230 mm
show more


Depth
Depth
201 mm
show more


Height
Height
70 mm
show more

Packaging content

Drivers included
Yes
show more

Other features

Weight
Weight
465 g
show more
