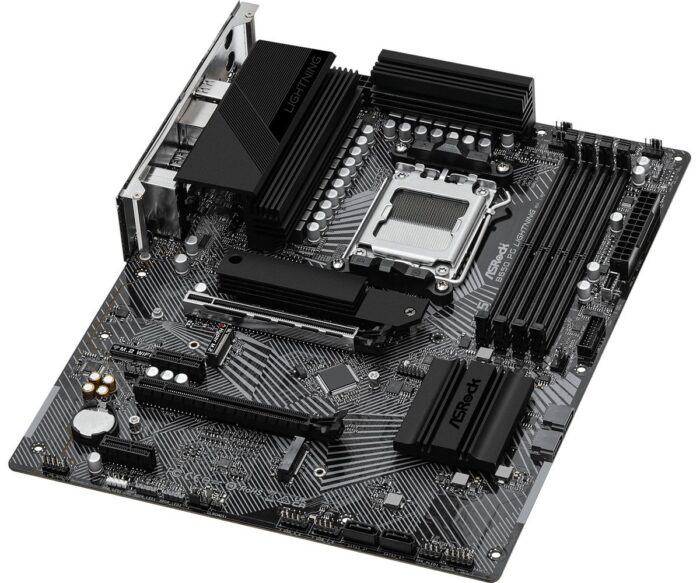

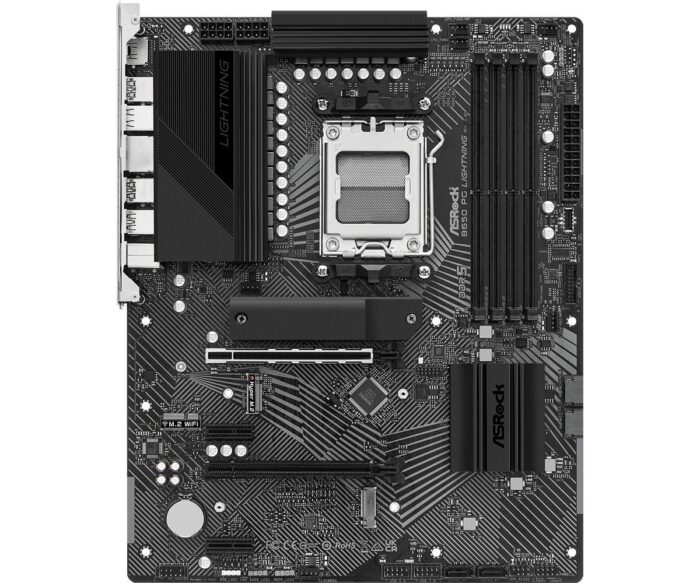

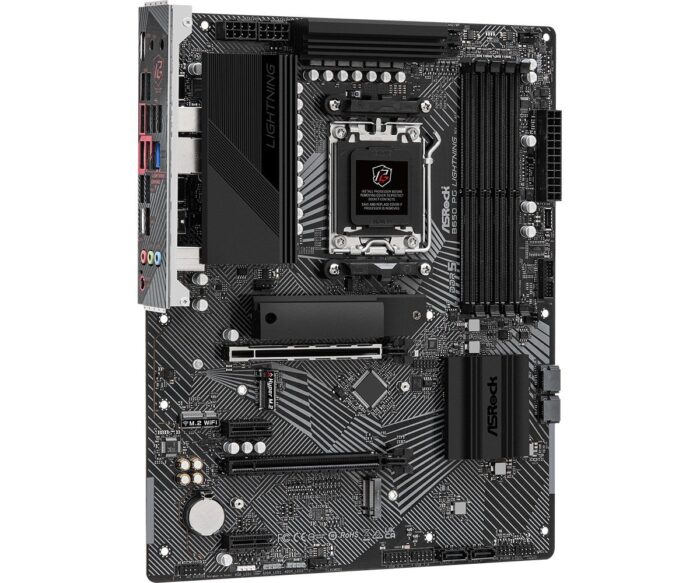

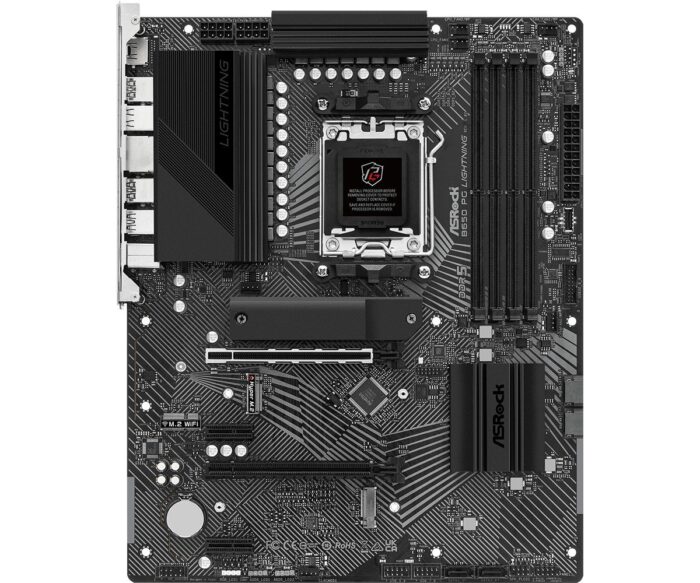

ASRock B650 PG LIGHTNING Motherboard

The Asrock B650 PG Lightning motherboard is designed for AMD processors and utilizes the Socket AM5 configuration. It supports DDR5-SDRAM memory types and can accommodate a maximum of 128 GB of internal memory through its DIMM slots. For storage, it supports both M.2 and SATA II interfaces and is compatible with HDD and SSD drive types, with RAID support for levels 0, 1, and 10. The motherboard belongs to the AMD graphics card family and features the AMD RDNA 2 graphics card. Networking capabilities include 2.5 Gigabit Ethernet with a Dragon RTL8125BG LAN controller, and it offers Wi-Fi connectivity with support for the Wi-Fi 6E (802.11ax) standard.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM5
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
6400,6600,6666,6800 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA II
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 10
show more

Graphics

On-board graphics card
On-board graphics card
Yes
show more


Graphics card family
AMD
show more


Graphics card
AMD RDNA 2
show more


HDCP
HDCP
Yes
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


EPS power connector (8-pin)
Yes
show more


TPM connector
Yes
show more


RGB LED pin header
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
4
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
show more


USB 3.2 Gen 2×2 Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


Line-in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
2.5 Gigabit Ethernet
show more


LAN controller
Dragon RTL8125BG
show more


Wi-Fi
Wi-Fi
Yes
show more


Top Wi-Fi standard
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
show more


Bluetooth
Bluetooth
Yes
show more

Features

Motherboard chipset
Motherboard chipset
AMD B650
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11 x64
show more

Expansion slots

PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
1
show more


PCI Express x16 (Gen 4.x) slots
1
show more


PCI Express x16 (Gen 5.x) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
256 Mbit
show more

Weight & dimensions

Width
Width
305 mm
show more


Depth
Depth
244 mm
show more

Packaging content

Cables included
SATA
show more
