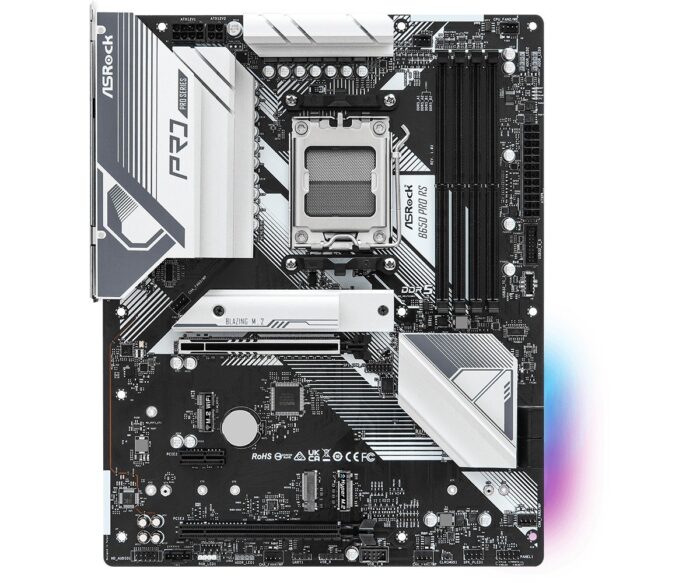

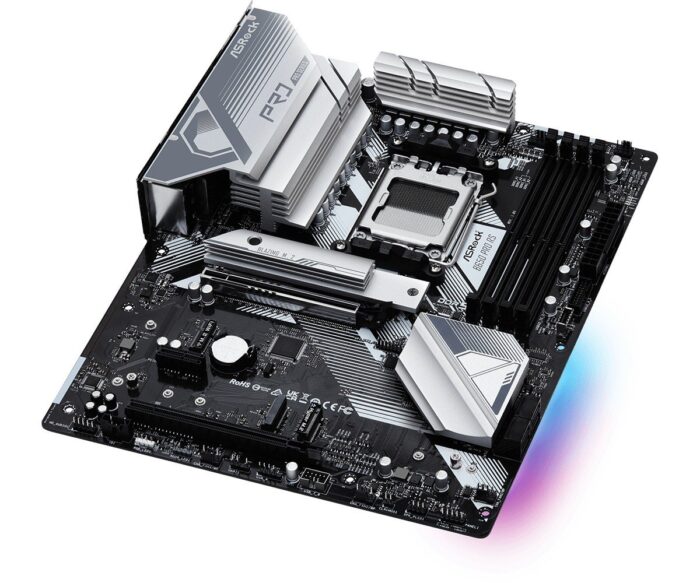

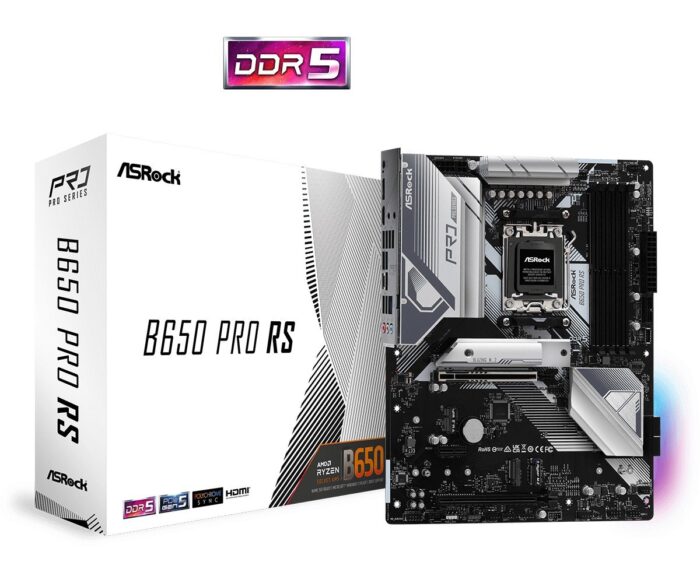

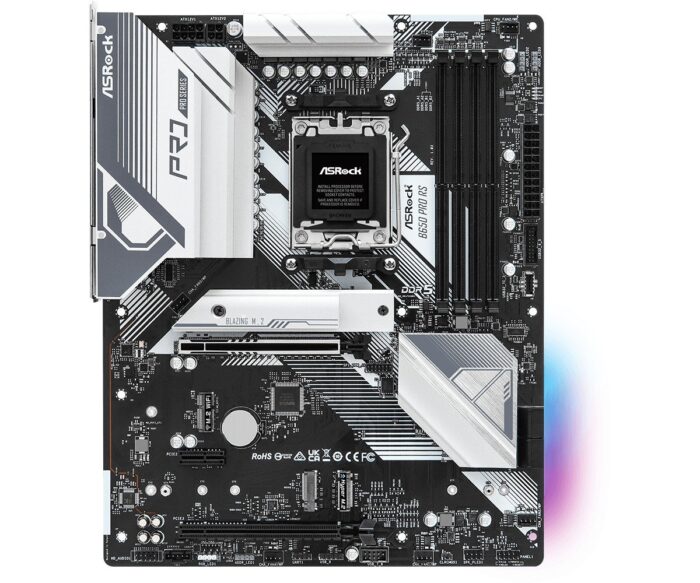

ASRock B650 PRO RS Motherboard

The Asrock B650 Pro RS is a high-performance motherboard designed for AMD processors. It supports the AMD Ryzen 7000 Series and is equipped with a Socket AM5 for easy processor installation. Memory compatibility includes DDR5-SDRAM with a maximum internal memory capacity of 128 GB, utilizing DIMM slot types. This motherboard accommodates both HDDs and SSDs with supported storage drive interfaces of M.2 and SATA III, and offers RAID levels 0, 1, and 10 for data redundancy and performance. For networking needs, it features a 2.5 Gigabit Ethernet interface and is powered by the Dragon RTL8125BG LAN controller. Built specifically for PCs, the motherboard has an ATX form factor and belongs to the AMD chipset family.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM5
show more


Compatible processor series
Compatible processor series
AMD Ryzen 7000 Series
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
7200 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 10
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
2
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Thunderbolt headers
1
show more


TPM connector
Yes
show more


RGB LED pin header
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
6
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


DisplayPort version
1.4
show more


Headphone outputs
Headphone outputs
1
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
2.5 Gigabit Ethernet
show more


LAN controller
Dragon RTL8125BG
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
AMD B650
show more


Audio chip
Realtek ALC897
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 Pro x64, Windows 11 x64
show more

Expansion slots

PCI Express x1 (Gen 4.x) slots
1
show more


PCI Express x16 (Gen 4.x) slots
1
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
1
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
256 Mbit
show more

Weight & dimensions

Width
Width
305 mm
show more


Depth
Depth
244 mm
show more
