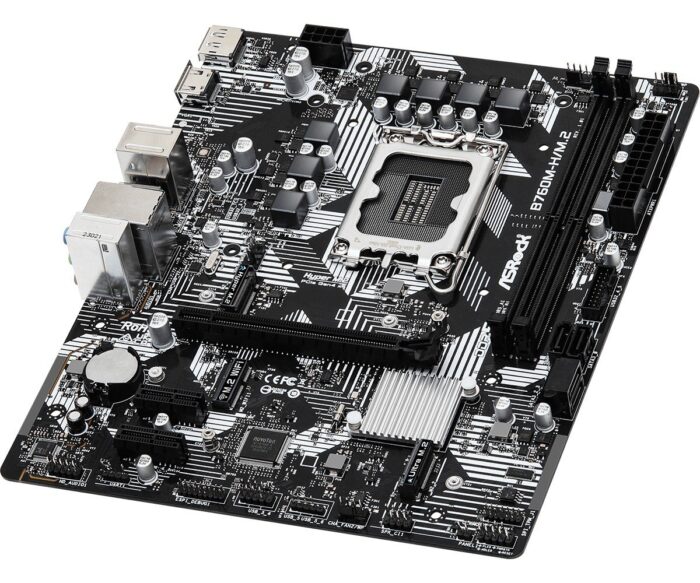

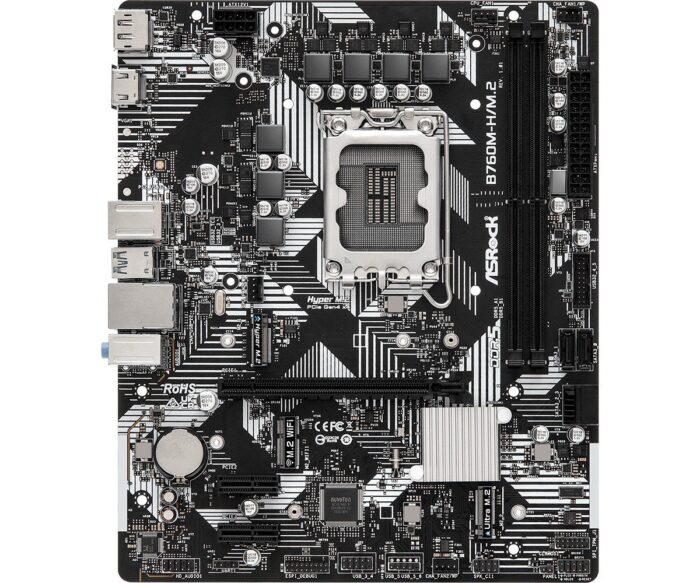

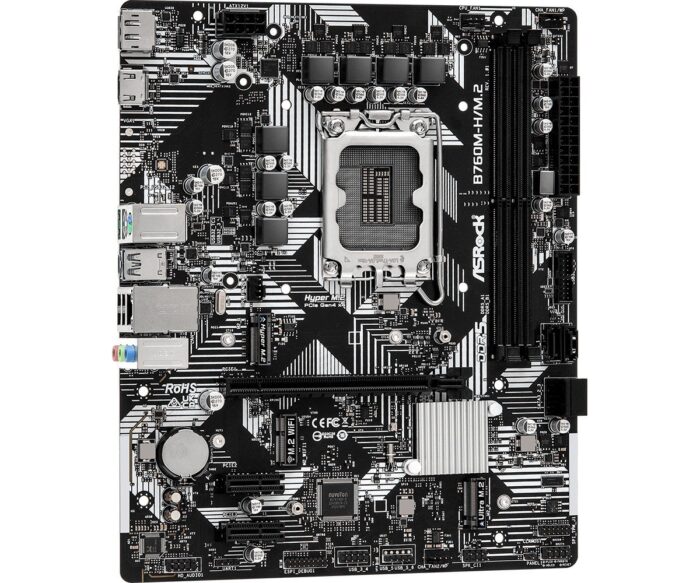

ASRock B760M-H/M.2 Motherboard

The Asrock B760M-H/M.2 is a motherboard designed for Intel processors, specifically compatible with the Intel Core i3, i5, i7, and i9 series, utilizing the LGA 1700 socket. It supports DDR5-SDRAM memory type and can accommodate a maximum internal memory of 96 GB through its DIMM slots. For storage, it offers interfaces for M.2 and SATA III drives, and it supports both HDD and SSD types, with RAID configurations available in levels 0, 1, 5, and 10. The motherboard is equipped with a Gigabit Ethernet interface, managed by the Realtek RTL8111H LAN controller. It is built for PCs and follows the micro ATX form factor, using an Intel chipset family.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1700
show more


Compatible processor series
Compatible processor series
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


ECC сompatibility
Non-ECC
show more


Maximum internal memory
Maximum internal memory
96 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


TPM connector
Yes
show more

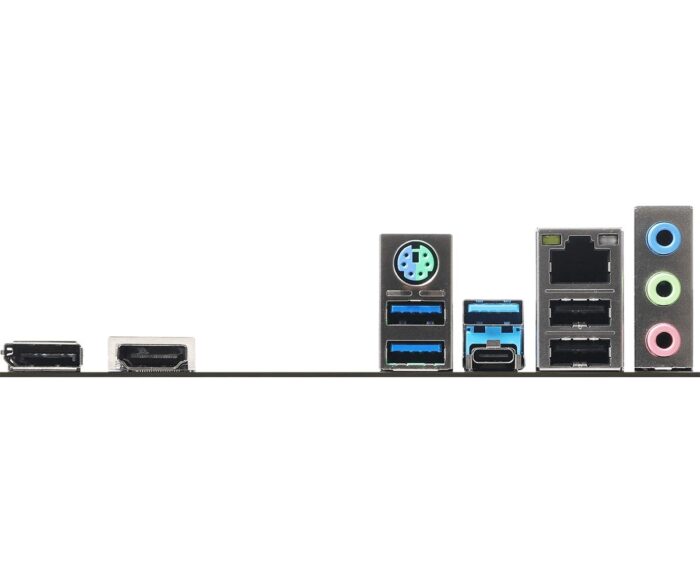

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


DisplayPort version
1.4
show more


Line-in
Yes
show more


Microphone in
Microphone in
Yes
show more


WiFi-AP antenna jack
2
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Realtek RTL8111H
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel B760
show more


Audio chip
Realtek ALC897
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11 x64
show more

Expansion slots

PCI Express x1 (Gen 3.x) slots
2
show more


PCI Express x16 (Gen 4.x) slots
1
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
128 Mbit
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
201 mm
show more
