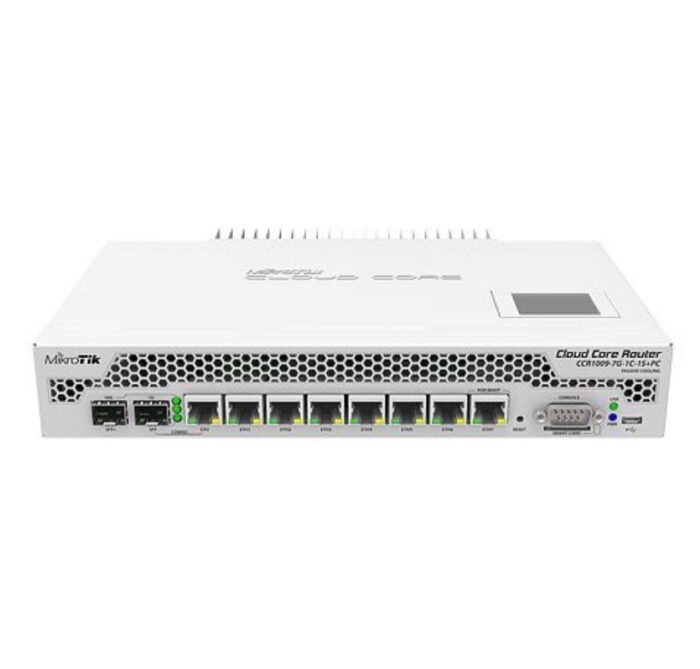

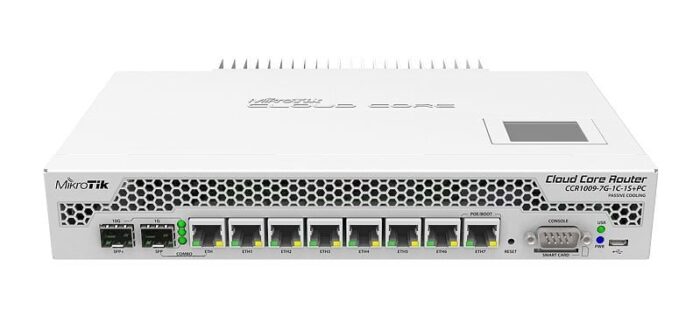

Mikrotik CCR1009-7G-1C-1S+PC Ethernet WAN Gigabit Ethernet SIM Card Slot White (CCR1009-7G-1C-1S+PC)

The Mikrotik CCR1009-7G-1C-1S+PC is a networking device featuring Gigabit Ethernet interfaces, supporting 10/100/1000Base-T(X) cabling technology. It offers Ethernet LAN data rates of 10, 100, and 1000 Mbit/s, ensuring versatile connectivity options. The device is powered by a Tilera TLR4-00980CH-10CE-A3b processor with a frequency of 1000 MHz, and it has an internal storage capacity of 0.128 GB. The product comes in a white color and is designed to fit in a 1U rack space. Typical power consumption is 33 W, and it can be powered via AC or PoE, with an AC input voltage range of 100 to 240 V. Its dimensions are 272 mm in width, 190 mm in depth, and 47 mm in height.

WAN connection

Ethernet WAN
Yes
show more


SIM card slot
SIM card slot
Yes
show more

Network

Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN
Ethernet LAN
Yes
show more


Cabling technology
Cabling technology
10/100/1000Base-T(X)
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Throughput
18 Gbit/s
show more

Management features

Web-based management
Web-based management
Yes
show more


Reset button
Yes
show more


Firmware upgradeable
Yes
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
7
show more


Installed SFP modules quantity
Installed SFP modules quantity
1
show more


Installed SFP+ modules quantity
Installed SFP+ modules quantity
1
show more


Smart Interface Card (SIC) slots quantity
1
show more


USB ports quantity
1
show more


RS-232 ports
RS-232 ports
1
show more


DC-in jack
DC-in jack
Yes
show more

Security

Firewall
Yes
show more

Features

Built-in processor
Built-in processor
Yes
show more


Processor model
Processor model
Tilera TLR4-00980CH-10CE-A3b
show more


Processor frequency
Processor frequency
1000 MHz
show more


Processor cores
Processor cores
9
show more


Internal storage capacity
Internal storage capacity
0.128 GB
show more


Internal memory
Internal memory
2000 MB
show more


Temperature monitoring
Yes
show more


Voltage monitoring
Yes
show more


Operating system installed
Operating system installed
RouterOS
show more

Design

Product colour
Product colour
White
show more


Rack mounting
Rack mounting
Yes
show more


Rack capacity
Rack capacity
1U
show more

Power

Power consumption (typical)
Power consumption (typical)
33 W
show more


Power source type
Power source type
AC, PoE
show more


AC input voltage
AC input voltage
100 – 240 V
show more


Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-20 – 60 °C
show more

Weight & dimensions

Width
Width
272 mm
show more


Depth
Depth
190 mm
show more


Height
Height
47 mm
show more

Logistics data

Harmonized System (HS) code
85176990
