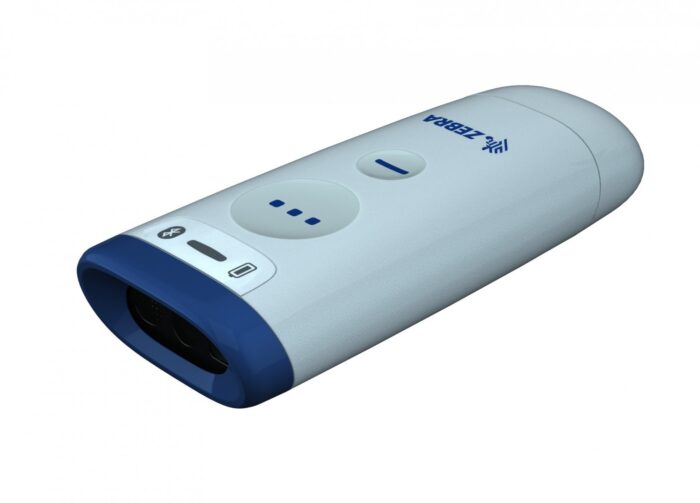

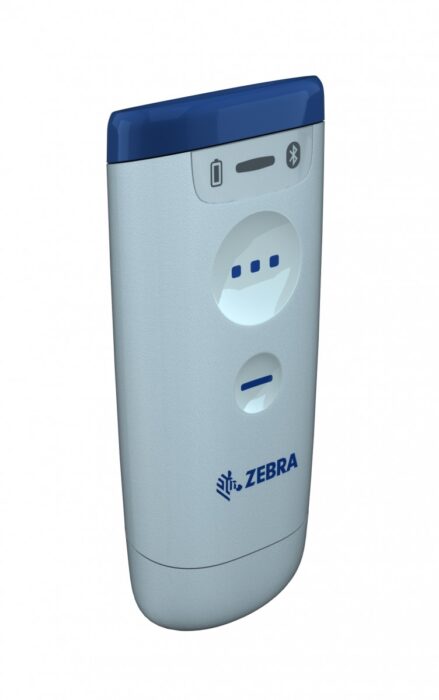

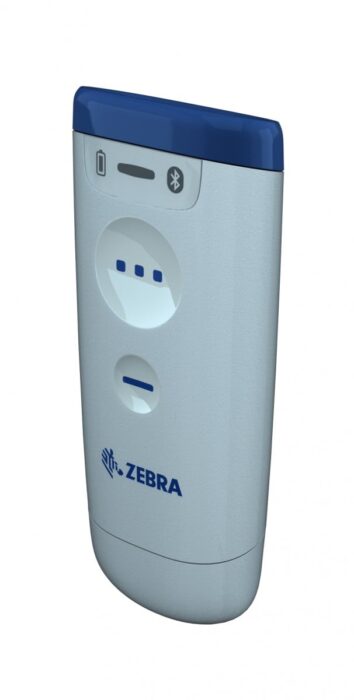

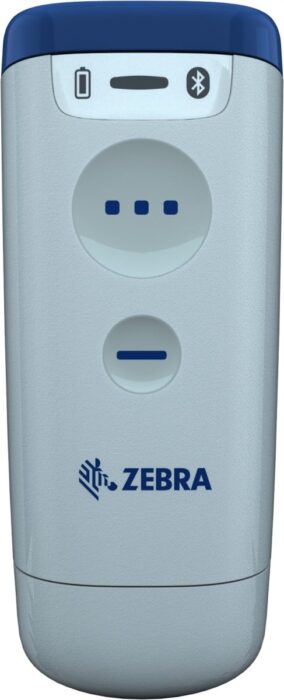

Zebra EVM CS6080 Cordless Companion Scanner – Inductive, Area Imager, Healthcare, FIPS, White with Vibration Motor

The Zebra CS60-HC is a handheld bar code reader that is capable of scanning both 1D and 2D bar codes. It utilizes an LED sensor for accurate and efficient scanning. This device features wireless connectivity technology and supports standard interfaces such as Bluetooth and USB, offering a wireless range of up to 100 meters. The bar code reader comes in a white color and boasts an international protection rating of IP65. It is FIPS 140-2 certified, ensuring compliance with stringent security standards. The power source options include AC, battery, DC, and USB, with a built-in lithium polymer (LiPo) battery providing the necessary power. The device is lightweight, weighing only 87 grams, and has dimensions of 46 mm in width and 109 mm in depth.

Scanning

Type
Type
Handheld bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
show more


Sensor type
Sensor type
LED
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C.
show more


Optical sensor resolution (W x H)
1280 x 960 pixels
show more


Light levels (direct sunlight)
0 – 108000 lx
show more


Wavelength
Wavelength
525 nm
show more


Tilt reading angle
-60 – 60°
show more


Pitch reading angle
-60 – 60°
show more


Yaw reading angle
0 – 360°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wireless
show more


Standard interfaces
Standard interfaces
Bluetooth, USB
show more


Wireless range
100 m
show more


Bluetooth Low Energy (BLE)
Yes
show more


Bluetooth version
Bluetooth version
5.0
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP65
show more


LED indicators
Yes
show more


Product colour
Product colour
White
show more


Certification
FIPS 140-2
show more

Power

Power source type
Power source type
AC, Battery, DC, USB
show more


Battery technology
Battery technology
Lithium Polymer (LiPo)
show more


Battery type
Battery type
Built-in battery
show more


Battery capacity
Battery capacity
735 mAh
show more


Number of reads per charge
13000
show more


Battery life
Battery life
18 h
show more


Charging time
Charging time
6 h
show more


Power consumption
400 mA
show more

Weight & dimensions

Width
Width
46 mm
show more


Depth
Depth
109 mm
show more


Height
Height
23 mm
show more


Weight
Weight
87 g
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more

Technical details

Compliance certificates
RoHS
show more

Logistics data

Harmonized System (HS) code
84716070
show more
