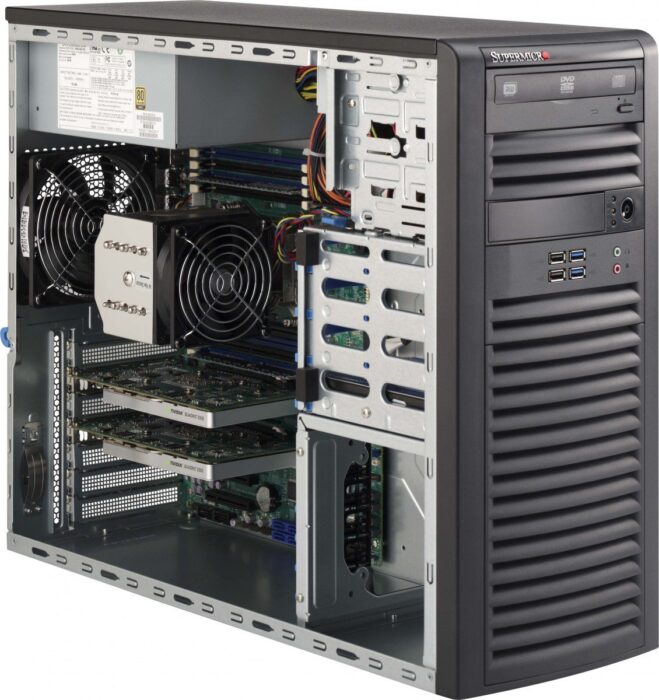

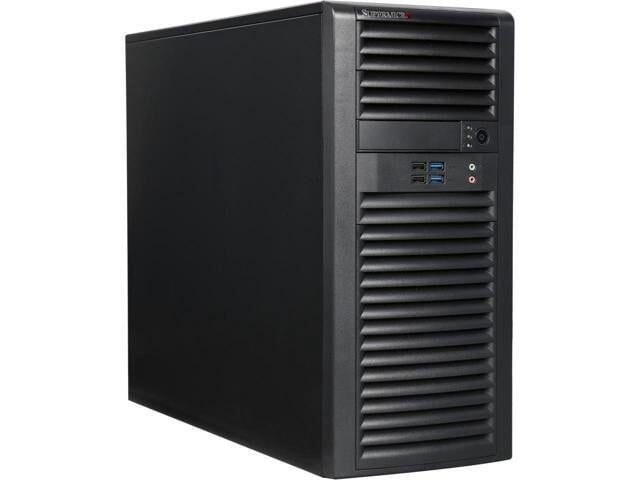

Supermicro 732D4-903B Mid-Tower 900W Black Workstation Case with 900W 80PLUS Gold Power Supply

The Supermicro 732D4-903B is a black mid-tower workstation case, ideal for server applications. It features a durable design and includes a powerful 900W 80PLUS Gold power supply, ensuring efficient energy use and reliable performance. The case supports a midi tower form factor and comes with a rear-located power supply that operates on an AC input voltage range of 100 to 240V. Designed with cooling efficiency in mind, the front of the case accommodates 120 mm diameter fans, while the rear comes with a pre-installed 120 mm fan. For storage, the case supports hard drive sizes of 3.5 inches and 5.25 inches. The dimensions of the case are 193 mm in width, 525 mm in depth, and 424 mm in height.

Design

Material
Material
Metal
show more


Form factor
Form factor
Midi Tower
show more


Type
Type
Server
show more


Product colour
Product colour
Black
show more


Supported motherboard form factors
Supported motherboard form factors
ATX, EATX, micro ATX
show more


Number of 5.25" bays
Number of 5.25
2
show more


Number of 3.5" bays
Number of 3.5
5
show more


Number of internal 3.5" bays
4
show more


Number of external 5.25" bays
2
show more


Number of expansion slots
7
show more


On/off button
Yes
show more


LED indicators
HDD, Network, Power, System
show more


Certification
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
show more

Power supply

Power supply included
Power supply included
Yes
show more


Power supply
Power supply
900 W
show more


Power supply location
Power supply location
Rear
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


80 PLUS certification
80 PLUS Gold
show more

Ports & interfaces

Audio input
Audio input
Yes
show more


Audio output
Audio output
Yes
show more


USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more

Cooling

Front fans diameters supported
120 mm
show more


Rear fans installed
1x 120 mm
show more

Storage

Supported HDD sizes
Supported HDD sizes
3.5,5.25"
show more


Rotatable HDD cage
Yes
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
5 – 35 °C
show more

Weight & dimensions

Width
Width
193 mm
show more


Depth
Depth
525 mm
show more


Height
Height
424 mm
show more


Weight
Weight
12.7 kg
show more


Power supply dimensions (WxDxH)
150 x 190 x 86 mm
show more

Packaging data

Package width
Package width
543 mm
show more


Package depth
Package depth
642 mm
show more


Package height
Package height
304 mm
show more


Package weight
Package weight
13.6 kg
show more

Logistics data

Harmonized System (HS) code
84733080
show more

Other features

Power efficiency
90%
show more


ATX Power connector (24-pin)
Yes
show more


Compatible products
Compatible products
X9SAE, X9SAE-V, X10SLQ, X10SL7-F, X10SLM+-LN4F, X10SLM+-F, X10SLH-F, X10SLM-F, X10SLL-F, X10SLL-S, X10SLL-SF, X10SLA-F, X10SLL+-F, X10SAE, C7Z87-OCE, X10SAT, X10SLQ-L, X11SSQ, X11SAE, X11SAE-F, X11SAT, X11SAT-F, C7Z170-OCE, C7Z170-SQ, X11SSQ-L, X11DAi-N, C7Z270-CG, C7Z270-PG, C7Z270-CG-L, C7Z370-CG-L, 5037A-i, 7038A-I
