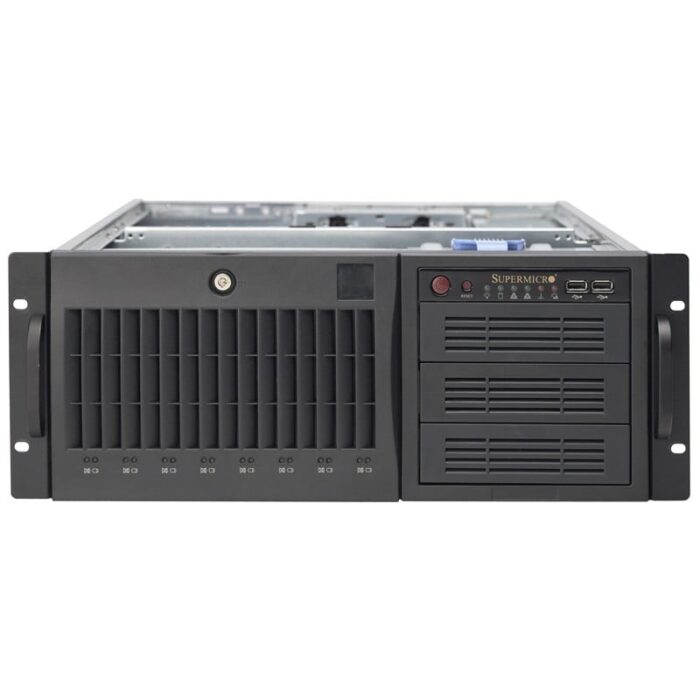

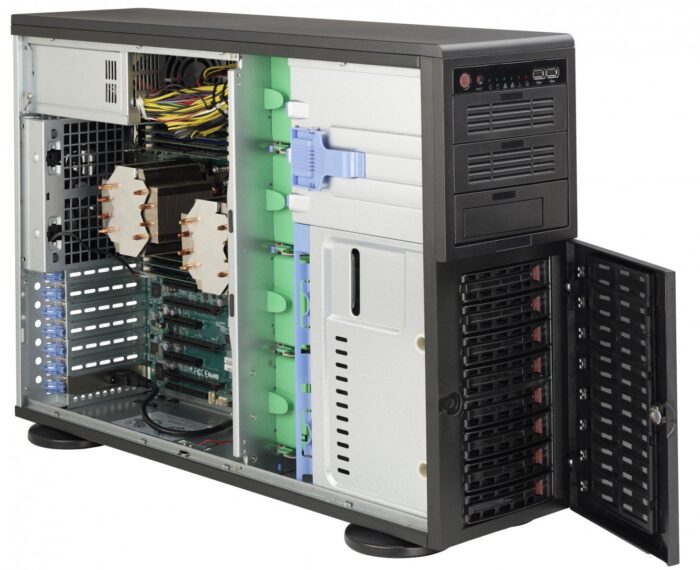

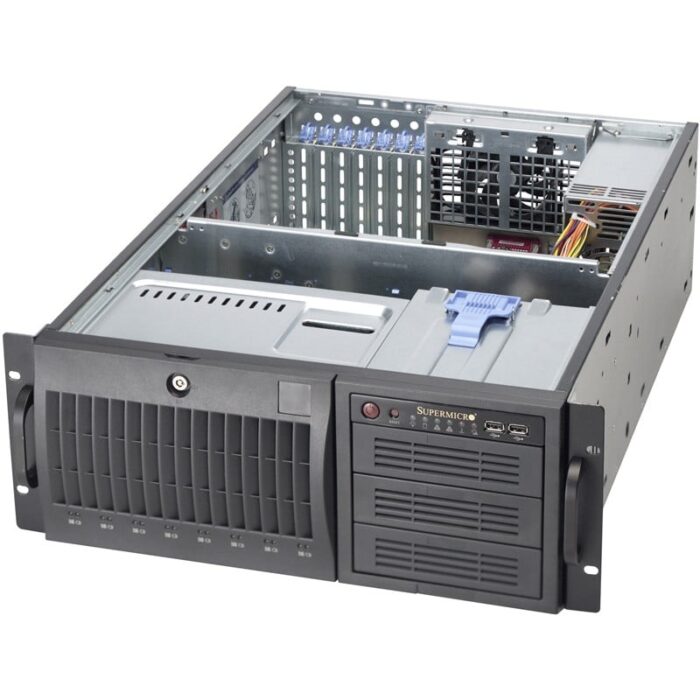

Supermicro 743AC-668B Full Tower Rack-Mountable Workstation / Server Case with 668W 80PLUS Platinum Power Supply

The Supermicro 743AC-668B is a versatile workstation and server case designed for full tower rack-mounting. It comes equipped with a 668W 80PLUS Platinum power supply, ensuring high efficiency. The case sports a sleek black finish and supports a PS2 power supply form factor. It operates on an AC input voltage range of 100 to 240 V. The fan speed can vary from 0 to 5000 RPM, allowing for flexible cooling options. This case is compatible with 3.5" hard drives. Its dimensions are 178 mm in width, 647 mm in depth, and 452 mm in height, making it a suitable choice for a variety of setups.

Design

Material
Material
Metal
show more


Form factor
Form factor
Full Tower
show more


Type
Type
Server
show more


Product colour
Product colour
Black
show more


Supported motherboard form factors
Supported motherboard form factors
ATX, EATX, micro ATX
show more


Number of 5.25" bays
Number of 5.25
3
show more


Number of 3.5" bays
Number of 3.5
8
show more


Number of external 5.25" bays
3
show more


Number of expansion slots
7
show more


Side window
Side window
No
show more


Reset button
Yes
show more


LED indicators
Fan fail, HDD, Network, Power
show more


Certification
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
show more

Power supply

Power supply included
Power supply included
Yes
show more


Power supply
Power supply
668 W
show more


Number of power supply units
1
show more


Supported power supply form factors
PS2
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


80 PLUS certification
80 PLUS Platinum
show more

Ports & interfaces

Audio input
Audio input
No
show more


Audio output
Audio output
No
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more

Cooling

Fan speed
0 – 5000 RPM
show more

Storage

Supported HDD sizes
Supported HDD sizes
3.5"
show more


Hot-swap
Yes
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
5 – 35 °C
show more

Weight & dimensions

Width
Width
178 mm
show more


Depth
Depth
647 mm
show more


Height
Height
452 mm
show more


Weight
Weight
23.6 kg
show more

Packaging data

Package width
Package width
625 mm
show more


Package depth
Package depth
795 mm
show more


Package height
Package height
356 mm
show more


Package weight
Package weight
24.9 kg
show more

Logistics data

Harmonized System (HS) code
84733080
show more

Other features

Power efficiency
92%
show more


Backplanes support
Yes
show more
