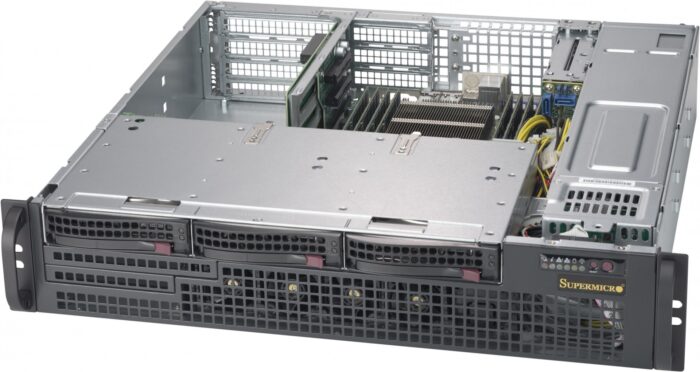

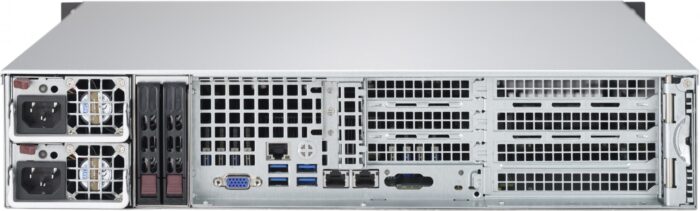

Supermicro CSE-825MBTQC-R802WB Computer Case Rack Black 800W

The Supermicro CSE-825MBTQC-R802WB is a server designed in a rack form factor, featuring a sleek black color. It is equipped with an 800 W power supply and supports an AC input voltage ranging from 100 to 240 V, with an AC input frequency of 50 to 60 Hz. This server is compatible with 3.5" hard disk drives. In terms of dimensions, the server measures 437 mm in width, 450 mm in depth, and 89 mm in height. The packaging dimensions are 594 mm in width, 826 mm in depth, and 251 mm in height.

Design

Form factor
Form factor
Rack
show more


Type
Type
Server
show more


Product colour
Product colour
Black
show more


Number of 3.5" bays
Number of 3.5
3
show more


Number of expansion slots
7
show more


Rack mounting
Rack mounting
Yes
show more


Rack capacity
Rack capacity
2U
show more


Side window
Side window
No
show more


On/off button
Yes
show more


Reset button
Yes
show more


LED indicators
HDD, LAN, Power, System
show more


Certification
BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL
show more

Power supply

Power supply included
Power supply included
Yes
show more


Power supply
Power supply
800 W
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


80 PLUS certification
80 PLUS Titanium
show more

Storage

Supported HDD sizes
Supported HDD sizes
3.5"
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
5 – 35 °C
show more

Weight & dimensions

Width
Width
437 mm
show more


Depth
Depth
450 mm
show more


Height
Height
89 mm
show more

Packaging data

Package width
Package width
594 mm
show more


Package depth
Package depth
826 mm
show more


Package height
Package height
251 mm
show more


Package weight
Package weight
19.1 kg
show more

Logistics data

Harmonized System (HS) code
84733080
show more

Other features

Power efficiency
96%
show more


Backplanes support
Yes
show more


Ventilation fan(s)
4 x 4cm PWM
show more
