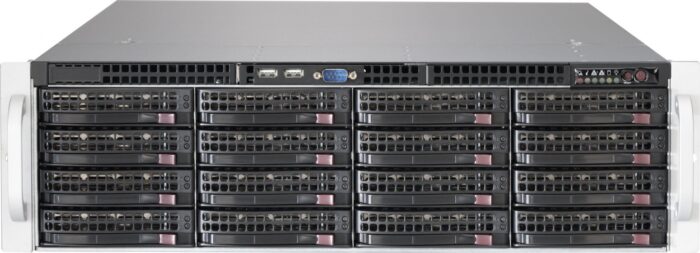

Supermicro SuperChassis 836BE2C-R1K03JBOD Disk Array Rack (3U) Black

The Supermicro SuperChassis 836BE2C-R1K03JBOD is designed for high-capacity storage needs. It features a total installed storage capacity of 0 TB and supports a storage drive interface of Serial ATA III. The chassis is compatible with 3.5" storage drives. This is a rack chassis with a 3U form factor, which can support up to 16 storage drives. It is compatible with both HDD and SSD storage drive types. The dimensions of the chassis are 437 mm in width, 647 mm in depth, and 132 mm in height, with a weight of 24.9 kg. The product is available in a sleek black color, offering a stylish and professional appearance.

Storage

Storage drives installed
Storage drives installed
No
show more


Installed storage drive type
Installed storage drive type
No
show more


Total installed storage capacity
0 TB
show more


Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Number of storage drives supported
Number of storage drives supported
16
show more


Storage drive interface
Storage drive interface
Serial ATA III
show more


Storage drive size
Storage drive size
3.5"
show more


RAID levels
RAID levels
JBOD
show more


Data transfer rate
Data transfer rate
12 Gbit/s
show more


Hot-swap drive bays
Hot-swap drive bays
Yes
show more

Ports & interfaces

Host ports
8
show more


Mini-SAS host port
Yes
show more

Design

Chassis type
Chassis type
Rack (3U)
show more


Product colour
Product colour
Black
show more


Number of fans
Number of fans
5 fan(s)
show more


Redundant fans support
Yes
show more


Certification
BSMI, CCC, CE/EMC, FCC A, UL/CB, UL/CUL
show more

Performance

Backplanes support
Yes
show more

Power

Power supply unit (PSU) capacity
1000 W
show more


Number of power supply units
2
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


AC input frequency
50 – 60 Hz
show more

Weight & dimensions

Width
Width
437 mm
show more


Depth
Depth
647 mm
show more


Height
Height
132 mm
show more


Weight
Weight
24.9 kg
show more

Packaging data

Package width
Package width
676 mm
show more


Package depth
Package depth
1013 mm
show more


Package height
Package height
330 mm
show more


Package weight
Package weight
36.3 kg
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
5 – 35 °C
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more

Logistics data

Harmonized System (HS) code
84717020
show more
