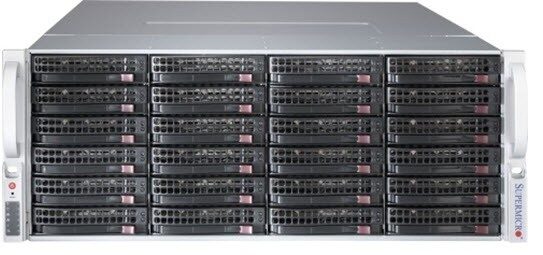

Supermicro SuperChassis 847BE1C4-R1K23LPB Rack Black 1200 W

The Supermicro SuperChassis 847BE1C4-R1K23LPB is a rack form factor server with a sleek black design. It features a robust power supply of 1200 watts and operates with an AC input voltage ranging from 100 to 240 volts with a frequency of 50 to 60 hertz. The chassis supports hard disk drive sizes of 2.5 inches and 3.5 inches. Its dimensions are 437 mm in width, 699 mm in depth, and 178 mm in height. The package dimensions are 691 mm in width, 1006 mm in depth, and 448 mm in height.

Design

Form factor
Form factor
Rack
show more


Type
Type
Server
show more


Product colour
Product colour
Black
show more


Supported motherboard form factors
Supported motherboard form factors
ATX, EATX
show more


Number of 3.5" bays
Number of 3.5
36
show more


Number of expansion slots
7
show more


Rack mounting
Rack mounting
Yes
show more


Rack capacity
Rack capacity
4U
show more


Side window
Side window
No
show more


On/off button
Yes
show more


Reset button
Yes
show more


LED indicators
Fan fail, HDD, LAN, Power
show more


Certification
BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
show more

Power supply

Power supply included
Power supply included
Yes
show more


Power supply
Power supply
1200 W
show more


Number of power supply units
1
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


80 PLUS certification
80 PLUS Titanium
show more

Ports & interfaces

Audio input
Audio input
No
show more


Audio output
Audio output
No
show more

Storage

Supported HDD sizes
Supported HDD sizes
2.5,3.5"
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
5 – 35 °C
show more

Weight & dimensions

Width
Width
437 mm
show more


Depth
Depth
699 mm
show more


Height
Height
178 mm
show more


Power supply dimensions (WxDxH)
76 x 336 x 40 mm
show more

Packaging data

Package width
Package width
691 mm
show more


Package depth
Package depth
1006 mm
show more


Package height
Package height
448 mm
show more


Package weight
Package weight
41.3 kg
show more

Logistics data

Harmonized System (HS) code
84733080
show more

Other features

Backplanes support
Yes
