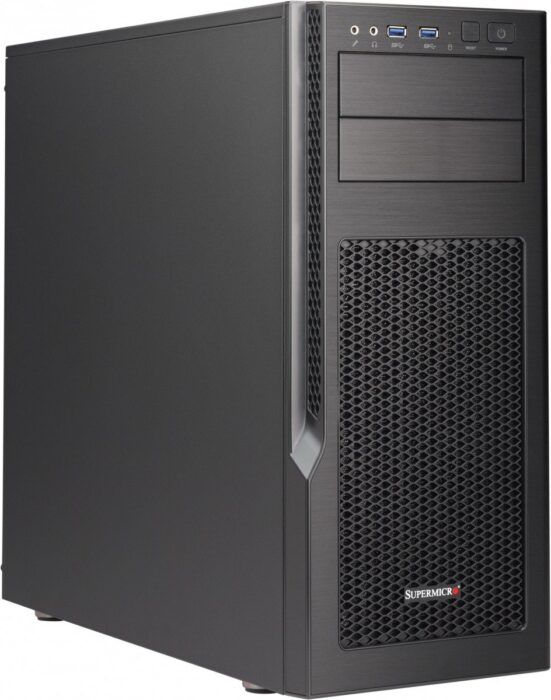

Supermicro SuperChassis GS5A-754K Midi Tower Black, Grey 750 W

Introducing the Supermicro SuperChassis GS5A-754K, designed in a sleek black and grey finish. This server chassis adopts the Midi Tower form factor, providing a compact yet spacious environment for your server needs. It features a 750W power supply positioned at the bottom and is compatible with PS2 form factors. Equipped to handle high cooling requirements, this chassis includes two 120 mm front fans and one 120 mm rear fan. It supports HDD sizes of 2.5 inches, 3.5 inches, and 5.25 inches, offering versatility in storage options. The chassis measures 200 mm in width, 493 mm in depth, and 460 mm in height, making it a well-suited choice for various server applications.

Design

Material
Material
Aluminium
show more


Form factor
Form factor
Midi Tower
show more


Type
Type
Server
show more


Product colour
Product colour
Black, Grey
show more


Supported motherboard form factors
Supported motherboard form factors
ATX, micro ATX
show more


Number of 5.25" bays
Number of 5.25
2
show more


Number of 3.5" bays
Number of 3.5
6
show more


Number of 2.5" bays
4
show more


Number of expansion slots
7
show more


Side window
Side window
No
show more


Anti-dust filter
Yes
show more


Cable management
Cable management
Yes
show more


Reset button
Yes
show more


On/off button
Yes
show more


LED indicators
HDD, Power
show more


Certification
BSMI
CCC
FCC class B
UL/CUL
show more

Power supply

Power supply included
Power supply included
Yes
show more


Power supply
Power supply
750 W
show more


Number of power supply units
1
show more


Power supply location
Power supply location
Bottom
show more


Supported power supply form factors
PS2
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


80 PLUS certification
80 PLUS Gold
show more

Ports & interfaces

Audio input
Audio input
Yes
show more


Audio output
Audio output
Yes
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more

Cooling

Front fans installed
2x 120 mm
show more


Rear fans installed
1x 120 mm
show more

Storage

Supported HDD sizes
Supported HDD sizes
2.5,3.5,5.25"
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
5 – 35 °C
show more

Weight & dimensions

Width
Width
200 mm
show more


Depth
Depth
493 mm
show more


Height
Height
460 mm
show more


Weight
Weight
9 kg
show more


Power supply dimensions (WxDxH)
150 x 140 x 86 mm
show more

Packaging data

Package width
Package width
361 mm
show more


Package depth
Package depth
610 mm
show more


Package height
Package height
632 mm
show more

Other features

ATX Power connector (24-pin)
Yes
show more
